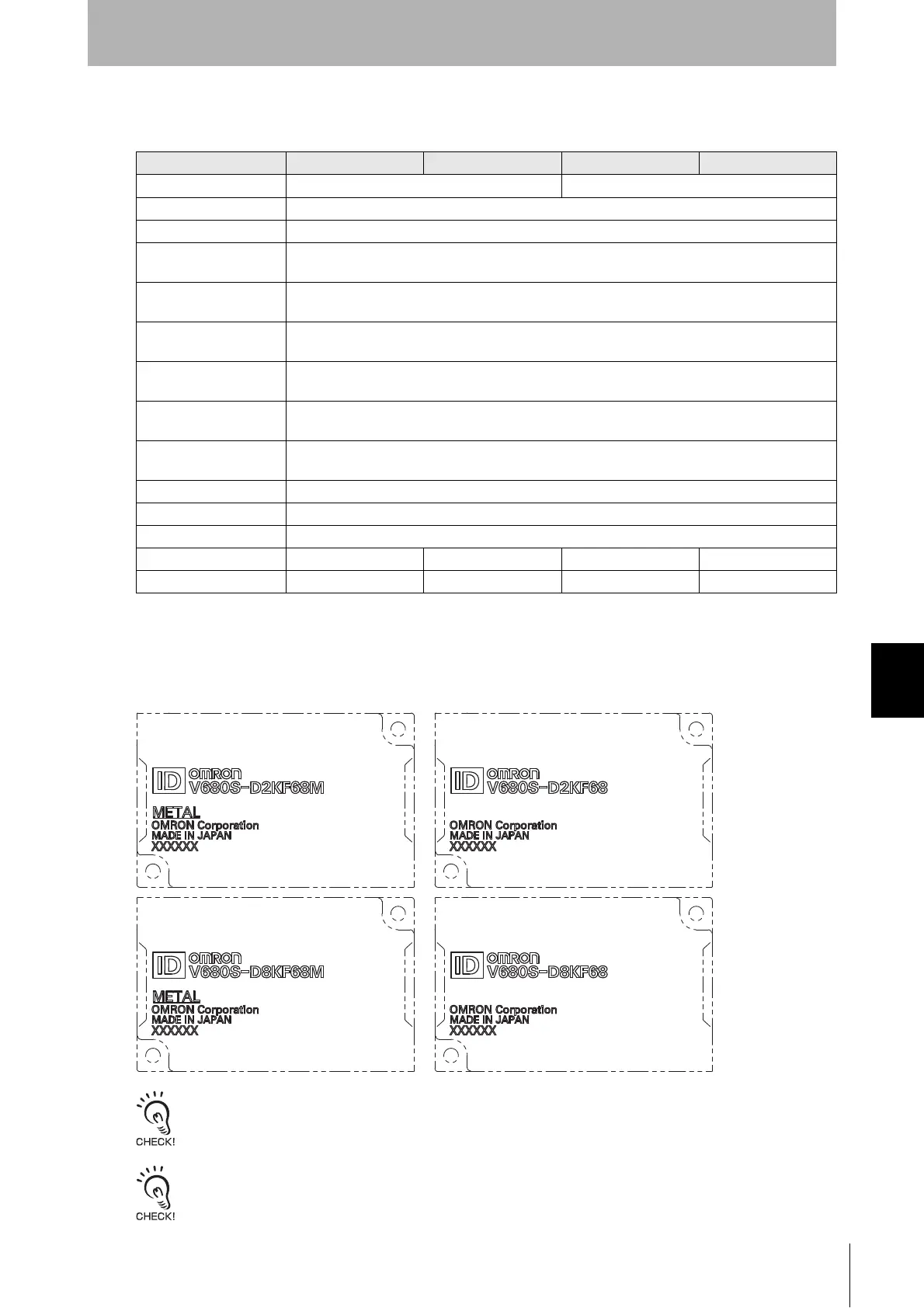

 V680S-D2KF68/-D2KF68M/-D8KF68/-D8KF68M
 General Specifications
The V680S-D2KF68M/-D8KF68M is designed to be mounted directly to metal. The V680S-D2KF68/-
D2KF68M/-D8KF68 and V680S-D8KF68M markings are shown in the following diagrams.
The side with the markings is the communications surface. Mount the RF Tag with this side facing the Antenna.
When using a V680S-D8KF68/-D8KF68M, to use the FL Remote ID production after October 2014.
Item Model V680S-D2KF68 V680S-D2KF68M V680S-D8KF68 V680S-D8KF68M
Memory capacity 2,000 bytes (user area) 8,192 bytes (user area)
Memory type FRAM
Data Retention 10 years after writing (85C or less)
Write Endurance One trillion times per block (85C or less)
Access frequency
See Note 1.
: One trillion times
Ambient operating
temperature
20 to 85C (with no icing)
Ambient storage
temperature
40 to 125C (with no icing)
Ambient operating
humidity
35% to 85%
Degree of protection IP68 (IEC 60529:2001), Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1)
See Note 2.
IPX9K (DIN 40 050)
Vibration resistance 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s
2
, 10 sweeps each in X, Y, and Z
directions for 11 minutes each
Shock resistance 500 m/s
2
, 3 times each in X, Y, and Z directions (Total: 18 times)
Dimensions 86  54  10 mm
Materials Case: PPS resin
Weight Approx. 44 g Approx. 46 g Approx. 44 g Approx. 46 g
Metal countermeasures None Yes None Yes
Note 1. The number of accesses is the total number of reads and writes.
2. Oil resistance has been tested using a specific oil as defined in the OMRON test method.
 V680S-D2KF68M/-D8KF68M
 V680S-D2KF68/-D8KF68
