140
SECTION 7
Reference Data
RFID System
User's Manual
SECTION 7
Appendices
V680-HS63

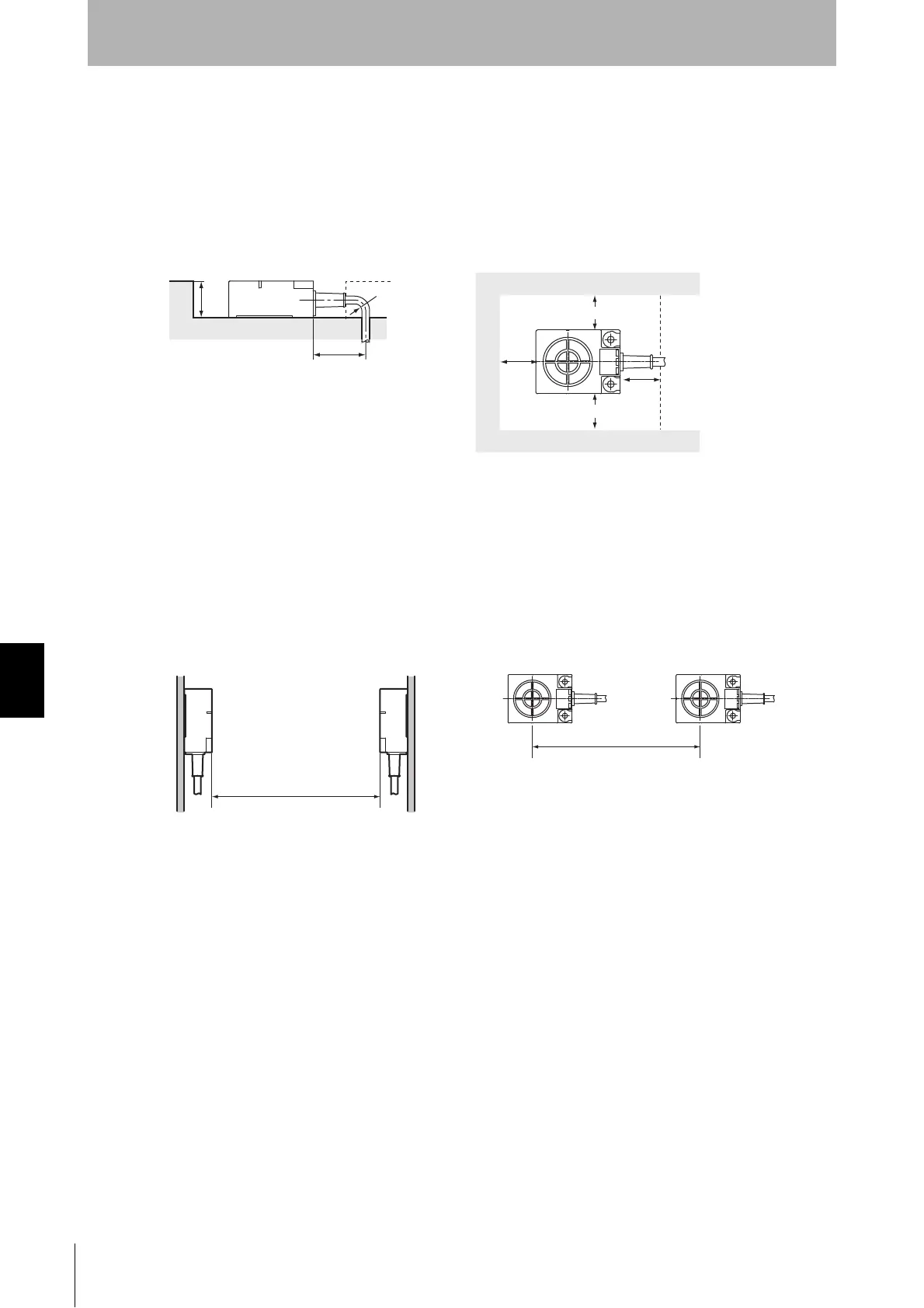

Effect of Surrounding Metals on the Antenna (Reference)
In addition to surface mounting, it is also possible to embed the V680-HS63 in a metallic material to
protect it from being struck by other objects. To prevent malfunctioning, allow a space of at least 30 mm
between the Antenna and the sides of the metallic material. If the space is less than 30 mm, the read/
write distance will be greatly diminished. In addition, the height of metallic material must not exceed
that of the Antenna.
Note 1: Do not bend the cable into a curve tighter than 22 mm in radius.
2: The communications range will be reduced significantly if the Antenna is installed closer than
30 mm to metal surfaces.
Mutual Interference between Antennas (Reference)
To prevent malfunctioning due to mutual interference when using more than one Antenna, leave
sufficient space between them as shown in the following diagrams.
² Installing the Antennas Facing Each Other ² Installing the Antennas in Parallel
60 mm min.
30 mm min.
30 mm
min.
30 mm min.
30 mm min.
Metallic material
Metallic material
R22 min.
23 mm
max.
270 mm min.
To Next Page
