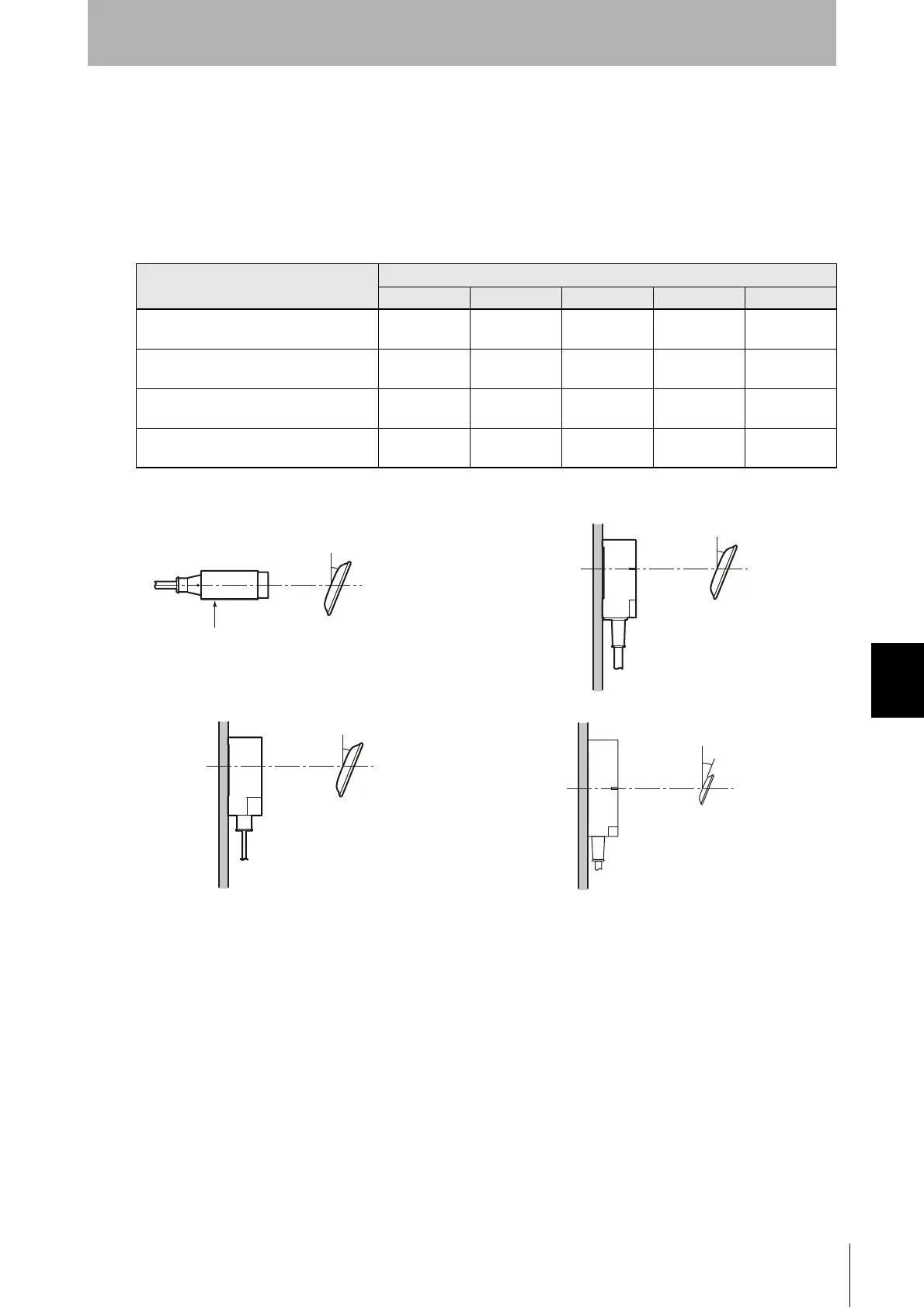

Influence of RF Tag Angle (Reference)
Install Antennas and RF Tags as close to parallel to each other as possible.
Communications are possible even when an Antenna and an RF Tag are mounted at an angle, but the
communications range will be shortened. The relation between the angle and the communications
range is shown below.
Reduction in Communications Range for V680-D1KP66T-SP Angle
Measurement Conditions
RF Tag angle ()
0 10 20 30 40
V680-HS52 and V680-D1KP66T-SP
0% 1% 2% 4% 7%
V680-HS63 and V680-D1KP66T-SP
0% 2% 3% 5% 9%
V680-HS63-SP and V680-D1KP66T-SP
0% 2% 4% 7% 12%
V680-HS65 and V680-D1KP66T-SP
0% 1% 3% 6% 11%
V680-HS52 and V680-D1KP66T-SP V680-HS63 and V680-D1KP66T-SP
V680-HS63-SP and V680-D1KP66T-SP V680-HS65 and V680-D1KP66T-SP
Antenna
RF Tag
θ
Non-Metallic
material
Non-Metallic
material
Antenna
RF Tag
θ
Antenna
RF Tag
θ
Metallic
material
