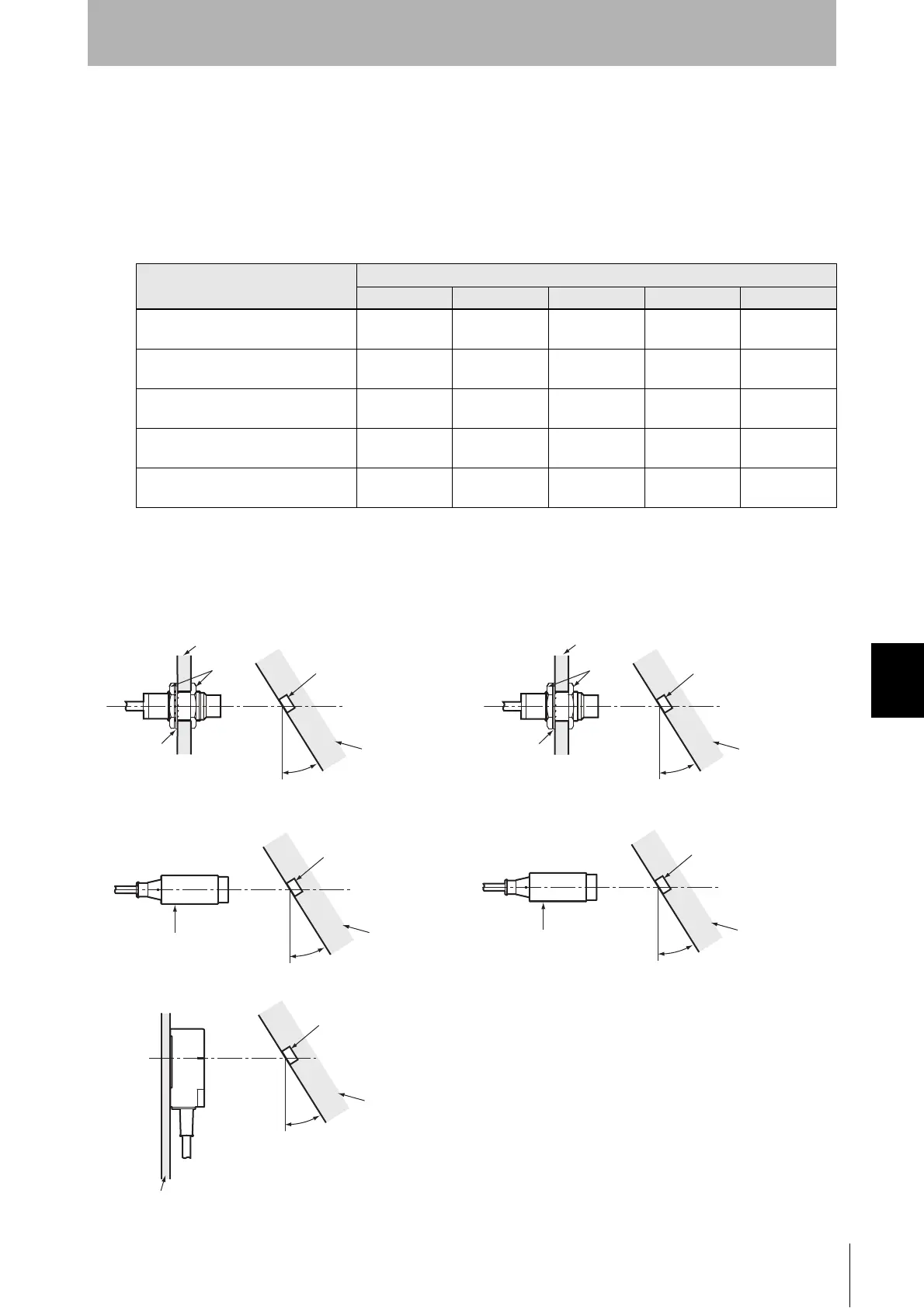

 Influence of RF Tag Angle (Reference)
Install Antennas and RF Tags as close to parallel to each other as possible.
Communications are possible even when an Antenna and an RF Tag are mounted at an angle, but the
communications range will be shortened. The relation between the angle and the communications
range is shown below.
Reduction in Communications Range for V680-D2KF52M Angle
Measurement Conditions
RF Tag angle ()
0 10 20 30 40
V680-HS51 and V680-D2KF52M
0% 2% 6% -22%
V680-HS51 and V680-D2KF52M
(Metal on back: Steel)
0% 0% 0% 7% 30%
V680-HS52 and V680-D2KF52M
0% 0% 0% 2% 5%
V680-HS52 and V680-D2KF52M
(Metal on back: Steel)
0% 2% 7% --- ---
V680-HS63 and V680-D2KF52M
0% 0% 1% 4% 9%
---: Measurement is not possible because Antenna and RF Tag would strike each other.
 V680-HS51 and V680-D2KF52M  V680-HS51 and V680-D2KF52M
(Metal on back: Steel)
 V680-HS52 and V680-D2KF52M  V680-HS52 and V680-D2KF52M
(Metal on back: Steel)
 V680-HS63 and V680-D2KF52M
RF Tag
Non-metallic
material
Antenna
Steel
Nuts
Toothed
washer
θ
RF Tag
Non-metallic
material
Antenna
Steel
Nuts
Toothed
washer
θ
RF Tag
Non-metallic
material
Antenna
θ
RF Tag
Steel
Antenna
θ
RF Tag
Non-metallic
material
θ
Antenna
