Omron V680-HS63 - Page 160

158
SECTION 7
Reference Data
RFID System
User's Manual
SECTION 7
Appendices
 V680-D8KF67M

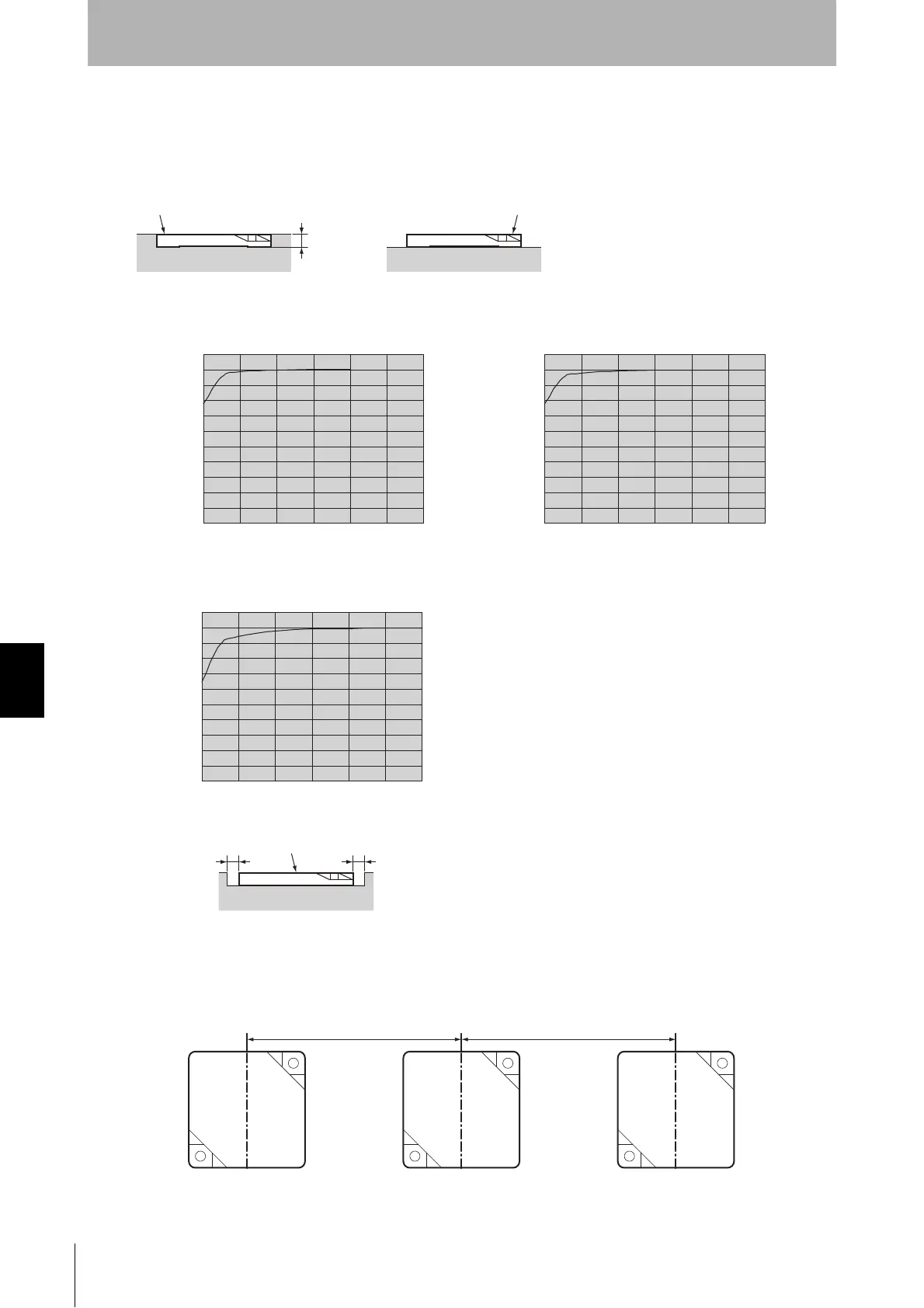

 Effect of Surrounding Metals (Reference)
The V680-D8KF67M can be surface-mounted or it can be embedded in metal. If it is embedded in
metal, the height of the metal casing must not exceed that of the RF Tag.
 Mutual Interference with RF Tags (Reference)
To prevent malfunctioning due to mutual interference when using more than one RF Tag, leave
sufficient space between them as shown in the following diagram.
● V680-HS52 and V680-D8KF67M ● V680-HS63 and V680-D8KF67M
● V680-HS65 and V680-D8KF67M
Embedded
RF Tag
Surface-mounted
Metallic material
Metallic material
4.5 mm max.
RF Tag
Distance to metal (x)
10
20
30
40
50
60
70
80
90
100
(%)
Communications range (Distance without metal is 100%.)
0 10 20 30 40
(mm)
50
Distance to metal
(
x
)
10
20
30
40
50
60
70
80
90
100
(
%
)
Communications range (Distance without metal is 100%.)
0 10 20 30 40
(mm)
50
Distance to metal
(
x
)
10
20
30
40
50
60
70
80
90
100
(
%
)
Communications range (Distance without metal is 100%.)
0 10 20 30 40
(mm)
50
Metallic material
RF Tag
X X
120 mm min.
120 mm min.
