40
SECTION 2
Installing RF Tags
RFID System
User's Manual
SECTION 2
Installation, Connections, and Wiring

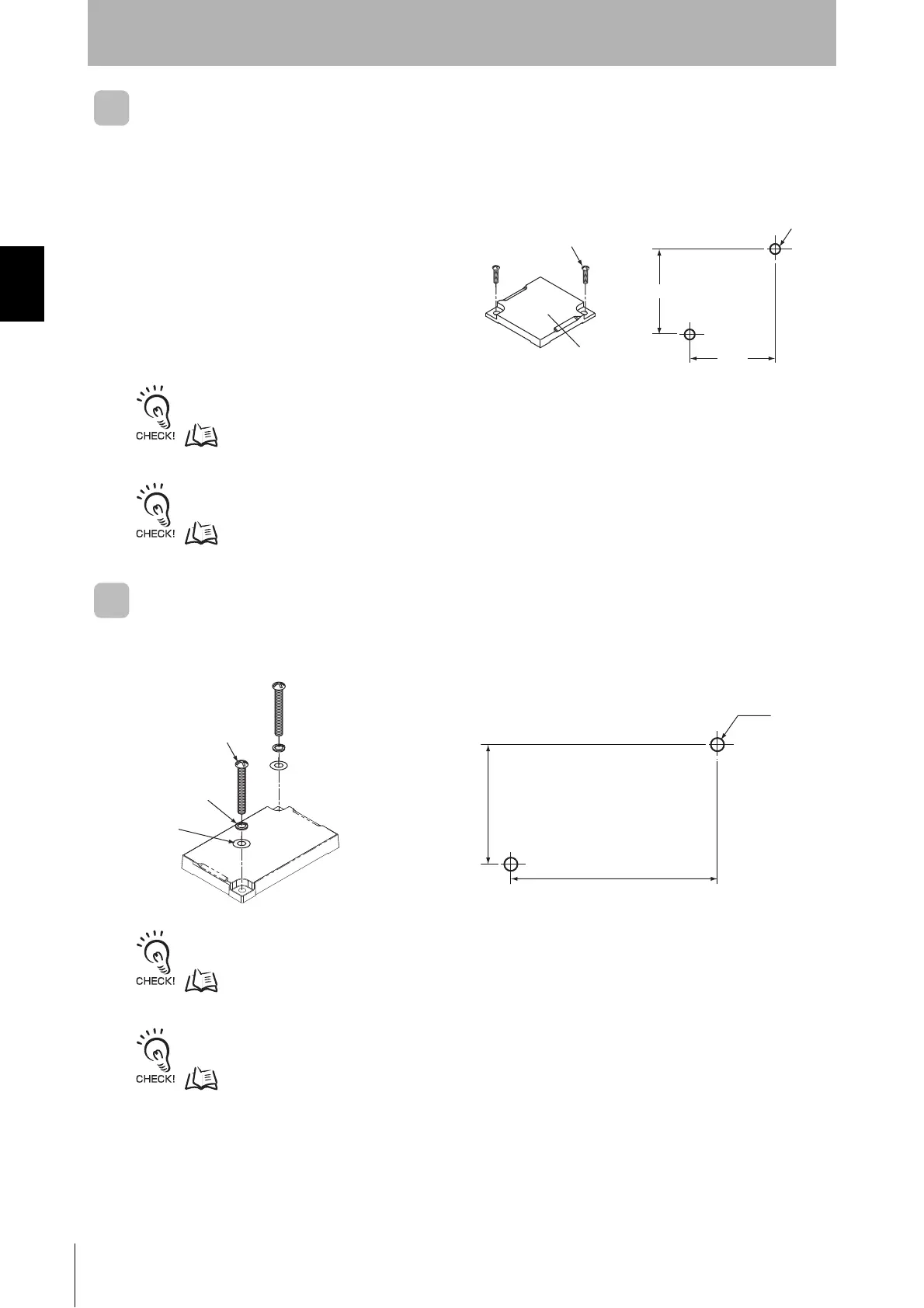

V680S-D8KF67/-D8KF67M
RF Tag Installation
Secure the RF Tag with M3 screws. Tighten the
screws to a torque of 0.6 N·m.
Refer to Effect of Surrounding Metals (Reference) in Section 7 Appendices for information on the effect of metal behind
the V680S-D8KF67M.
p.175
Refer to Effect of Metal on Back of RF Tags (Reference) in Section 7 Appendices for information on the effect of metal
behind the V680S-D8KF67.
p.173
V680S-D8KF68/-D8KF68M
RF Tag Installation
Secure the RF Tag with M4 screws. Tighten the screws to a torque of 0.7 to 1.2 N·m.
Refer to Effect of Surrounding Metals (Reference) in Section 7 Appendices for information on the effect of metal behind
the V680S-D8KF68M.
p.180
Refer to Effect of Metal on Back of RF Tags (Reference) in Section 7 Appendices for information on the effect of metal
behind the V680S-D8KF68.
p.177
Two, M3
Mounting Hole Dimensions
Marked
side
32
±0.2
32
±0.2
M3 screw
Two, M4
Flat
washer
Spring
washer
M4 screw
44
76
To Next Page
