RF Tag Service Life Warning Management (EEPROM type)
SECTION 4
Functions

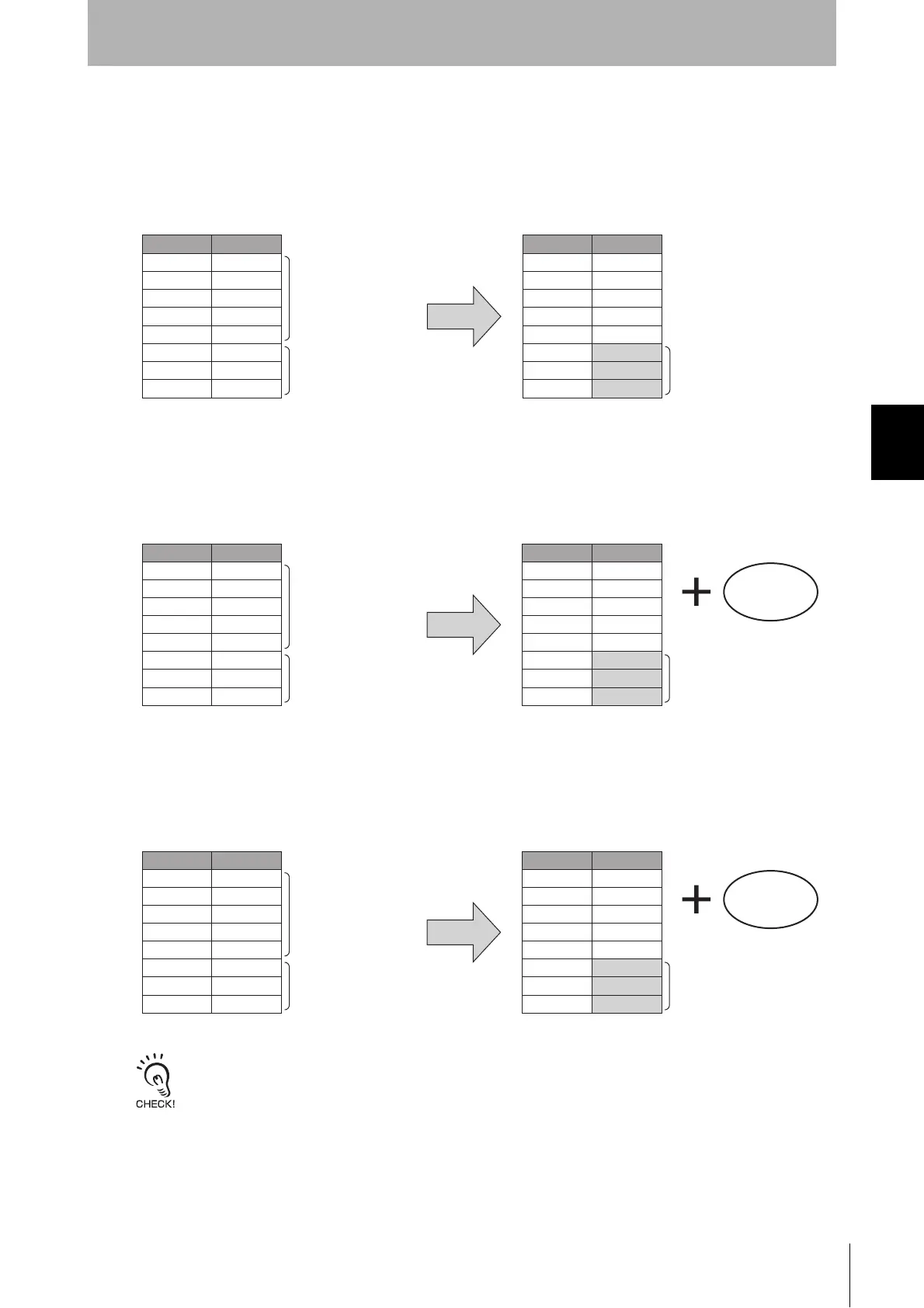

■ Examples of Area for RF Tag Service Life Warning Management
 If the Number of Overwrites Is 0 (i.e., If the Number of Overwrites Is Initialized):
Data will be written to the RF Tag the next time that DATA WRITE or DATA FILL is performed. A service
life warning will not be output. The number of overwrites will change to 1.
 If the Number of Overwrites Is 99,999:
Data will be written to the RF Tag the next time that DATA WRITE or DATA FILL is performed. Also, a
service life warning will be output. The number of overwrites will change to 100,000.
 If the Number of Overwrites Is 100,000:
Data will be written to the RF Tag the next time that DATA WRITE or DATA FILL is performed. Also, a
service life warning will be output. The number of overwrites will not change.
To read or write to the area for RF Tag service life warning management, enable RF Tag service life warning manage-
ment or use an ID Controller, handheld reader/writer, or a controller made by another company.
Address
03E0 hex
03E1 hex
03E2 hex
03E3 hex
03E4 hex
03E5 hex
03E6 hex
03E7 hex
Data
00 hex
00 hex
00 hex
00 hex
00 hex
00 hex
00 hex
00 hex
Address
03E0 hex
03E1 hex
03E2 hex
03E3 hex
03E4 hex
03E5 hex
03E6 hex
03E7 hex
Data
00 hex
00 hex
00 hex
00 hex
00 hex
00 hex
00 hex
01 hex
Always
00 hex.
The number of
overwrites is 0
(000000 hex).
The number of
overwrites is 1
(000001 hex).
DATA WRITE or
DATA FILL
Data
00 hex
00 hex
00 hex
00 hex
00 hex
01 hex
86 hex
9F hex
Address
03E0 hex
03E1 hex
03E2 hex
03E3 hex
03E4 hex
03E5 hex
03E6 hex
03E7 hex
Address
03E0 hex
03E1 hex
03E2 hex
03E3 hex
03E4 hex
03E5 hex
03E6 hex
03E7 hex
Data
00 hex
00 hex
00 hex
00 hex
00 hex
01 hex
86 hex
A0 hex
Always
00 hex.
The number of
overwrites is 99,999
(01869F hex).
The number of
overwrites is 100,000
(0186A0 hex).
DATA WRITE or
DATA FILL
Service life
warning
Data
00 hex
00 hex
00 hex
00 hex
00 hex
01 hex
86 hex
A0 hex
Address
03E0 hex
03E1 hex
03E2 hex
03E3 hex
03E4 hex
03E5 hex
03E6 hex
03E7 hex
Address
03E0 hex
03E1 hex
03E2 hex
03E3 hex
03E4 hex
03E5 hex
03E6 hex
03E7 hex
Data
00 hex
00 hex
00 hex
00 hex
00 hex
01 hex
86 hex
A0 hex
Always
00 hex.
The number of
overwrites is 100,000
(0186A0 hex).
The number of
overwrites is 100,000
(0186A0 hex).
The number is not
changed.
DATA WRITE or
DATA FILL
Service life
warning
