90
SECTION 7
Specifications and Dimensions
RFID System
User's Manual
SECTION 7
Appendices

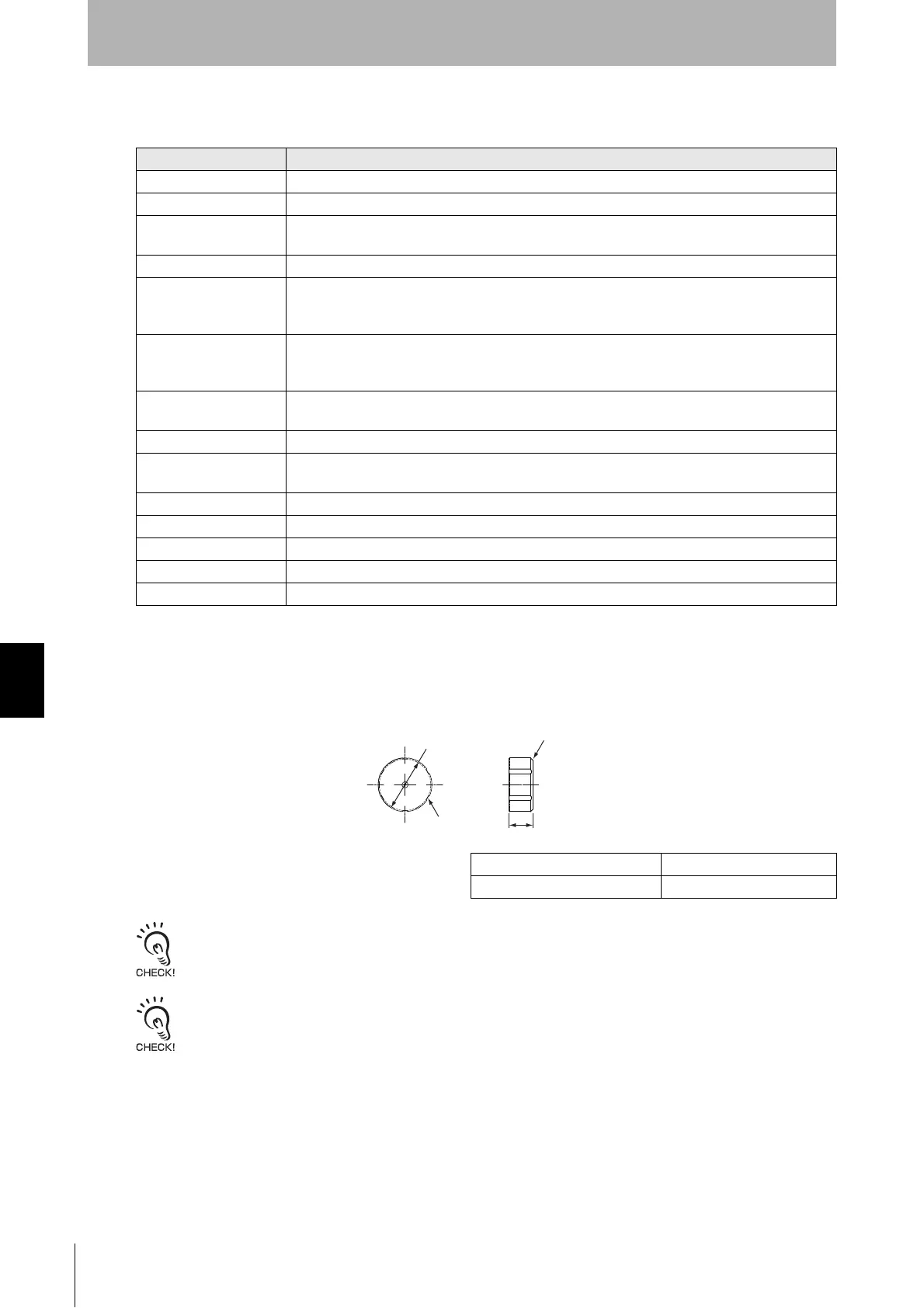

 V680-D1KP53M
 General Specifications
 Dimensions
When embedding the V680-D1KP53M into a metal surface, use the V680-HS51, V680-HS52 Antenna.
Transmission will not be possible if the V680-HS63 Antenna is used.
The side with the markings is the communications surface. Mount the RF Tag with this side facing the Antenna.
Item Model V680-D1KP53M
Memory capacity 1,000 bytes (user area)
Memory type EEPROM
Data Retention 10 years after writing (85C or less), 0.5 years after writing (85 to 125C)
Total data retention at high temperatures exceeding 125C is 10 houres
See Note 1
Write Endurance 100,000 times per block (25C)
Ambient operating
temperature when
communicating
25 to 85C (with no icing)
Ambient storage
temperature (with data
retention)
40 to 125C (with no icing)
Ambient operating
humidity
35% to 95%
Degree of protection IP68 (IEC 60529:2001), Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1)
See Note 2.
Vibration resistance 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s
2
, 10 sweeps each in X, Y, and Z
directions for 15 minutes each
Shock resistance 500 m/s
2
, 3 times each in X, Y, and Z directions (Total: 18 times)
Dimensions 10 dia.  4.5 mm (DIN698373)
Materials Case: PPS resin, Filling resin: Epoxy resin
Weight Approx. 1.0 g
Metal countermeasures Yes
Note 1. After string data at high temperatures, rewrite the data even if changes are not required, high temperatures are those
exceeding 125C up to 180C.
2. Oil resistance has been tested using a specific oil as defined in the OMRON test method.
Case material PPS resin
Fill resin Epoxy resin
C0.5
6-R0.8
10 dia.
4.5
