6 Programming Features
175

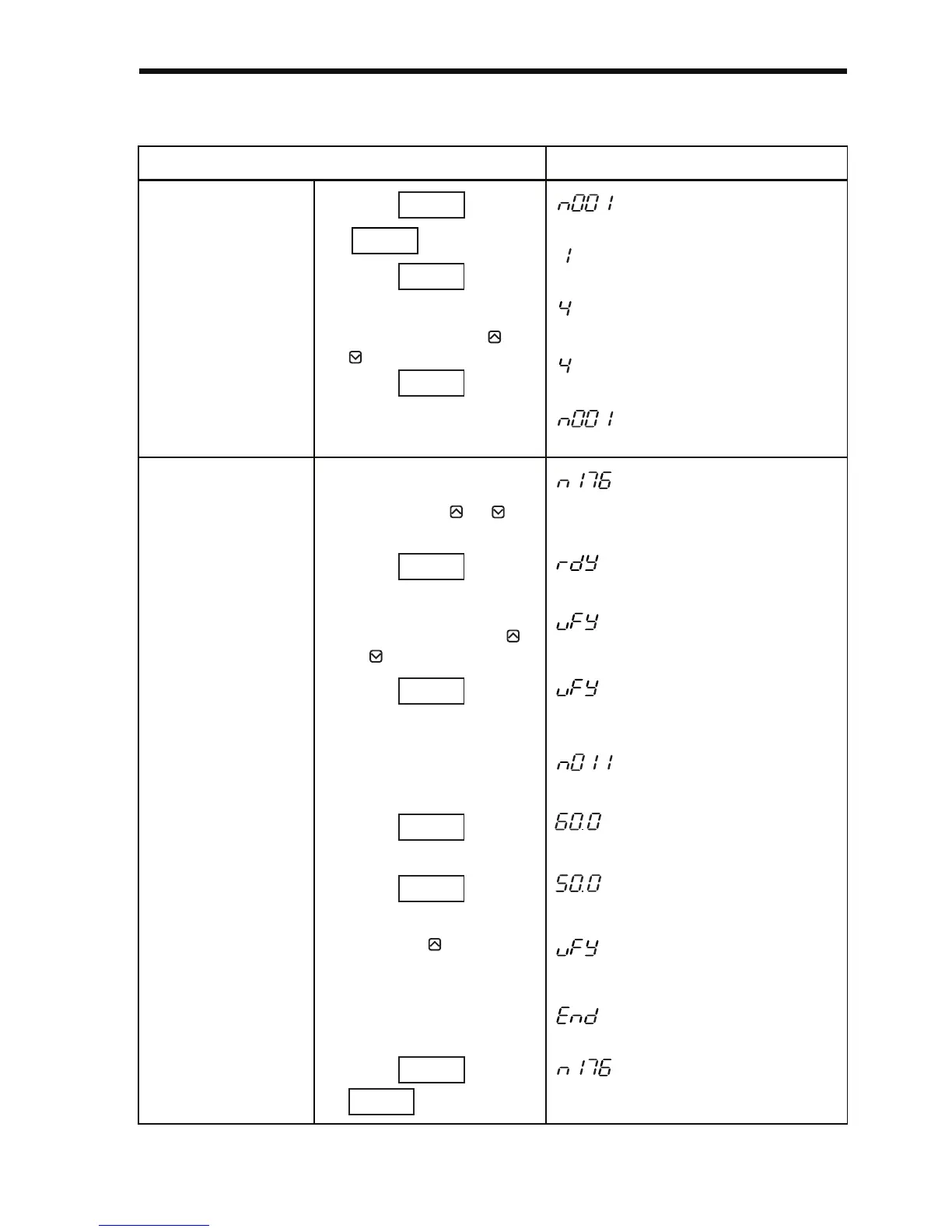

Example: Comparing Constants Stored in EEPROM in Operator with
Constants in Inverter
Explanation Operator Display
• Enable the set-
tings for con-
stants n001 to
n179.
• Press and
will light.
• Press to dis-
play the set value.
• Change the set value to
4 by pressing the or
key.
• Press .
(May be a different constant number)
(Lit)
(May be a different set value.)
(Flashes)
(Lit for one second.)
↓
(The constant number is displayed.)
• Execute VER-
IFY by Constant
Copy Function
Selection (n176).
• Change the constant
number to n176 by
pressing the or
key.
• Press to dis-
play the set value.
(Lit)
• Change the set value to
vFy by pressing the
or key.
(Lit)
• Press .
(Flashes while executing the verifi-
cation.)
• Display the
unmatched
constant number
(Flashes)
(When n011 is different.)
• Display the
constant value in
the Inverter.
• Press .
(Flashes)
• Display the con-
stant value in the
Digital Operator.
• Press .
(Flashes)
• Continue the
execution of
VERIFY.
• Press the key.
(Flashes while executing the
verification.)
↓
(End is displayed when the
verification has been completed.)
• Press or
.
(The constant number is
displayed.)
DSPL
PRGM
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
DSPL
ENTER
