3 Mounting
25
• The same space is required horizontally and vertically and
right and left for both Open Chassis (IP00, IP20) and
Enclosed Wall-mounted (NEMA 1) Inverters.
• Always remove the top and bottom covers before install-
ing a 200 or 400 V Class Inverter with an output of 5.5/7.5
kW in a panel.
Mounting/Removing Components
Removing and Mounting the Digital Operator and Covers

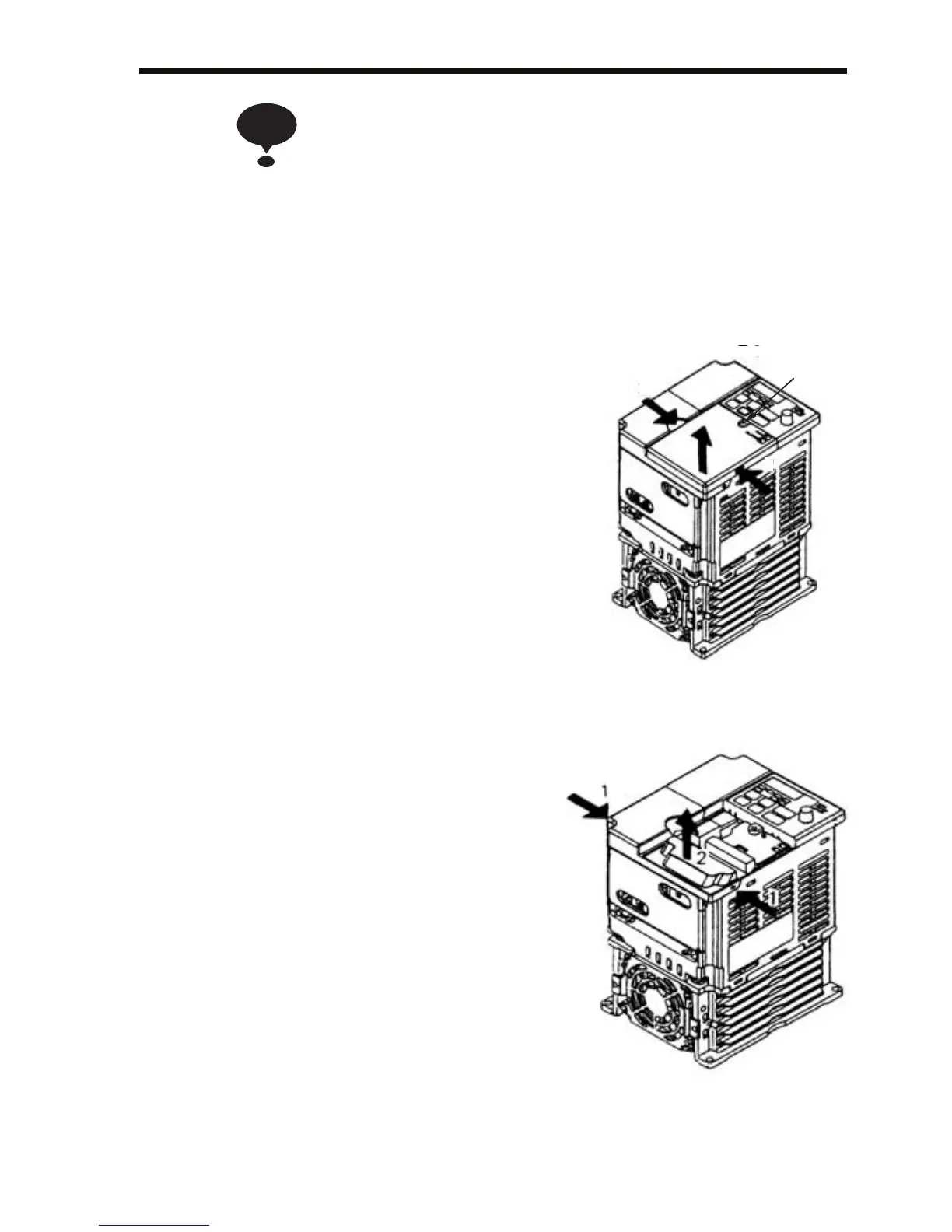

Removing the Front Cover
Use a screwdriver to loosen the screw
(section A) on the front cover. (To pre-
vent loss, this screw cannot be
removed.) Then press the right and left
sides in direction 1 and lift the front
cover in direction 2.
Mounting the Front Cover
Mount the front cover by reversing the
order of the above procedure for
removal.
Removing the Terminal Cover
• 200 V class Inverters with 1.1 kW
and more and all 400 V class
Inverters:
After removing the front cover,
press the right and left sides of the
terminal cover in direction 1 and lift
the terminal cover in direction 2.
NOTE
1
1
2
A
To Next Page
