6 Programming Features
75
n050 = 1 (Input terminal S1) (factory setting)
n051 = 2 (Input terminal S2) (factory setting)
n052 = 3 (Input terminal S3) (factory setting)
n053 = 5 (Input terminal S4) (factory setting)
n054 = 6 (Input terminal S5) (factory setting)
n055 = 7 (Input terminal S6) (factory setting)
n056 = 8 (Input terminal S7) (Change the setting to 8.)
16-step speed operation
Set frequency references 9 to 16 for n120 to n127.
Set the input terminal for a multi-step speed reference using the multi-
function input selection.
Operating at Low Speed
By inputting a Jog Command and then a Forward (Reverse) Run Com-
mand, operation is enabled at the jog frequency set in n032. When
multi-step speed references 1, 2, 3 or 4 are input simultaneously with
the Jog Command, the Jog Command has priority.
Constant No. Name Setting
n032 Jog Frequency Factory setting: 6.00 Hz
n050 to n056 Jog References Set to 10 for any constant.

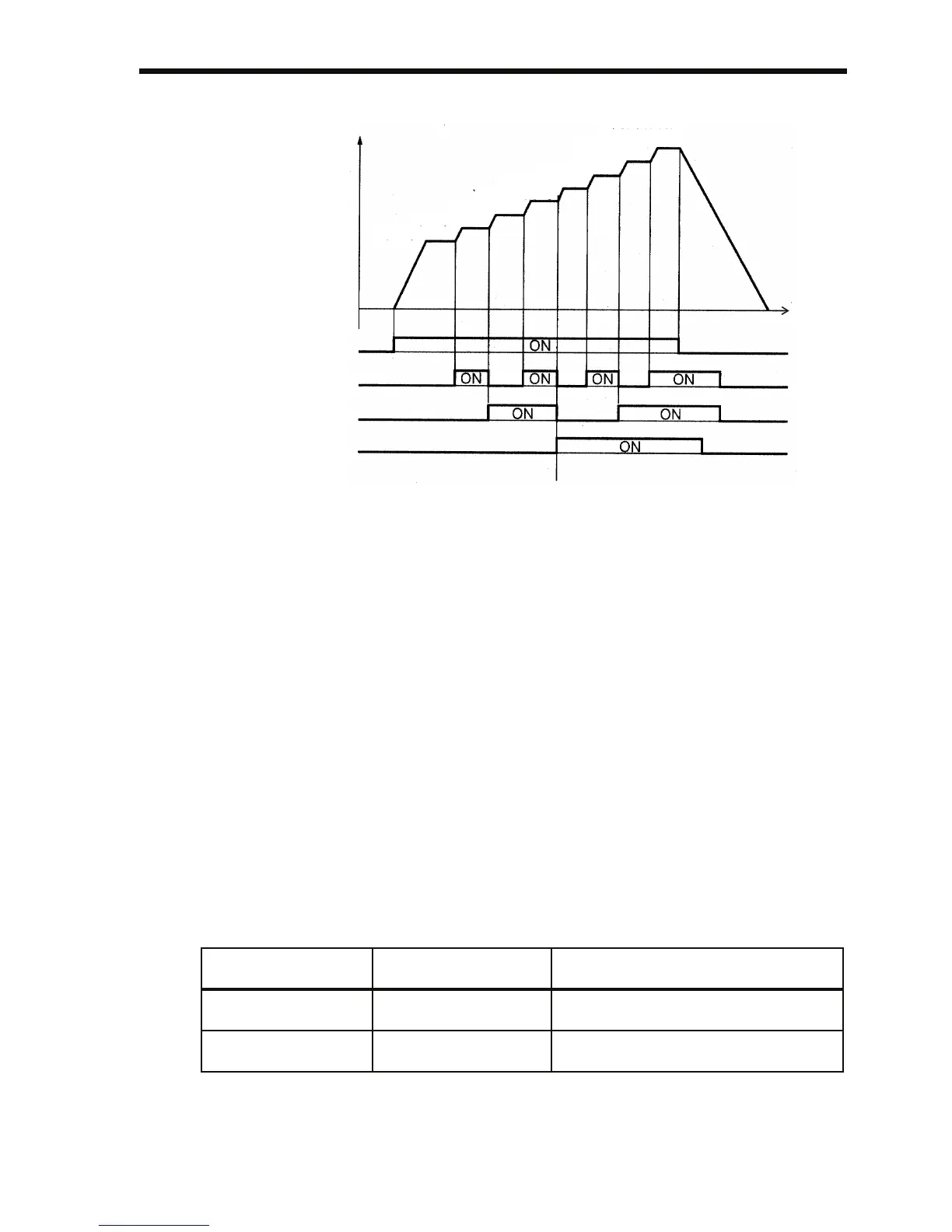

Frequency
reference
FWD (REV) Run/Stop
Multi-step speed ref. 1
(terminal S5)
Multi-step speed ref. 2
(terminal S6)
Multi-step speed ref. 3
(terminal S7)
Time
(n024) 25.0 Hz
(n025) 30.0 Hz
(n026) 35.0 Hz
(n027) 40.0 Hz
(n028) 45.0 Hz
(n029) 50.0 Hz
(n030) 55.0 Hz
(n031) 60.0 Hz
