1 Receiving the Product
19

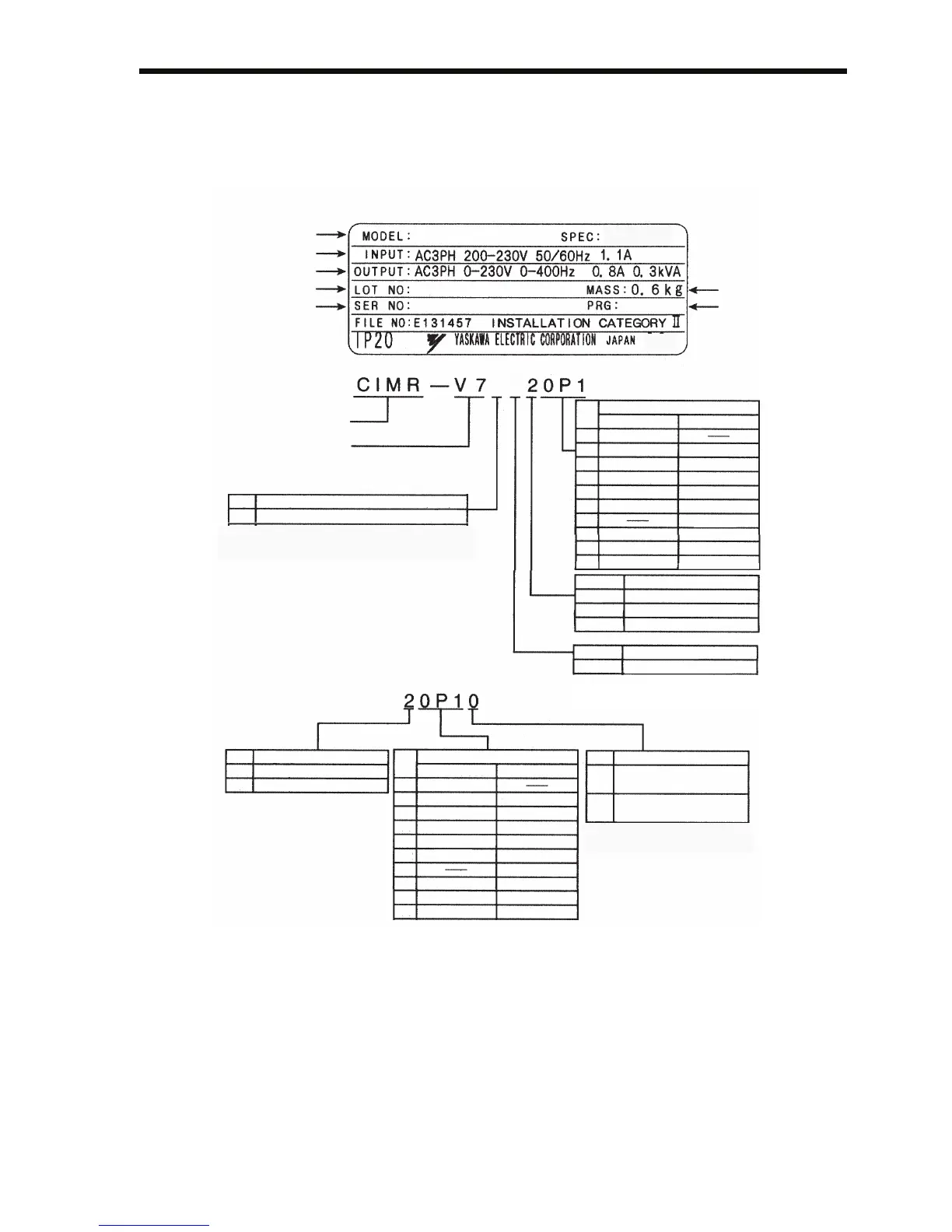

Checking the Nameplate
Example for 3-phase, 200-VAC, 0.1-kW (0.13 HP) Inverter
for European standards
Inverter Model
Input Spec.
Output Spec.
Lot No.
Serial No.
Inverter
V7AZ Series
Software Number
Specifications
Model
B
2
4
Single-phase 200 VAC
Three-phase 200 VAC
Three-phase 400 VAC
0P1
0P2
0P4
0.1 kW
0.25 kW
0.55 kW
0P7
1P5
2P2
1.1 kW
1.5 kW
2.2 kW
3P0
4P0
4.0 kW
3.0 kW
0.37 kW
0.55 kW
1.1 kW
1.5 kW
2.2 kW
4.0 kW
Applicable maximum motor output
200 V class 400 V class
No.
Protective structure
0
Open chassis
(IP20, IP00)*
1
1
Enclosed wall-mounted
(NEMA1)*
2
No.
Voltage Class
B
2
4
Single-phase 200 VAC
Three-phase 200 VAC
Three-phase 400 VAC
No.
Specifications
Z
European standards
0P1
0P2
0P4
0.1 kW
0.25 kW
0.55 kW
0P7
1P5
2P2
1.1 kW
1.5 kW
2.2 kW
3P0
4P0
4.0 kW
3.0 kW
0.37 kW
0.55 kW
1.1 kW
1.5 kW
2.2 kW
4.0 kW
Applicable maximum motor output
200 V class 400 V class
CIMR-V7AZ20P1
No.
Type
A With Digital Operator (with potentiometer)
A
5.5 kW
5P5
7P5
7.5 kW
5.5 kW
7.5 kW
5.5 kW
5P5
7P5
7.5 kW
5.5 kW
7.5 kW
20P10
Z
Note: Contact your OMRON representatives
for models without heatsinks.
*1: Inverters with outputs 0P1 to 3P7 are rated
IP20. Be sure to remove the top and bottom
covers if using open-chassis mounted Inverters
with a 5P5 or 7P5 output.
*2: A NEMA 1 rating is optional for Inverters with
outputs 0P1 to 3P7 but standard for 5P5 or 7P5.
Mass
Inverter Software Version
The inverter software version can be read out from the monitor parameter
U-10 or parameter n179. The parameter shows the last for digits of the
software number (e.g. display is“5740”for the software version VSP015740).
The manual describes the functionality of the Inverter software version
VSP015740 (0.1 to 4.0 kW) and VSP105750 (5.5 and 7.5 kW). Older software
versions do not support all described functions. Check the software version
before starting to work with this manual.
