Omron VARISPEED V7

9 Specifications
227

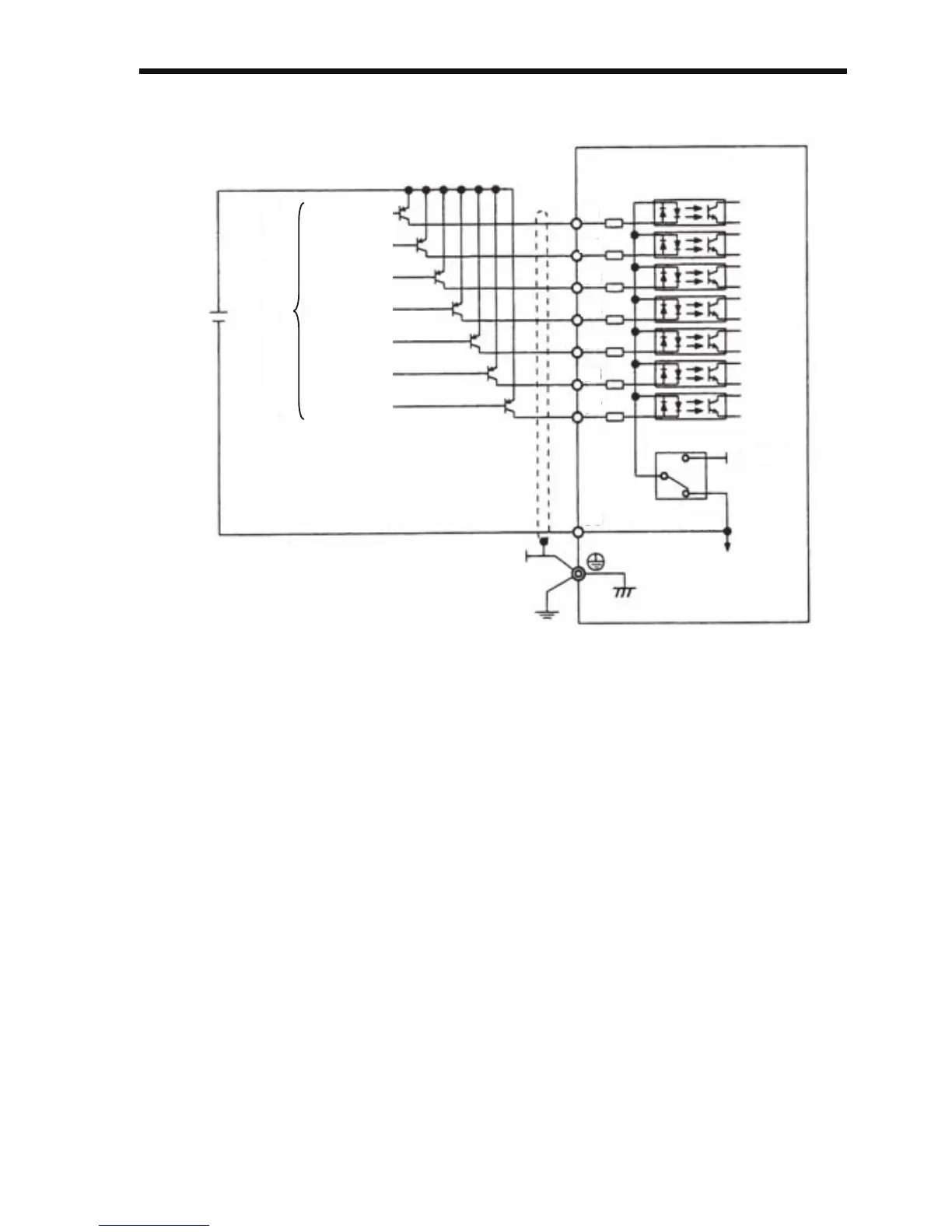

Sequence Connection with PNP Transistor (+24 V Common)
V7AZ
SW1 NPN
PNP
+24 V
SC
S1
S2
S3
S4
S5
S6
S7
External
power
supply
+24V
Jog
Multi-step Speed
Reference 1
Multi-step Speed
Reference 2
Fault Reset
External
Fault (NO)
Reverse
Run/Stop
Forward
Run/Stop
Multi-
function
input
