Omron VS mini J7 - Page 161

147
List of Parameters Chapter 10
n07
(0107)
Frequency
selection in
local mode
Used to set the input method for the
frequency reference in local mode.
0:The FREQ adjuster of the Digital
Operator enabled.
1:Key sequences on the Digital
Operator enabled.
0, 1 1 0 No 5-8
n08
(0108)
Key sequential
frequency
setting
Used to enable the Enter Key for setting the
frequency reference with the Increment and
Decrement Keys.
0:The value is entered with the Enter
Key pressed.
1:The value is enabled when the value
is input.
0, 1 1 0 No 5-12
n09
(0109)
Maximum
frequency
(FMAX)

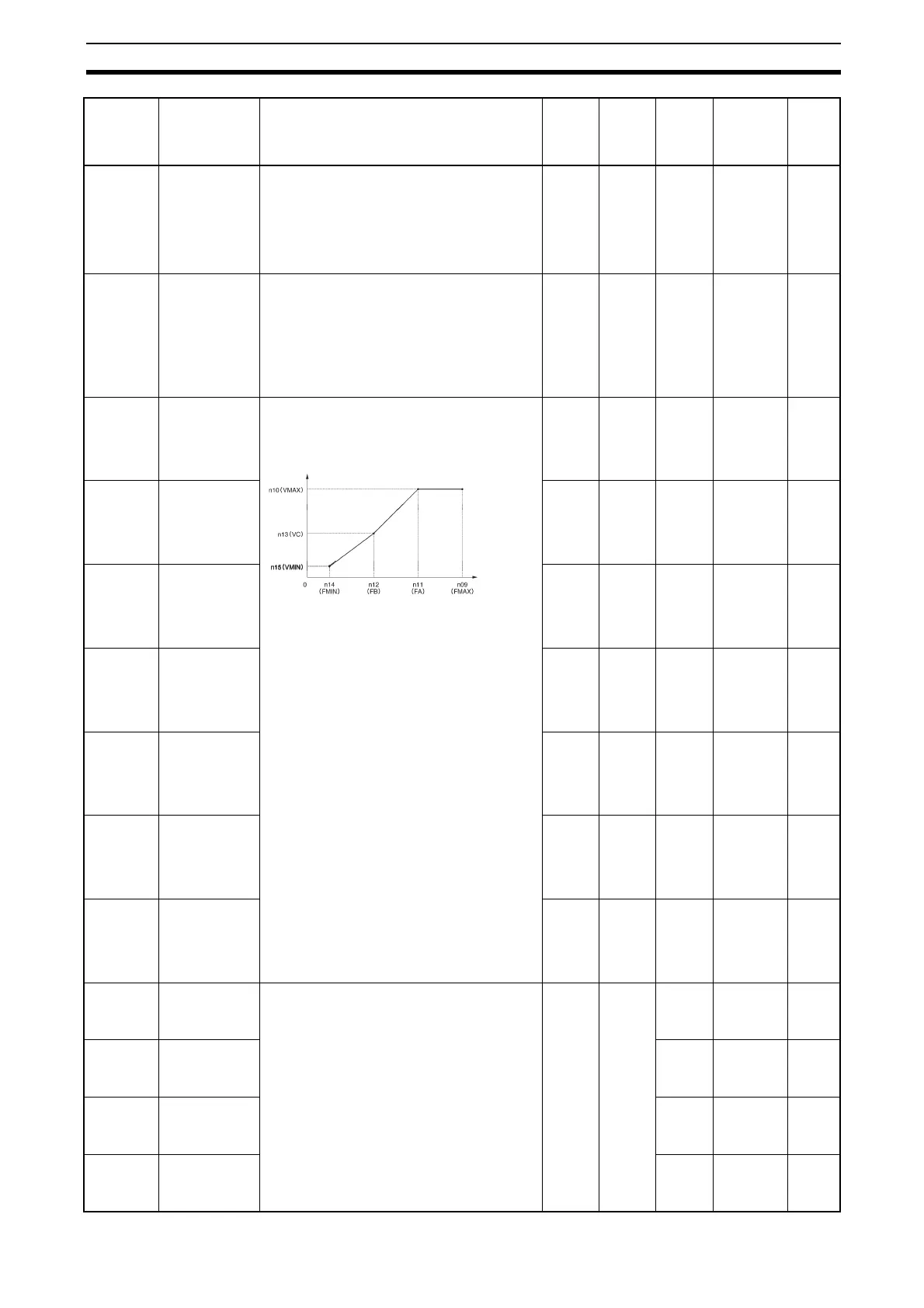

Used to set the V/f pattern as the basic
characteristic of the Inverter with output
voltage per frequency set.
Note Set the parameters so that the
following condition will be satisfied.
n14 O 012 < n11 O n09
Note The value set in n13 will be ignored if
parameters n14 and n12 are the
same in value.
50.0 to
400
0.1 Hz
(see
note 1)
60.0 No 5-4
n10
(010A)
Maximum
voltage
(VMAX)
1 to
255
(see
note 2)
1 V 200
(see
note 2)
No 5-4
n11
(010B)
Maximum
voltage
frequency (FA)
0.2 to
400
0.1 Hz
(see
note 1)
60.0 No 5-4
n12
(010C)
Middle output
frequency (FB)
0.1 to
399
0.1 Hz
(see
note 1)
1.5 No 5-4
n13
(010D)
Middle output
frequency
voltage (VC)
1 to
255
(see
note 2)
1 V 12 (see
note 2)
No 5-4
n14
(010E)
Minimum
output
frequency
(FMIN)
0.1 to
10.0
0.1 Hz 1.5 No 5-4
n15
(010F)
Minimum
output
frequency
voltage
(VMIN)
1 to 50
(see
note 2)
1 V 12.0
(see
note 2)
No 5-4
n16
(0110)
Accelera-tion
time 1
Acceleration time: The time required
to go from 0% to 100% of the maximum
frequency.
Deceleration time: The time required
to go from 100% to 0% of the maximum
frequency.
Note The actual acceleration or
deceleration time is obtained from the
following formula.
Acceleration/Deceleration time =
(Acceleration/Deceleration time set
value) × (Frequency reference value)
÷ (Max. frequency)
0.0 to
999
0.1 s 10.0 Yes 5-13
n17
(0111)
Decelera-tion
time 1
10.0 Yes 5-13
n18
(0112)
Accelera-tion
time 2
10.0 Yes 5-13
n19
(0113)
Decelera-tion
time 2
10.0 Yes 5-13
Para-
meter No.
(Register
No. (Hex))
Name Description Setting
range
Unit of
setting
Default
setting
Changes
during
operation
Refer-
ence
page
Output
voltage
Frequency
(Hz)
