Basic Configuration
17
ZFV
User’s Manual
● Example 1

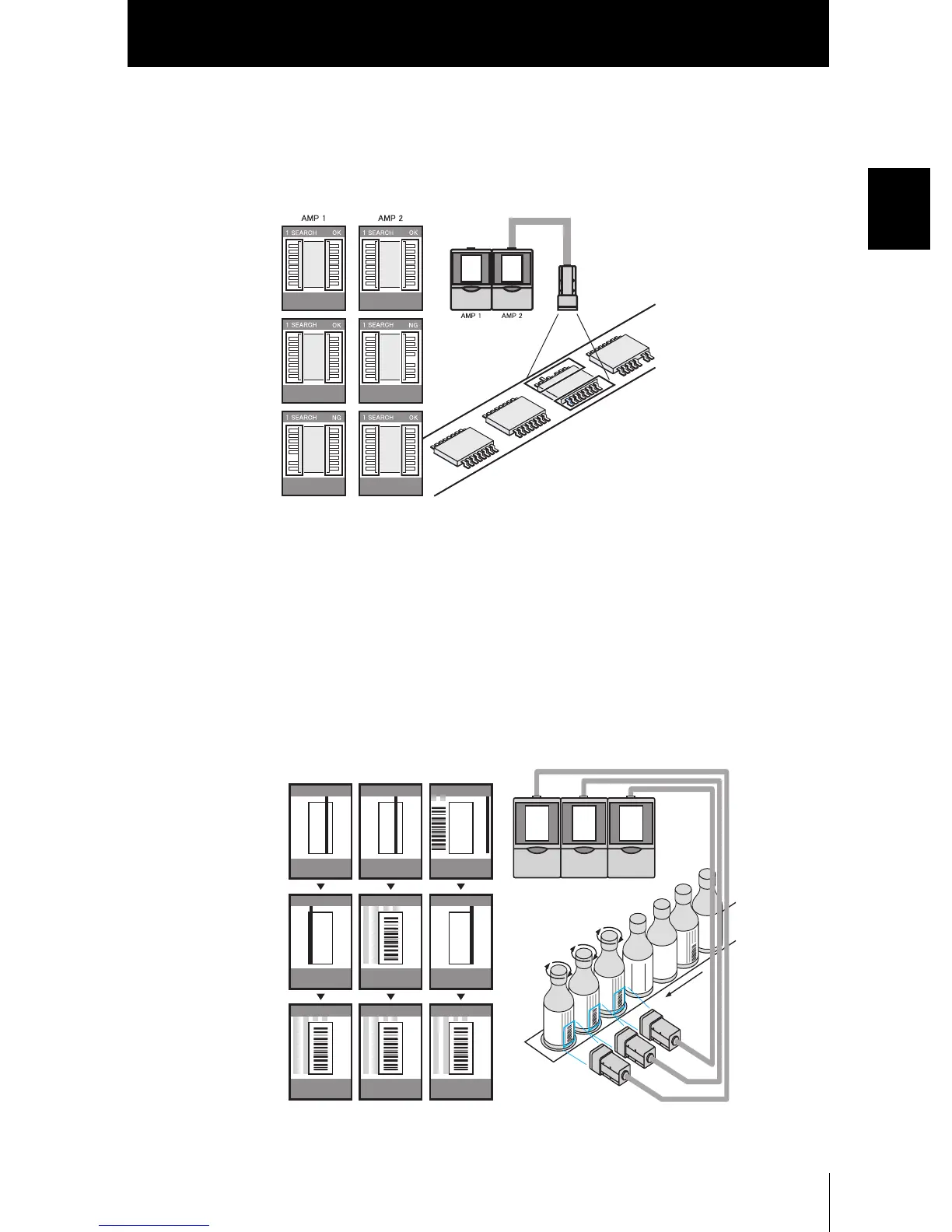

In this configuration, multiple parts of an image from a single Sensor Head are mea-
sured and multiple inspection item are performed.
● Example 2
In this configuration, multiple Sensor heads are used to simultaneously inspect multiple
locations on a workpiece.
When the TRIG signal is input from a single specified Amplifier Unit, the connected
Amplifier Unit starts sensing immediately. The result of sensing is integrated on the
Amplifier Unit to which the TRIG signal was input, and is output as a total judgment
result.
Example) Inspection of the number of leads
NG1.SEARCH
OK1.SEARCH
NG1.SEARCH
OK1.SEARCH
OK1.SEARCH
AMP 1 AMP 2
NG1.SEARCH
NG1.SEARCH
OK1.SEARCH
AMP 3
NG1.SEARCH
AMP 1 AMP 2 AMP 3
Vitamin C
V
itamin C
V
ita
min C
Example) Alignment of products
