Section 4
When Gang-mounting Amplifier Units
89
ZFV
User’s Manual
Section 4 APPENDIX
When Gang-mounting Amplifier Units
Application examples of amplifier unit gang-mounting and caution notes are explained.

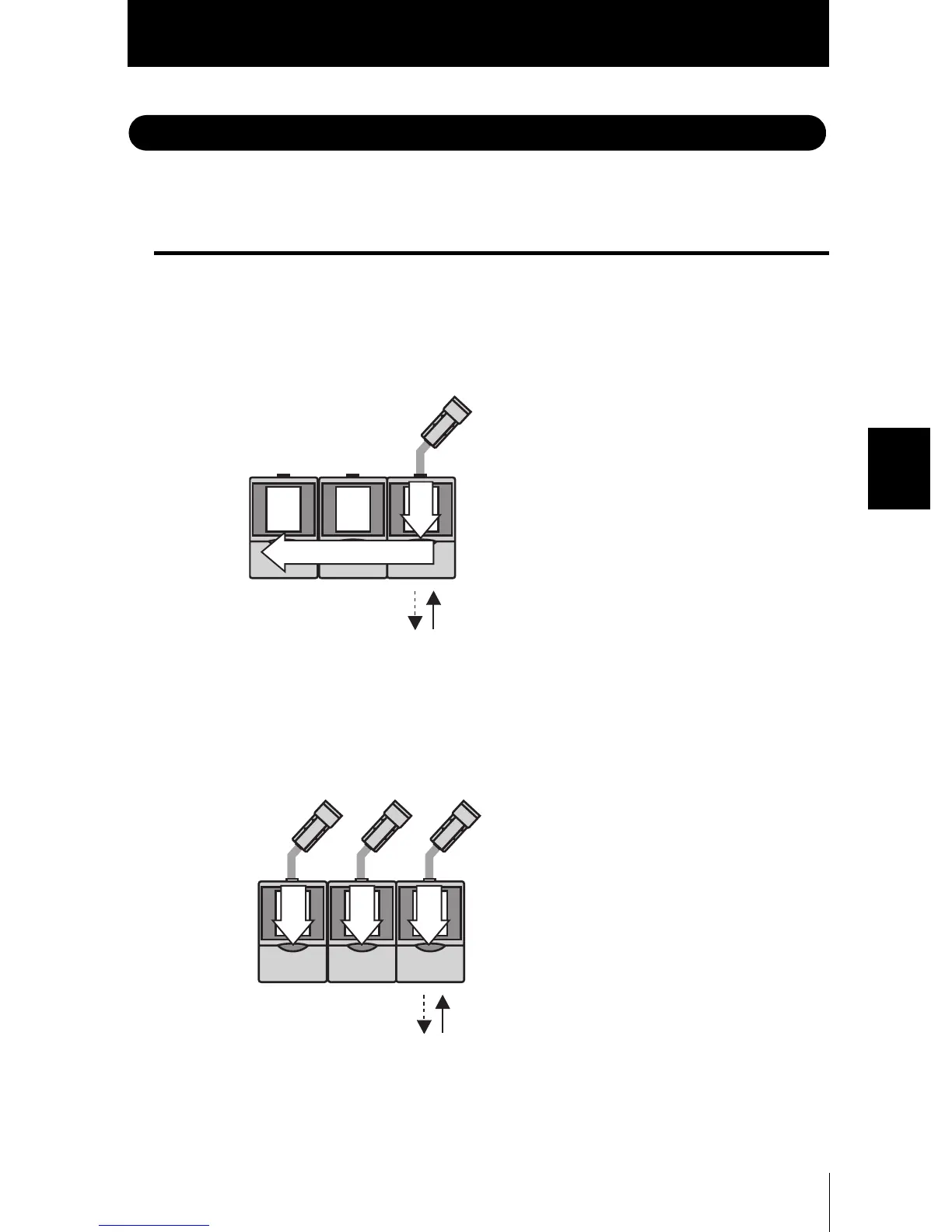

Gang-mounting example
■ 1 sensor head + multiple amplifier units
Example of detection of input image from 1 sensor head with multiple amplifier units.
•To detect multiple areas such as a 4-sided POSITION, multiple item SEARCH, etc.
•To detect multiple types such as both SEARCH and AREA judgments.
■ Multiple sensor heads + multiple amplifier units
Example of synchronizing and detecting multiple points of the same workpiece and
integrating judgments.
TRIG signalENABLE signal
Images are transferred from
right-side to left-side amplifier
units.
Measured with images loaded
from each sensor head.
TRIG signalENABLE signal
To Next Page
