Section 3 SETUP
Section 3
Settings During Application Extended Connection
69
ZFV
User’s Manual
Settings During Application Extended Connection
These menus are displayed only when Amplifier Units are gang-mounted.
Set to the all gang-mounted Amplifier Units.

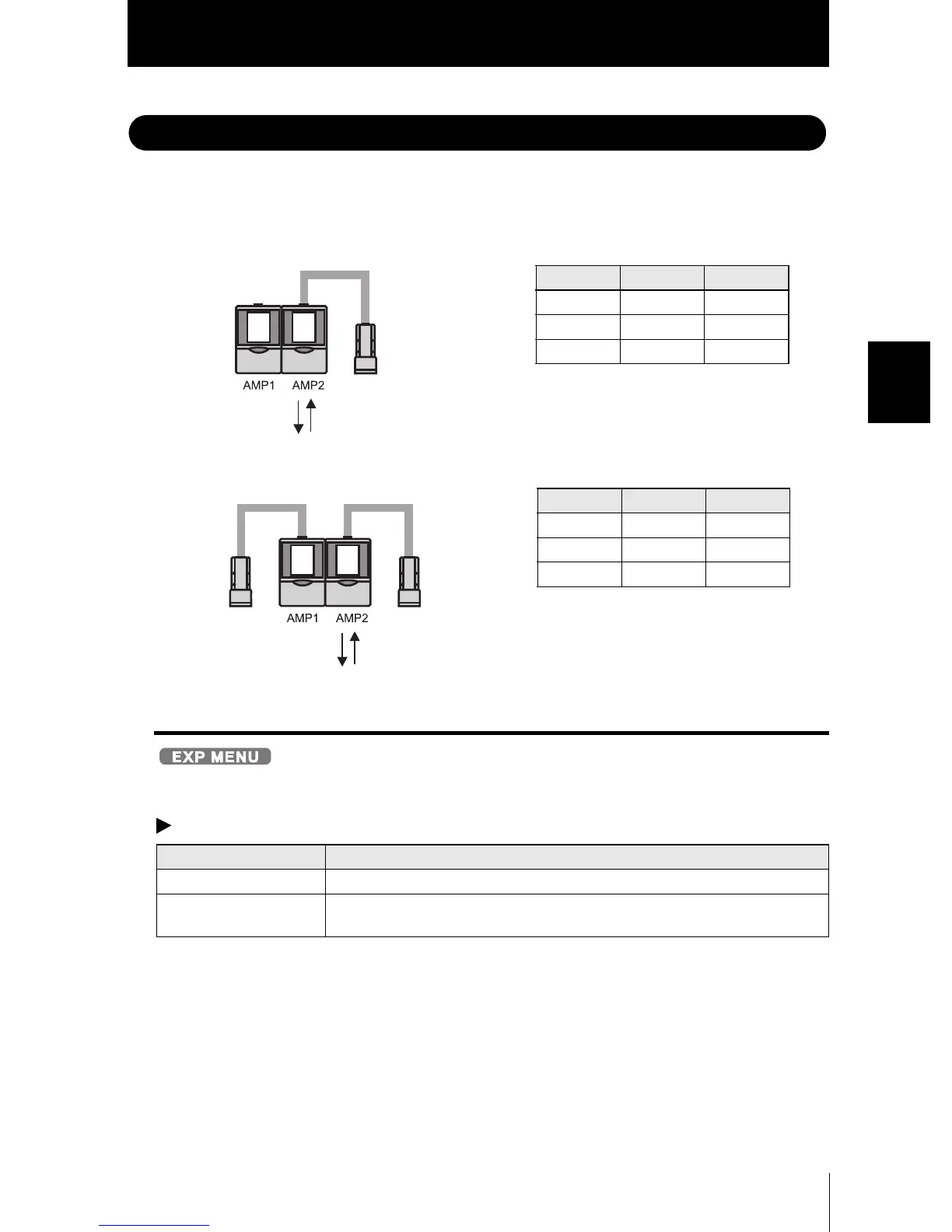

Specifying the Amplifier Unit to input the trigger
Set whether or not to input the TRIG signal to an Amplifier Unit.
MENU Mode-[SYS2]-[LINKSET]-[TRIG]
MENU AMP1 AMP2
TRIG LINK I/O
HEAD NOTUSE USE
OUTPUT — All
MENU AMP1 AMP2
TRIG LINK I/O
HEAD USE USE
OUTPUT — All
Setting Description
I/O (default value) Set to only the Amplifier Unit to which the TRIG signal is to be input.
LINK Synchronizes to the TRIG signal from the Amplifier Unit gang-mounted on the right
side.
Example 1)
AMP2: TRIG signal input, AMP2: Output of overall
judgment result
Example 2)
AMP2: TRIG signal input, AMP2: Output of overall
judgment result
To Next Page
