Section 4
When Gang-mounting Amplifier Units
93
ZFV
User’s Manual
Section 4 APPENDIX
Integrating judgment output
Judgment result output (OUTPUT) of gang-mounted amplifier units can be integrated.
Setting output content p.70

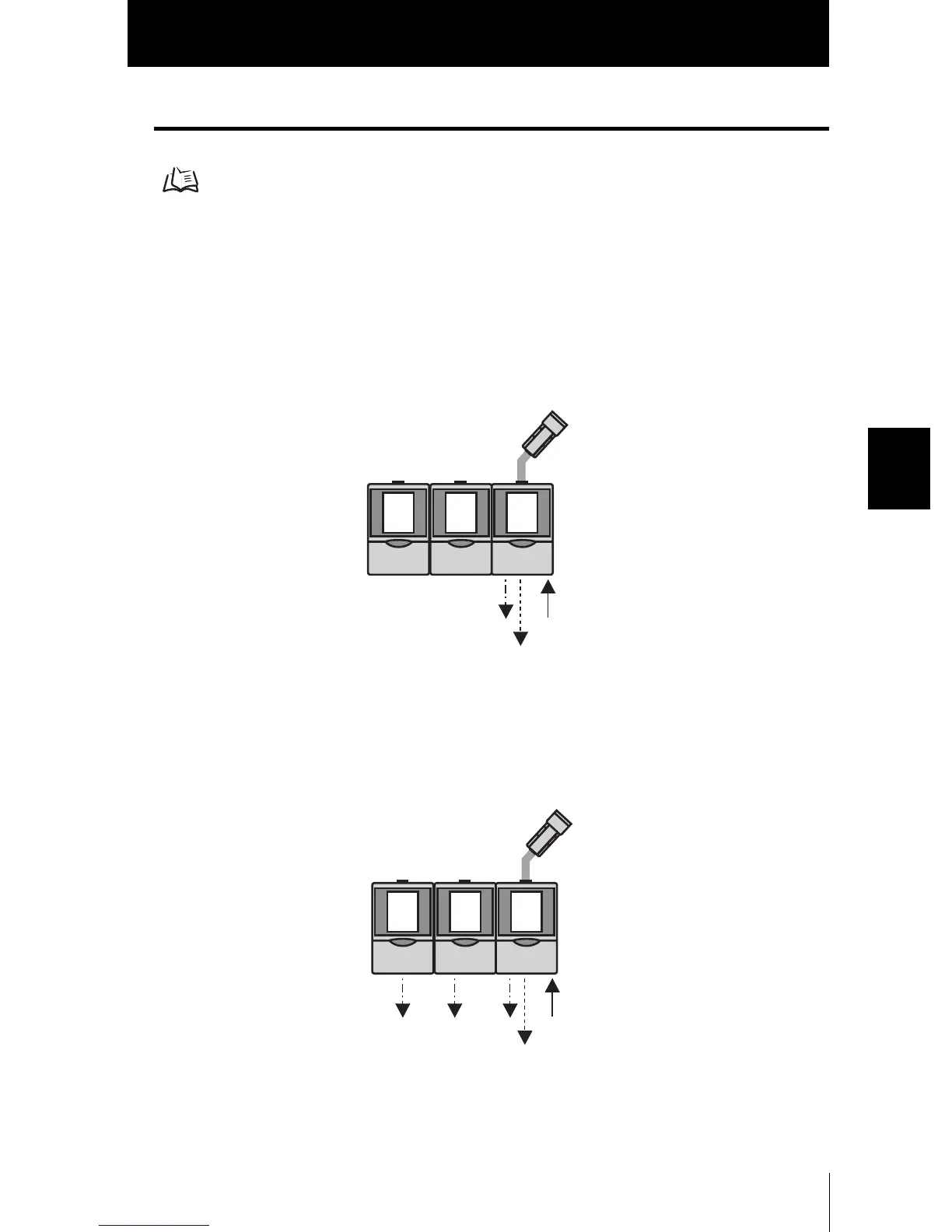

■ When all amplifier unit measurement results are integrated
(ALL)
Select [ALL] to integrate measurement results of all gang-mounted amplifier units and
output from amplifier units (host device) where TRIG signals are input. Obtain OUTPUT
signal after ENABLE signal is set to ON.
When any amplifier unit is NG, the integrated judgment is NG.
■ When judgment results are output by each amplifier unit
(EACH)
Select [EACH] to output judgment results by each amplifier unit. The host device
ENABLE signal is enabled. Obtain OUTPUT signal after ENABLE signal is set to ON.
TRIG signal
ENABLE signal
OUTPUT signal
TRIG signal
ENABLE signal
OUTPUT signal
To Next Page
