Section 3 SETUP
ZFV
User’s Manual
Section 3
Customizing Measurement conditions
PATTERN/SEARCH, MATCH

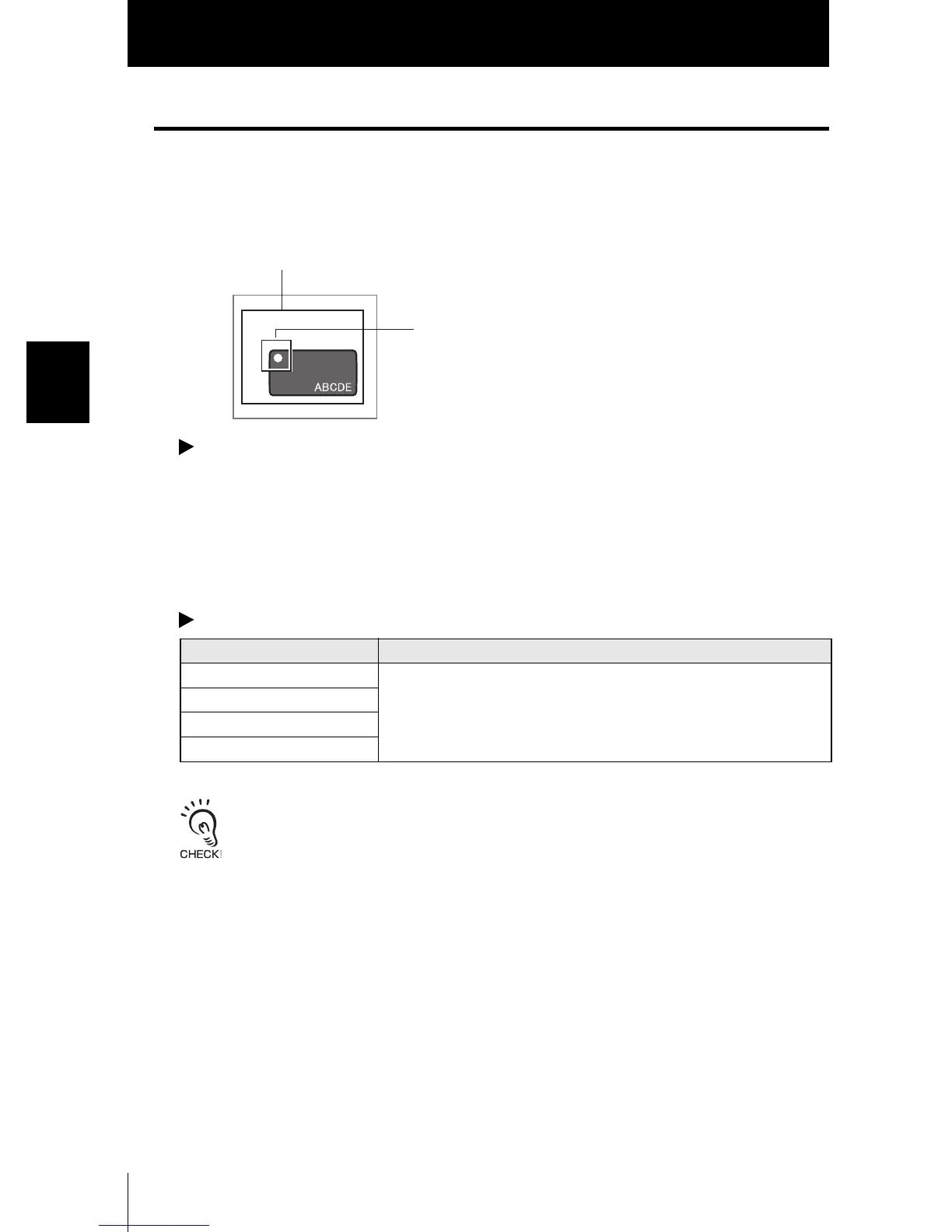

■ Changing the search area
Change the area to search the model in.
Specify the top left and bottom right of the search area.
MENU Mode-[CUSTM]-[SEARCH AREA]
■ Setting the rotation range of a workpiece
This item is displayed only when [SEARCH] is set.
Set this item when even a tilted workpiece is to be set as a non-defective item.
MENU Mode-[CUSTM]-[ROTATION]
The larger the range of acceptable tilt, the longer it takes to perform measurement.
Setting Description
±10° (default value) Set the range of acceptable tilt
±20°
±30°
±45°
Search area
Model
