Omron ZX-LD30V User Manual

Dimensions Section 6-2
158

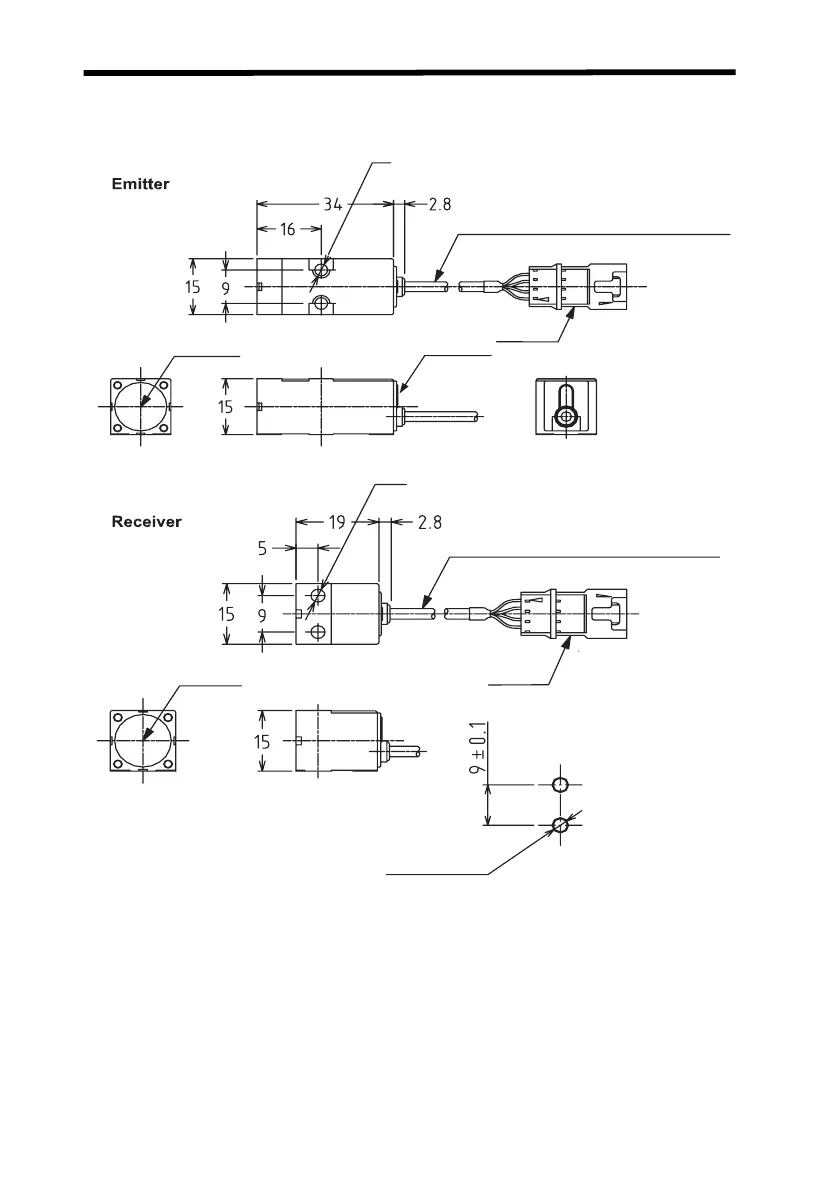

6-2-2 Through-beam Sensor Heads
 ZX-LT001
Vinyl-insulated round cable (gray), 2.6 dia.,
3 conductors, standard length: 0.5 m
(cross-sectional area of conductor: 0.09 mm
2
,
Insulator diameter: 0.6 mm)
Vinyl-insulated round cable (black), 2.6 dia.,
3 conductors, standard length: 0.5 m
(cross-sectional area of conductor: 0.09 mm
2
,
Insulator diameter: 0.6 mm)
Connector
Connector
Laser ON
indicator
Optical
axis center
Optical
axis center
Mounting Holes
(Same for Emitter)
Two, 3.2-dia. mounting holes
Two, 3.2 dia. mounting holes
Two, M3 holes
(Unit: mm)
Z157-E1-01C.book Page 158 Thursday, August 31, 2006 5:13 PM

Omron ZX-LD30V Specifications

General

Type	Laser Displacement Sensor
Ambient humidity	35 to 85% RH (No condensation)
Weight	Approx. 100 g
Linearity	±0.1% of F.S.
Light source	Semiconductor laser
Laser class	Class 2
Measurement Range	±5 mm
Output Type	Analog voltage
Power Supply Voltage	12 to 24 VDC ±10% (ripple: 10% p-p max.)
