Omron ZX2 Series User Manual

Double Sheet Detection
53
ZX2 User’s Manual
INTRODUCTION
BASIC
SETUP
PREPARATION
FOR
MEASUREMENT
TROUBLE-
SHOOTING
INDEX
CONTENTS
SETTING
TRANSITION
CHARTS
FLOW OF
OPERATION
MAIN
APPLICATIONS
& SETTING
METHODS
DETAILED
SETTINGS
SPECIFI-
CATIONS
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

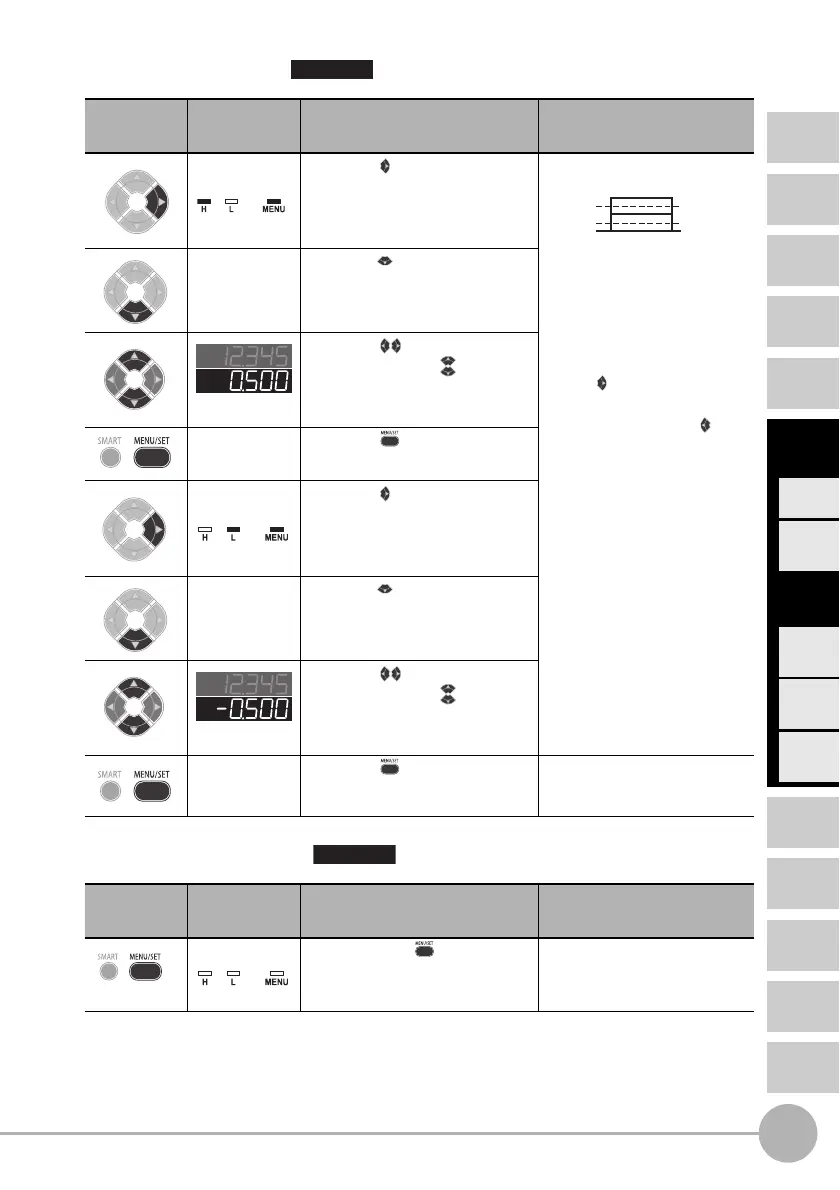

7 Threshold Setting
8 Return to RUN mode
* For details on optimizing settings, such as output and input, see "Detailed Settings."
Example (Setting the reference height to 0 (or the offset value):
Zero Reset → page 87)
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press the button to display
the HIGH threshold.
(Examples)
Set the HIGH and LOW
thresholds right in the middle
of the measured values of
sheets 1 and 2 and sheets 1
and 0, respectively.
* If the button is pressed
when the cursor is at the
right-most digit or the
button is pressed when the
cursor is at the left-most digit,
the setting will be canceled.
* Set so that the HIGH
threshold is greater than the
LOW threshold.
Press the button to enable
setting of the HIGH threshold.
Set any value.
Press the button to move
the digit, press the button to
change the numeric value, and
set the HIGH threshold.
Press the button to apply
the setting.
Press the button to display
the LOW threshold.
Press the button to enable
setting of the LOW threshold.
Set any value.
Press the button to move
the digit, press the button to
change the numeric value, and
set the LOW threshold.
Press the button to apply
the setting.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Hold down the button for
three seconds to switch to the
RUN mode.
Required
Setting the HIGH and LOW thresholds set the
range of measured values judged as PASS.
Press to display.
Lit
L
H
P
-0.5
0.5
Press to set.
[Change numeric value]
[Move digit]
Press to display.
Lit
Press to set.
[Change numeric value]
[Move digit]
Required
Switch to the mode in which
measurement is performed.
Hold down for
3 seconds
Out
