Omron ZX2 Series User Manual

Smart Tuning
75
ZX2 User’s Manual
INTRODUCTION
BASIC
SETUP
PREPARATION
FOR
MEASUREMENT
TROUBLE-
SHOOTING
INDEX
CONTENTS
SETTING
TRANSITION
CHARTS
FLOW OF
OPERATION
MAIN
APPLICATIONS
& SETTING
METHODS
DETAILED
SETTINGS
SPECIFI-
CATIONS
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

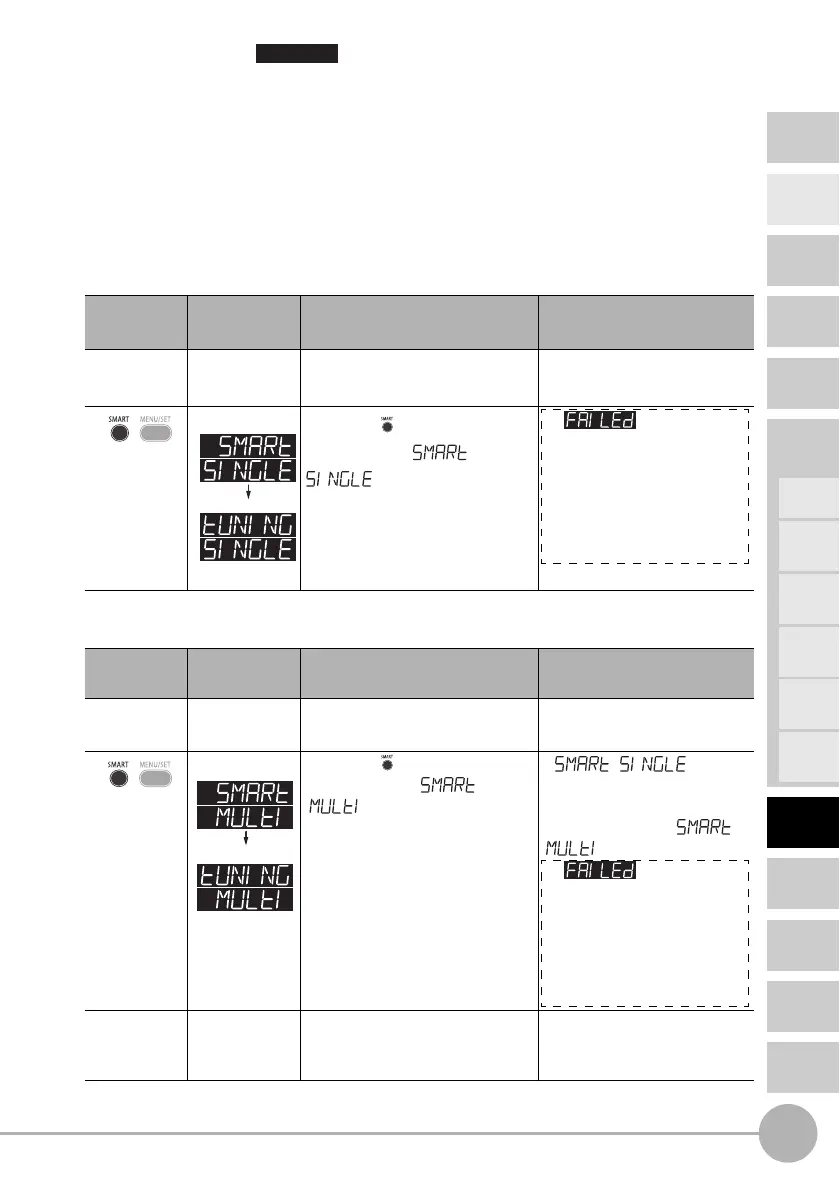

3 Smart tuning
Select from one of the following three methods to execute smart tuning:
(1) Tuning of a single stationary workpiece: Single smart tuning
(2) Tuning of multiple stationary workpieces: Multi-smart tuning
(a mix of workpieces having different color and state)
(3) Tuning of workpieces having different surface states: Active smart tuning
(execution of tuning while workpieces are moving)
(1) Tuning of a single stationary workpiece: Single smart tuning
(2) Tuning of multiple stationary workpieces: Multi-smart tuning
(a mix of workpieces having different color and state)
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
——
Set the reference workpiece in
place.
Press the button for one
second. When /
is displayed, release
your finger from the button to
start execution of smart tuning.
If " " flashes on the
sub-display for three
seconds, it indicates that
tuning was not possible.
Change the response time
setting to a larger value, and
try again.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
——
Set reference workpiece 1 in
place.
Press the button for three
seconds. When /
is displayed, release
your finger from the button to
start execution of smart tuning.
* / is
displayed for one to three
seconds after the button is
pressed, and then /
is displayed.
If " " flashes on the
sub-display for three
seconds, it indicates that
tuning was not possible.
Change the response time
setting to a larger value, and
try again.
——
Swap the workpiece with
reference workpiece 2 and set it
in place.
Required
Hold down for
1 second
Flashing
Pressing down
Pressed down
Hold down for
3 seconds
Pressing down
Pressed down
Flashing
