Smart Tuning
76
ZX2 User’s Manual
INTRODUCTION
MAIN
APPLICATIONS
& SETTING
METHODS
SPECIFI-
CATIONS
INDEX
SETTING
TRANSITION
CHARTS
DETAILED
SETTINGS
FLOW OF
OPERATION
CONTENTS
PREPARATION
FOR
MEASUREMENT
BASIC
SETUP
TROUBLE-
SHOOTING
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

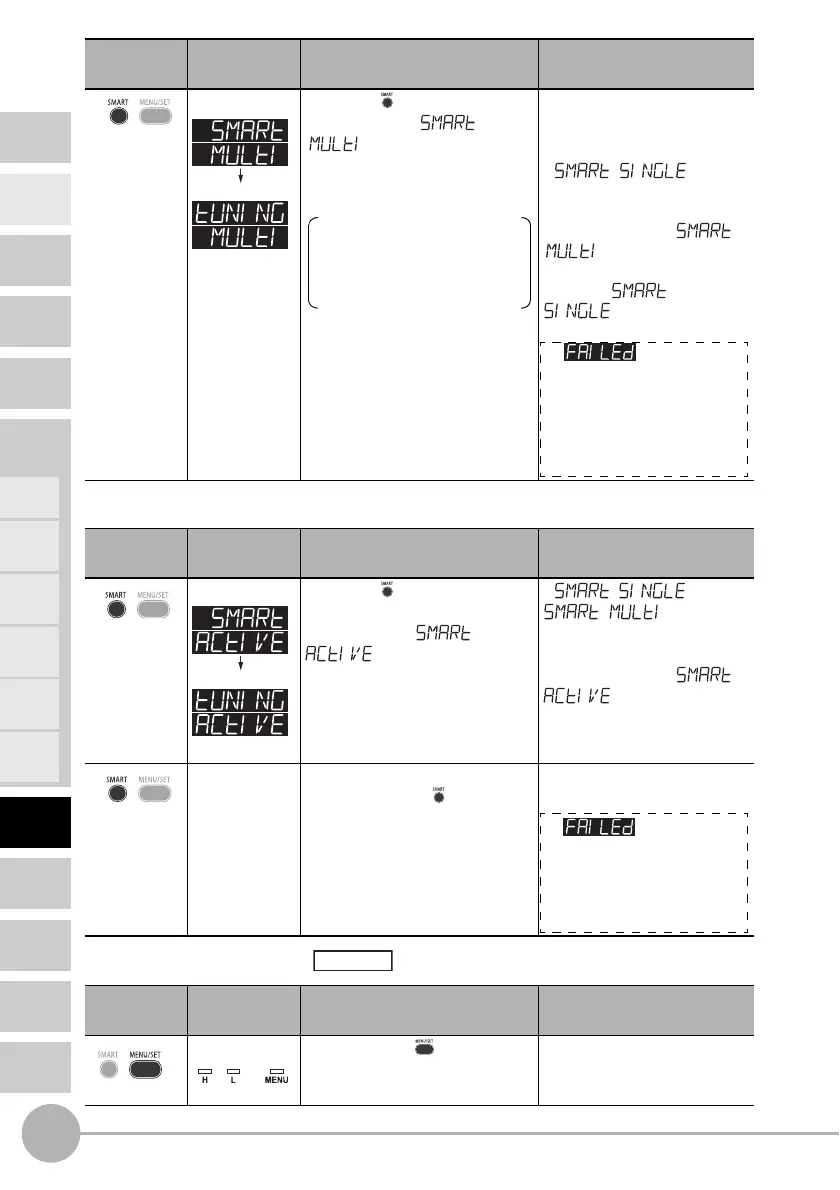

(3) Tuning of workpieces having different surface states: Active smart tuning
(execution of tuning while workpieces are moving)
4 Return to RUN mode
Press the button for three
seconds. When /
is displayed, release
your finger from the button to
start execution of smart tuning.
When there are three or more
reference workpieces, swap
each workpiece and repeat
the procedure.
The optimum conditions are
set for either reference
workpiece 1 or 2 is set.
* / is
displayed for one to three
seconds after the button is
pressed, and then /
is displayed.
If you release your finger from
the button /
, the result of tuning
workpiece 1 will not be reflected.
If " " flashes on the
sub-display for three
seconds, it indicates that
tuning was not possible.
Change the response time
setting to a larger value, and
try again.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press the button for five
seconds with the workpiece set
in place. When /
is displayed, release
your finger from the button to
start execution of smart tuning.
* / and
/ are
displayed for one to five
seconds after the button is
pressed, and then /
is displayed.
At the end of the desired tuning
period, press the button
again for 5 to end tuning.
The optimum setting
conditions will be set.
If " " flashes on the
sub-display for three seconds,
it indicates that tuning was not
possible.
Change the response
time setting to a larger value,
and try again.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Hold down the button for
three seconds to switch to the
RUN mode.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Hold down for
3 seconds
Pressing down
Pressed down
Flashing
Hold down for
5 seconds
Pressing down
Pressed down
Flashing
Hold down for
5 seconds
Optional
Hold down for
3 seconds
Out
