Setting the Hold Function
83
ZX2 User’s Manual
INTRODUCTION
BASIC
SETUP
PREPARATION
FOR
MEASUREMENT
TROUBLE-
SHOOTING
INDEX
CONTENTS
SETTING
TRANSITION
CHARTS
FLOW OF
OPERATION
MAIN
APPLICATIONS
& SETTING
METHODS
DETAILED
SETTINGS
SPECIFI-
CATIONS
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

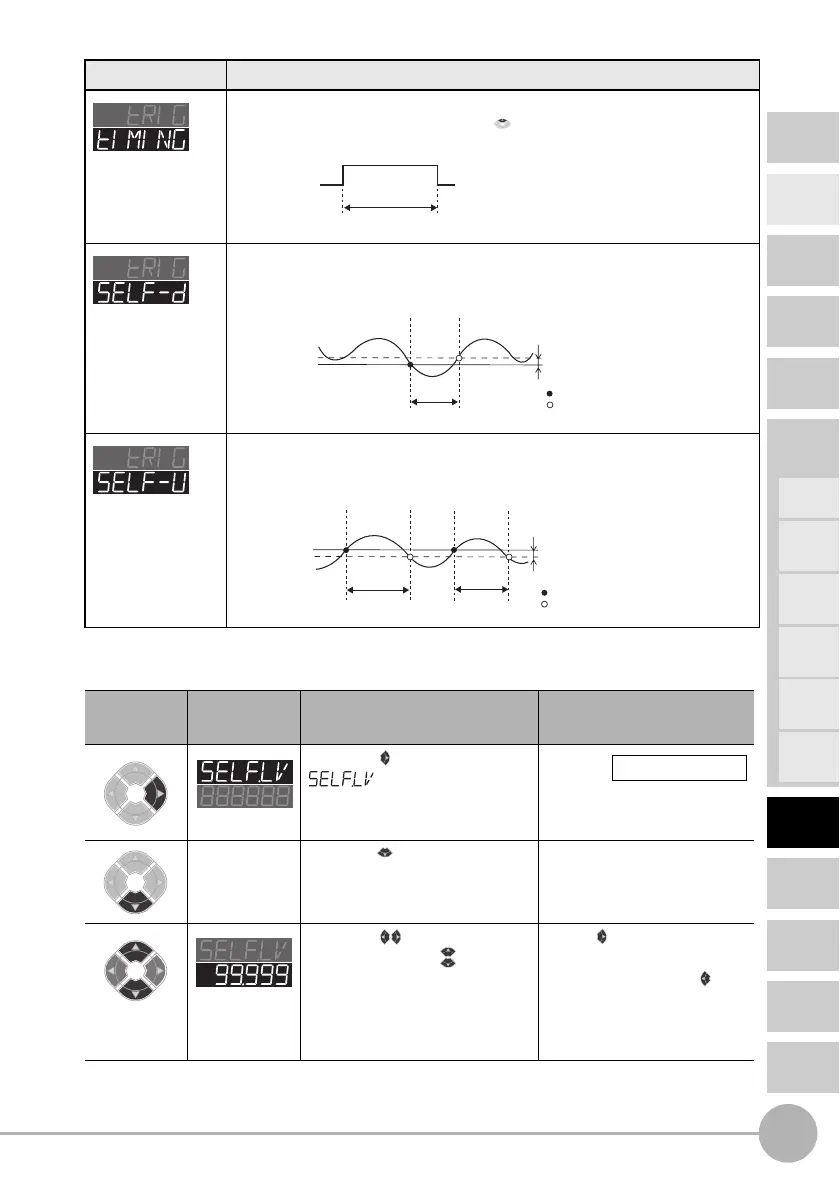

4 Trigger level setting
Selection menu Details
(Default)
Either input the timing signal from an external device, or enter the trigger
for starting sampling by pressing the button. The period that the timing
signal is ON is the sampling period.
(For details on external inputs, see page 101.)
The sampling period is the period that the measured value is lower than
the specified self-trigger level. Hold measurement is possible without a
sync input.
The sampling period is the period that the measured value is greater than
the specified self-trigger level. Hold measurement is possible without a
sync input.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press the button to display
.
Press the button to enable
setting of the self-trigger level.
Set any value.
Press the button to move
the digit, press the button to
change the numeric value, and
set the self-trigger level.
* If the button is pressed
when the cursor is at the
right-most digit or the
button is pressed when the
cursor is at the left-most digit,
the setting will be canceled.
ON
OFF
Sampling period
Timing input
Operation point
Return point
Self-trigger level
Hysteresis width
Sampling period
Measured value
Operation point
Return point
Self-trigger level
Hysteresis width
Sampling period Sampling period
Measured value
Press to display.
Default value: 0.000
Press to set.
[Change numeric value]
[Move digit]
