DOCTOR CONSOLE
Doctor Console with S.P.R.I.D.O. Doctor Console with hanging hose
The doctor console can house up to four instruments (syringe included).

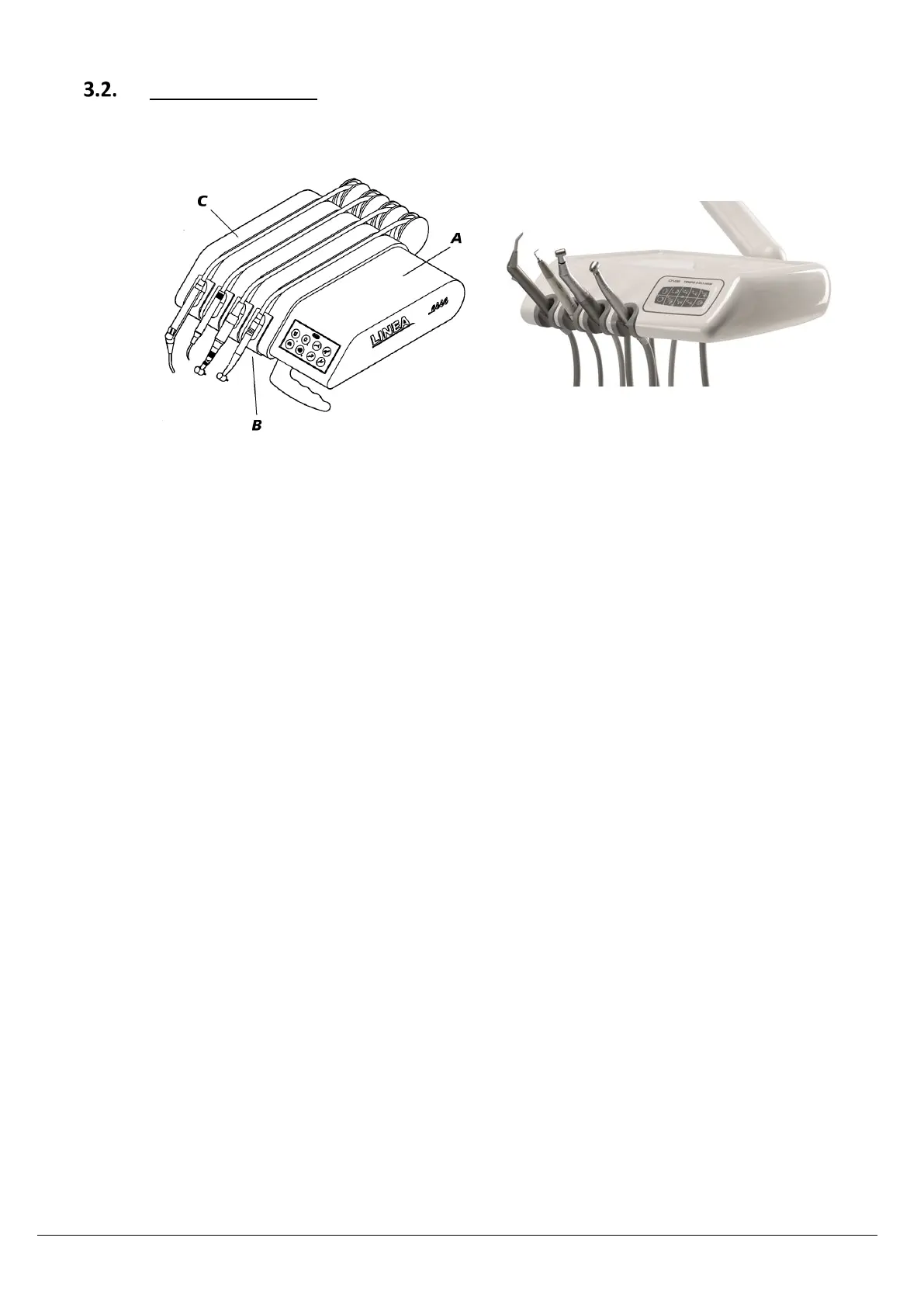

The part A has the button for instrument control, as well as movement chair buttons. Inside there is the
general PCB with all electrical connections.
The part B includes the instrument electrical valves used to drive the instrument as well as their adjustment
flow rate, the feature is described below. Adjustments on cooling air and drive air need to be done by
authorized O.M.S. technicians.
The part C is the instrument housing.
