FEB-4720 Main Board
Connector Panels

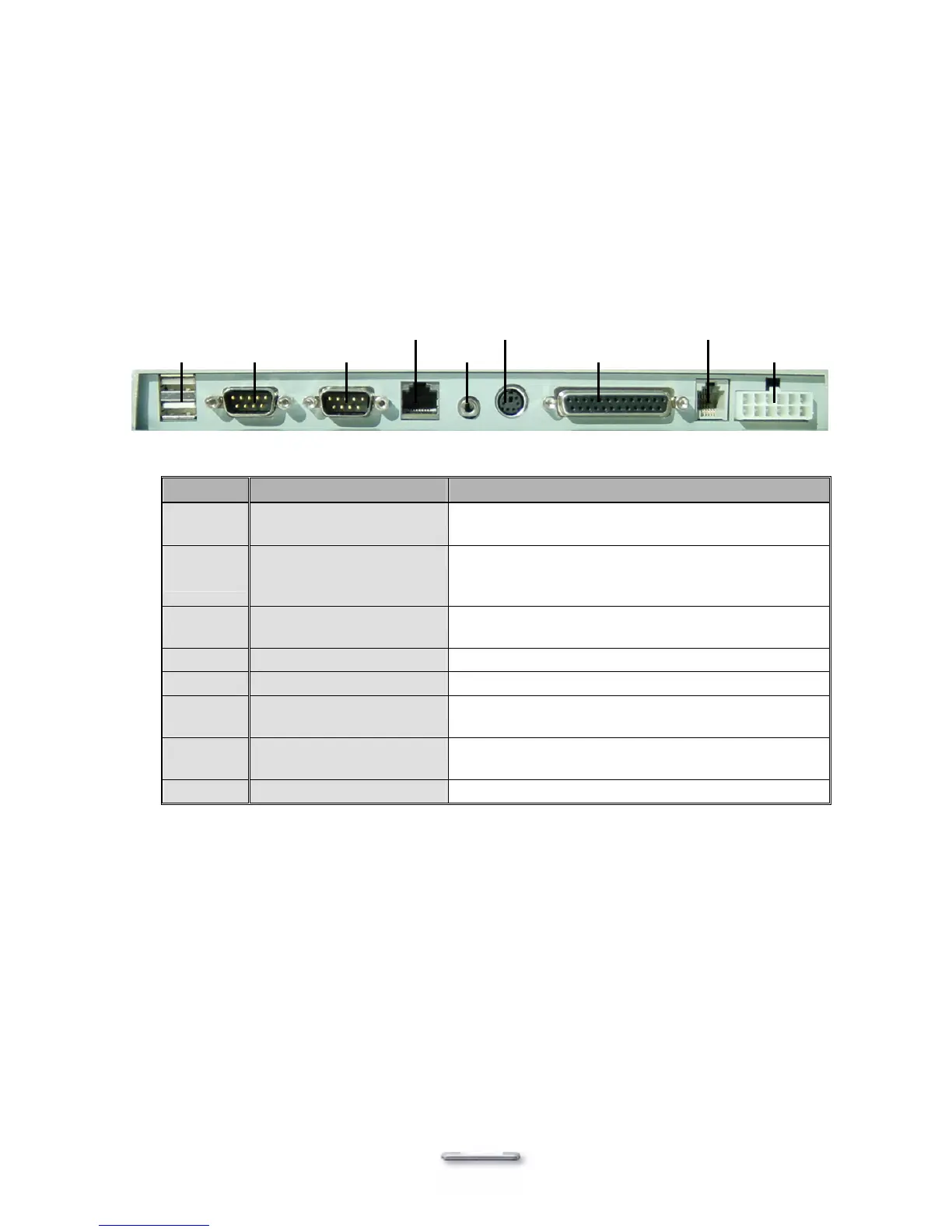

Primary Connector Panel
The primary connector panel is located on the bottom of the back on the main unit. To clearly see
the panel you must turn Model H800 upside down or remove the base.
RJ11
Cash Drawer
Connector
USB
Sound
Connector
COM1
I/O Port Connector Type Description
USB
USB The USB (Universal Serial Bus) port can be used to
connect USB devices.
COM1
COM2
DSUB Connector The serial ports COM1/COM2 can be used to
connect serial devices such as a mouse or a
fax/modem.
LAN
LAN RJ45 Connector The LAN port is used to hook Model H800 to a
local area network.
Sound
Earphone Connector The audio port is for speakers.
Mouse
PS/2 Mouse Connector PS2 ports can be used for a mouse.
LPT1
DSUB Connector The parallel port LPT1 can be used to connect
parallel devices, such as a printer.
Drawer
RJ11 Connector Cash Drawer Connector, 12 V Actuation support for
solenoid.
Power
DC Power Connector Connects Model H800 to the power supply.
7
