One Touch H800 - I;O Board Configuration; 9000 PB0560 I;O Board Pin Definition

FEB-4720 Main Board
I/O board Configuration
The main I/O board 9000PB0560 connects the primary I/O ports to the mainboard. Including: DC
power input, COM1 and COM2, LPT1, PS/2 mouse, audio, cash drawer port, USB and LAN port.

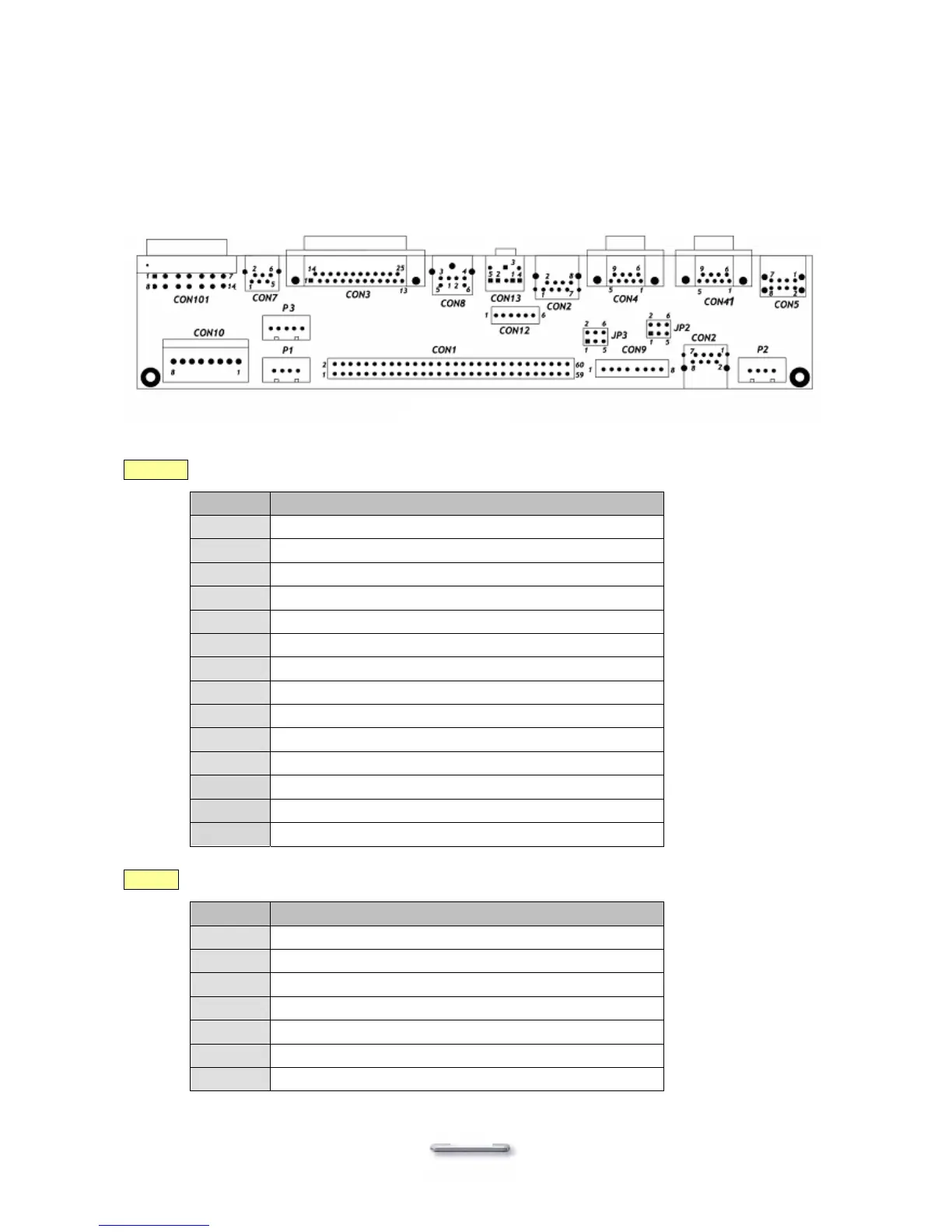

9000PB0560 I/O Board Pin Definition
CON101 System DC power connector
PIN No. Description
1
DC +12V
2
+5SB
3
DC+12V
4
GND
5
DC+12V
6
GND
7
NC
8
DC +5V
9
DC +5V
10
DC+12V
11
GND
12
GND
13
PSON
14
NC
CON10 DC power connector for Mainboard
PIN No. Description
1
DC +5V
2
DC +5V
3
+5SB
4
DC +12V
5
PSON
6
GND
7
GND
9000PB0560
