One Touch H800 User Manual

FEB-4720 Main Board
Magnetic Card Reader Installation
An optional Magnetic Card Reader (MCR) can be installed on the right side of Model H800.
Magnetic Card Reader (MCR)

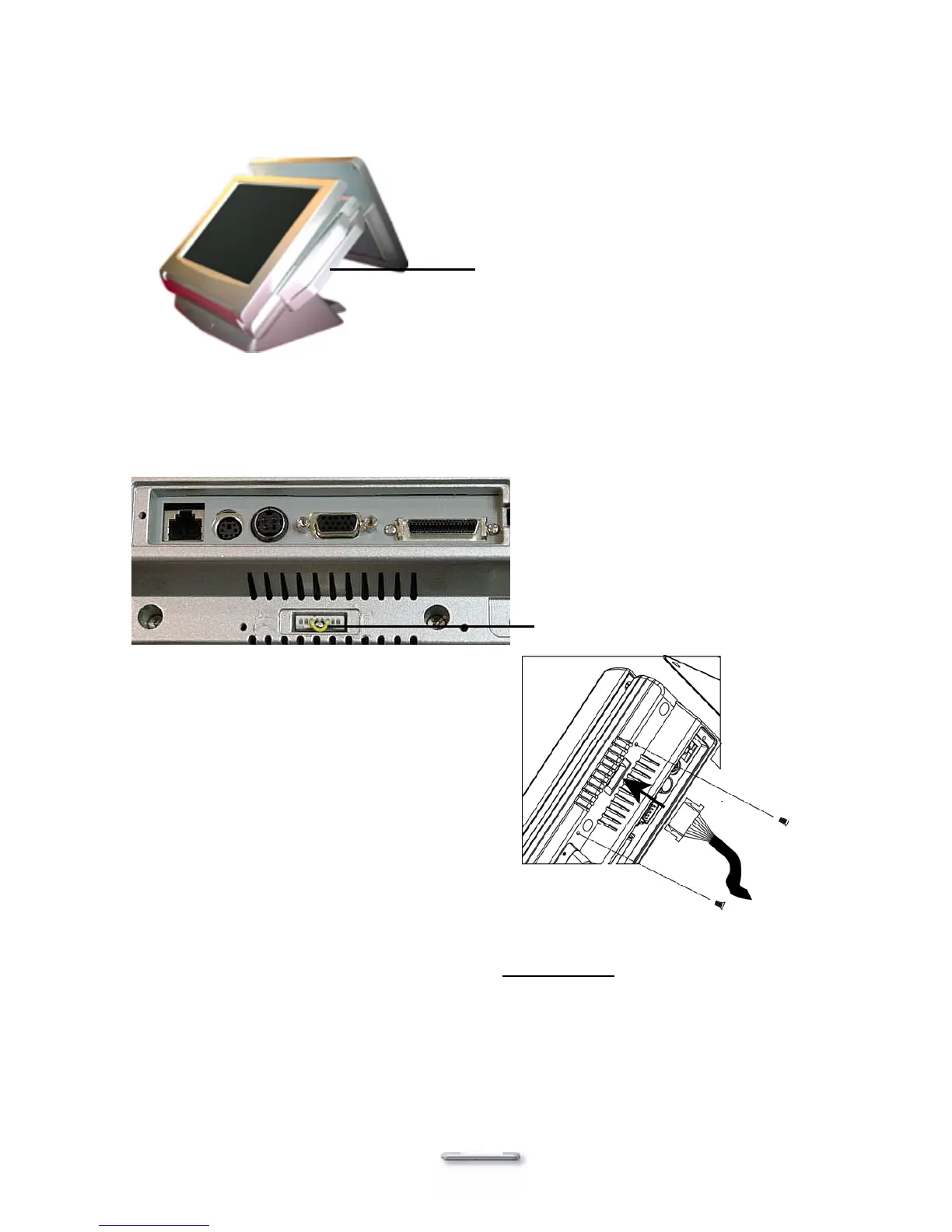

Installing an MCR
9. Turn off system power.
10. Unplug loopback from the MCR socket. The MCR socket is found on the right side on the
back of Model H800.
Loopbac
k
1. Connect MCR cable.
2. Install MCR to the main unit (2 screws).
3. Turn on system power.
Note: If the MCR does not work normally, please refer to troubleshooting.
Attention: The loopback or the MCR cable must be inserted in the socket for an external keyboard to
function with Model H800.
17
