FEB-4720 Main Board
Second LCD with Touch Screen Installation
An optional second touch screen can be easily installed on Model H800.

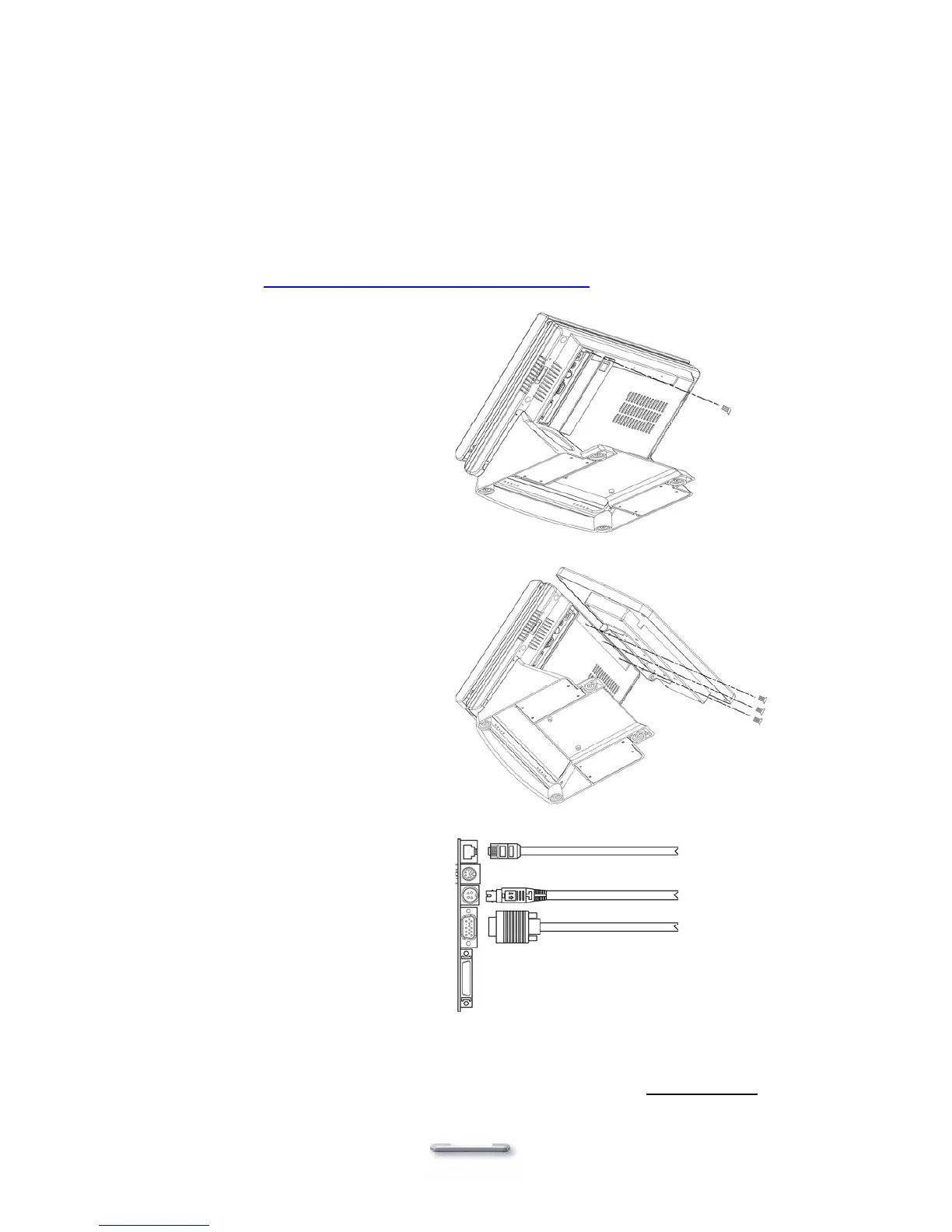

Installing second LCD with touch panel
1. Turn off system power.
2. Make sure JP1 and JP2 on the secondary I/O board 9000PB0270 are correctly set.
Please refer to
Mode2 RJ45 connector used for touch screen.
3. Remove the secondary I/O port
cover (1 screw).
4. Attach the second LCD/touch panel
to the back of the main unit with 3
screws.
5. Attach the second LCD/touch panel
VGA cable into the VGA2 port on
the I/O panel.
6. Attach the second LCD/touch panel
power cable into the Power port on
the I/O panel.
7. Attach the second LCD/touch panel
RJ45 cable into the VFD port on the
I/O panel.
8. Turn on system power.
Note: If the second LCD or touch screen does not work normally, please refer to troubleshooting.
16
