Model H800 Assembly
Please make sure that the system power is turned off and the power supply is disconnected when
making any hardware changes on Model H800.
Hard Disk Drive Installation
Model H800 comes with an empty hard disk Drive (HDD) unless a special request has been
made.
Installing a HDD
1. Turn off system power and remove power cable from Model H800.

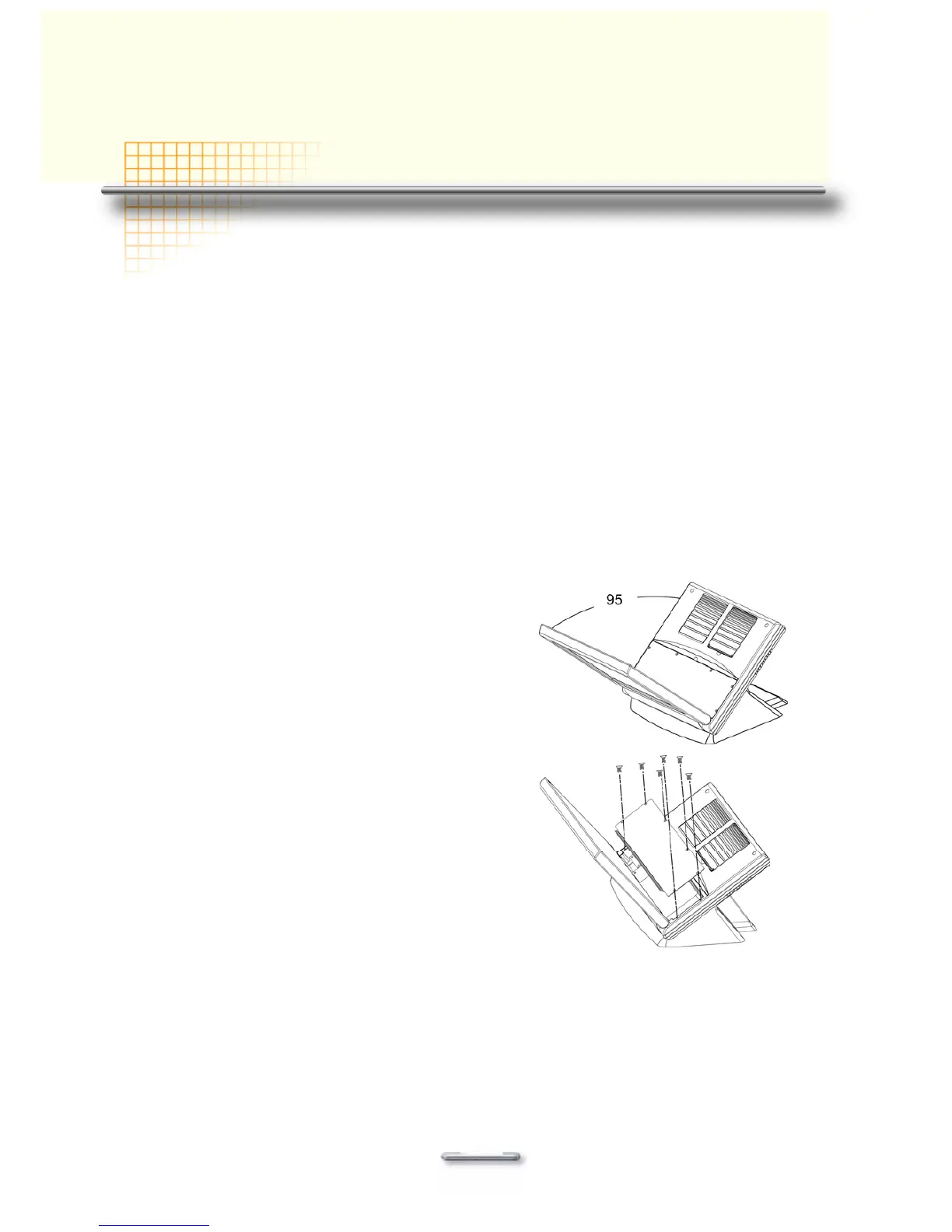

2. Tilt the main LCD to 95 degrees.
3. Remove the 6 screws from the HDD metal cover
(using a small Phillips screwdriver) and lift off the
cover.
