FEB-4720 Main Board

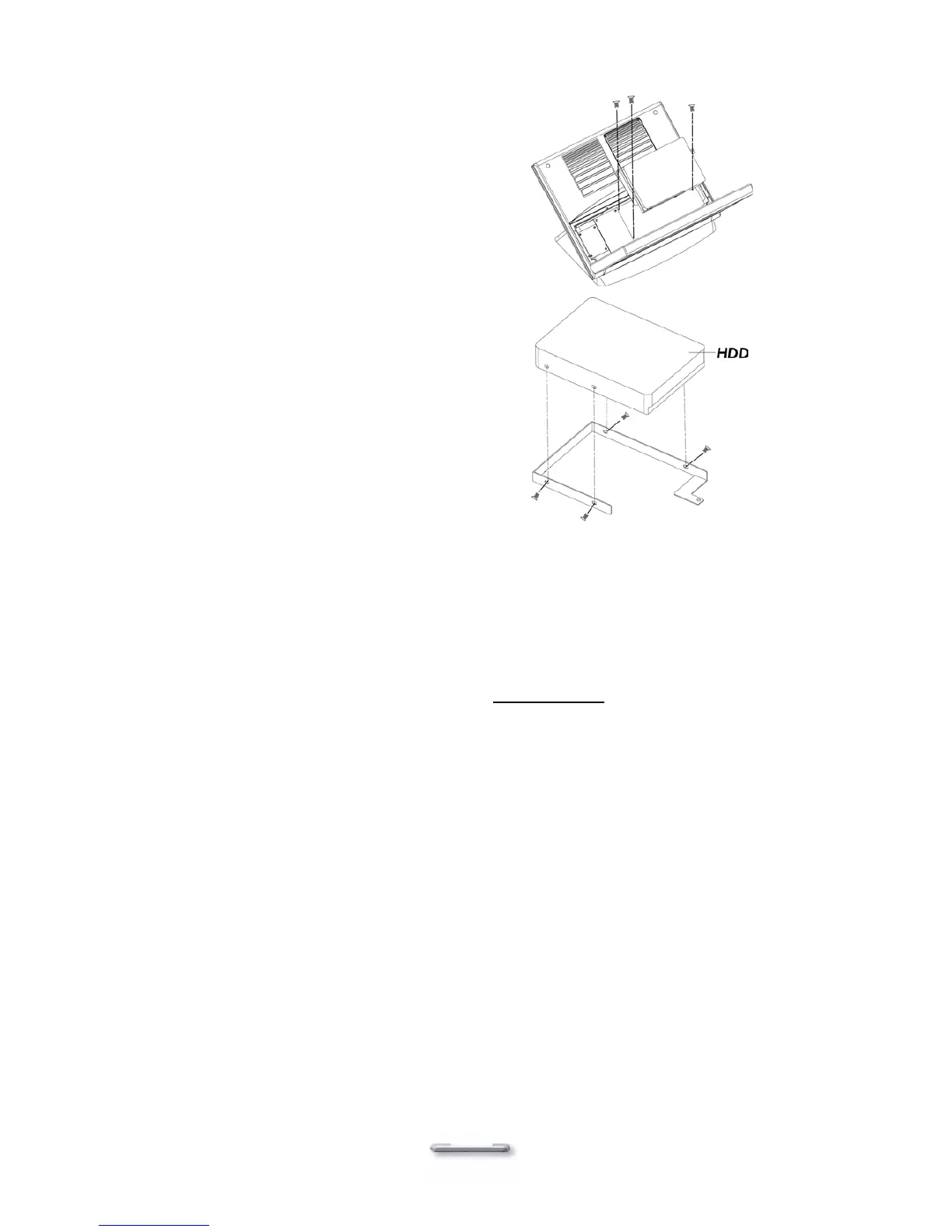

4. Remove the 3 screws holding the HDD frame in
place.
5. Attach the frame to the HDD (4 screws).
6. Connect the HDD power cable and IDE cable. The red stripe on the ribbon cable should be
aligned with PIN 1 on the IDE connector of HDD.
7. Reinstall the HDD frame with HDD attached in Model H800 (3 screws).
8. Replace cover and 6 screws.
9. Connect the main unit power.
Note: If the HDD does not work normally, please refer to troubleshooting.
