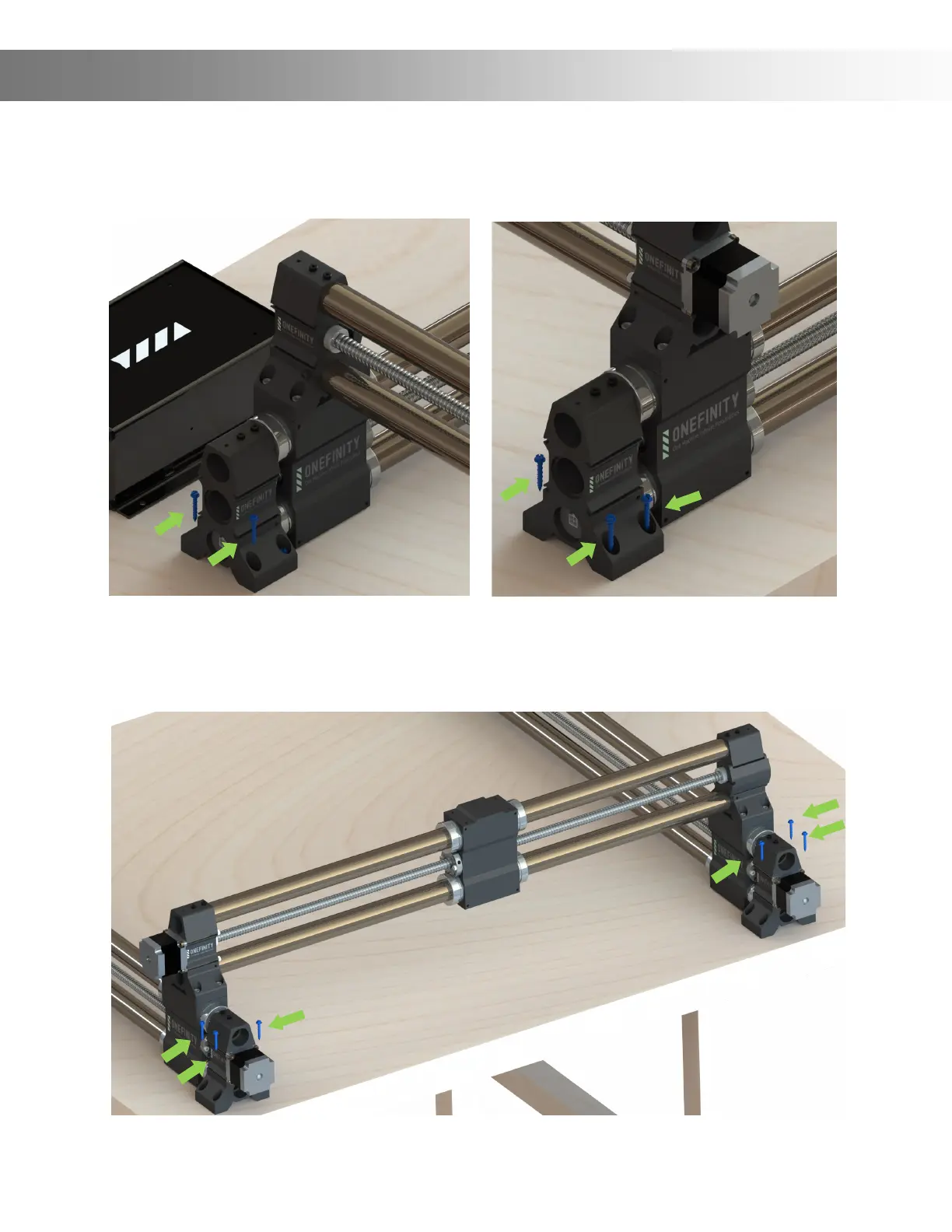

Step 22: With the X-Rail all the way to the front again, nish fastening the Y-Rails to the
table using another three (3) Y-Rail Mounting screws per side (Green Arrow).
Assembly Instructions
Step 23: Repeat steps 19 and 20 to jog the Y-Axis until the X-Rail is to the back of the
machine again. Finish fastening the Y-Rails to the table using the remaining three (3)
Y-Rail Mounting Screws per side (Green Arrows).
