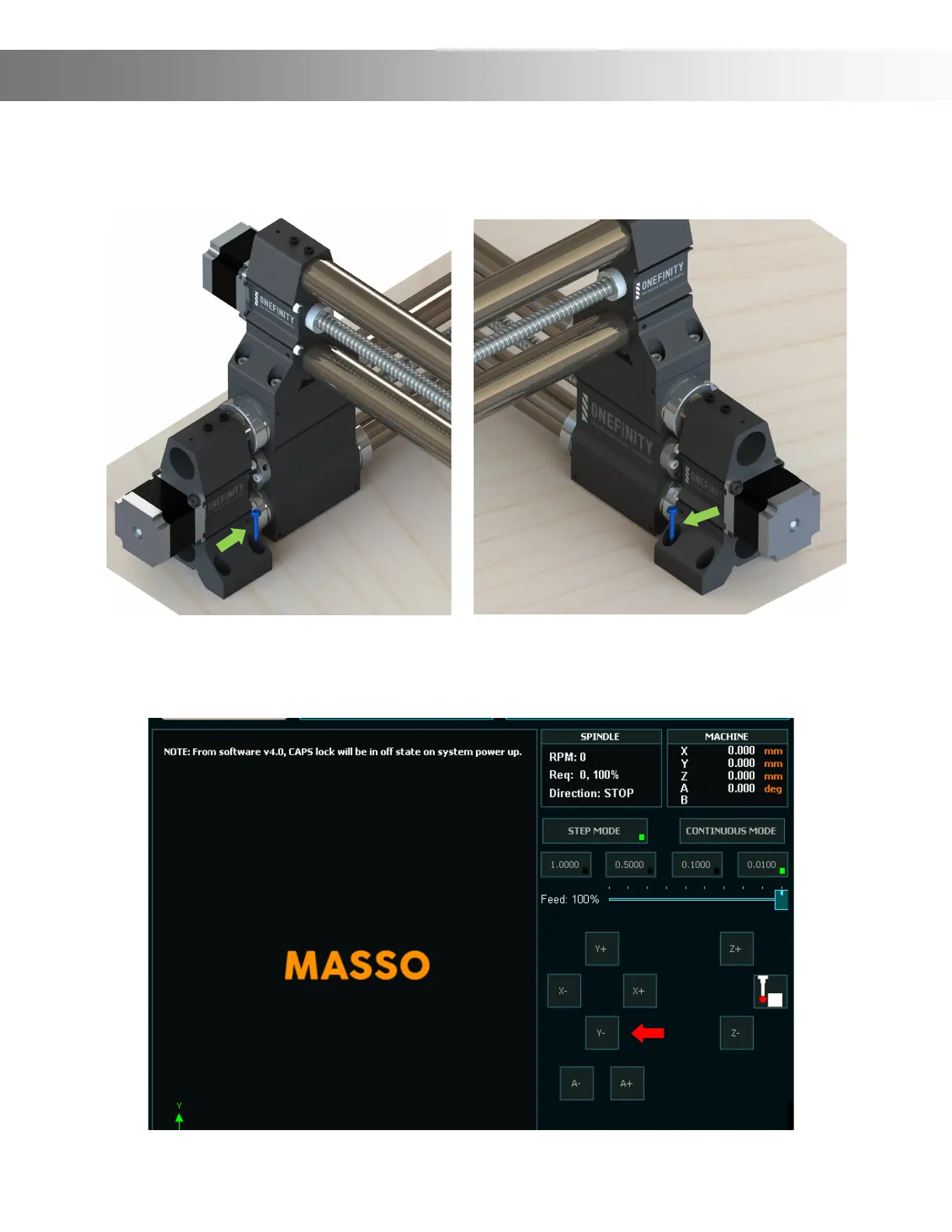

Step 20: After moving the X-Axis all the way to the back, fasten the back of the Y-Rails to
your table using only one (1) Y-Rail Mounting Screw per side (Green Arrow).
Assembly Instructions
Step 21: We will now jog the Y-Axis to bring the X-Rail back to the front of the machine.
Press and hold the Y– button (Red Arrow) until the X-Rail is back to the front of the machine.
Step 19:
ensure you are on the F3 page (Green Arrow). Next, press the Continuous Mode button (Pink
Arrow). Now, press and hold the Y+ button (Yellow Arrow) until the X
to the back of the machine.
by sliding the Feed bar up (Red Arrow)
