oneida-air.com 19
Wall

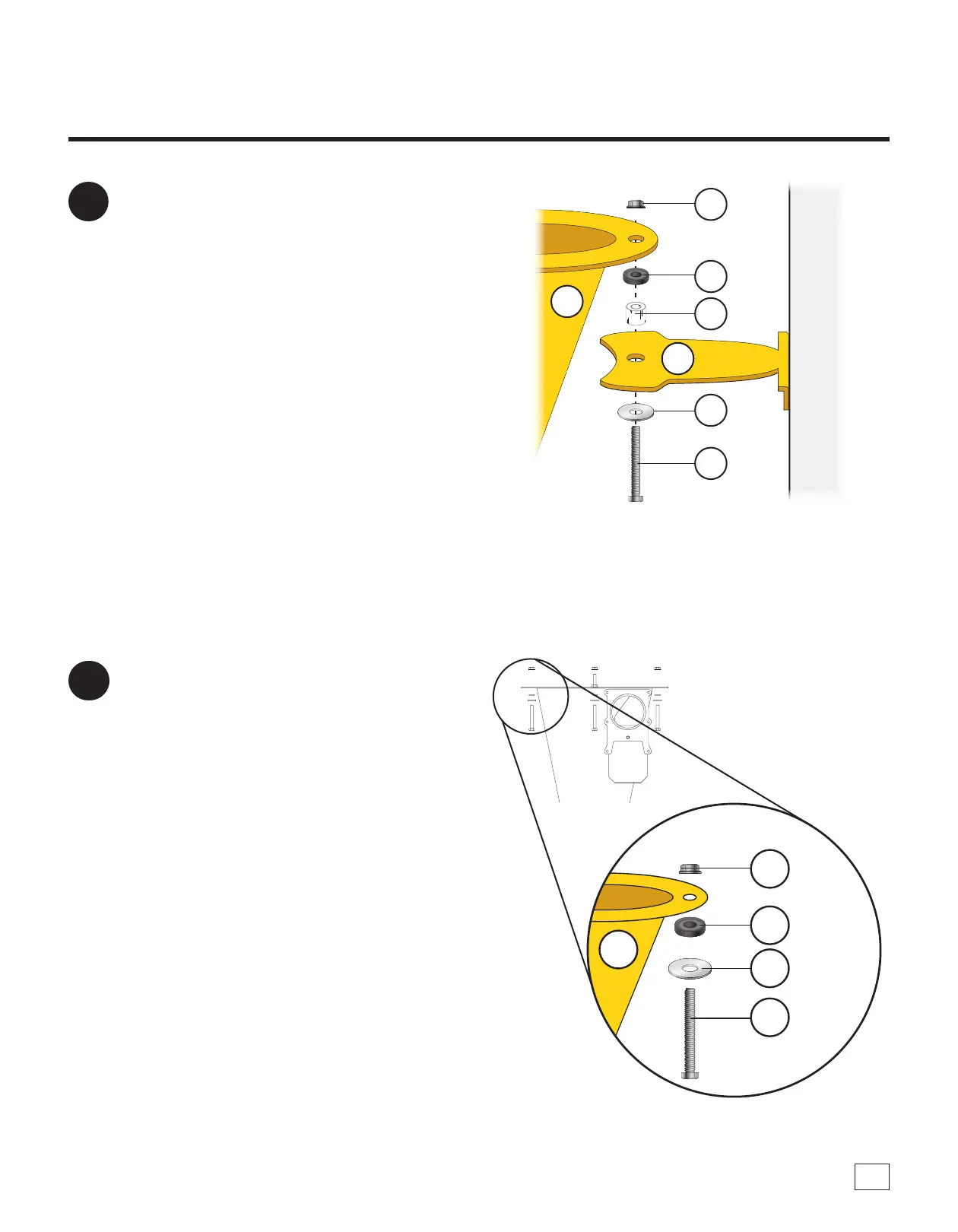

FIG. 12
G11
G9
G12
G13
E
G8
G7
Assembly Instructions (Continued)
FIG. 13
G11
G9
E
G8
G7
13
Secure the Rear Support Brace (G13) to the
Cyclone (E) using a 2-1/2" Hex Head Bolt
(G7), Flat Washer (G8), Nylon Spacer (G12),
Rubber Washer (G9), and Whiz-Lock Nut
(G11) as shown in [FIG 12].
Note: Ensure that the Whiz-Lock Nuts are
torqued down so that the rubber washers are
rmly compressed - this will prevent air leaks.
14
Install the three remaining Hex Head Bolts
(G7), Flat Washers (G8), Rubber Washers
(G9), and Whiz-Lock Nuts (G11) to the three
remaining holes in the Cyclone’s (E) upper
ange [FIG 13].
Note: Ensure that the Whiz-Lock Nuts are
torqued down so that the rubber washers are
rmly compressed - this will prevent air leaks.
