Assembly Instructions (Continued)
15

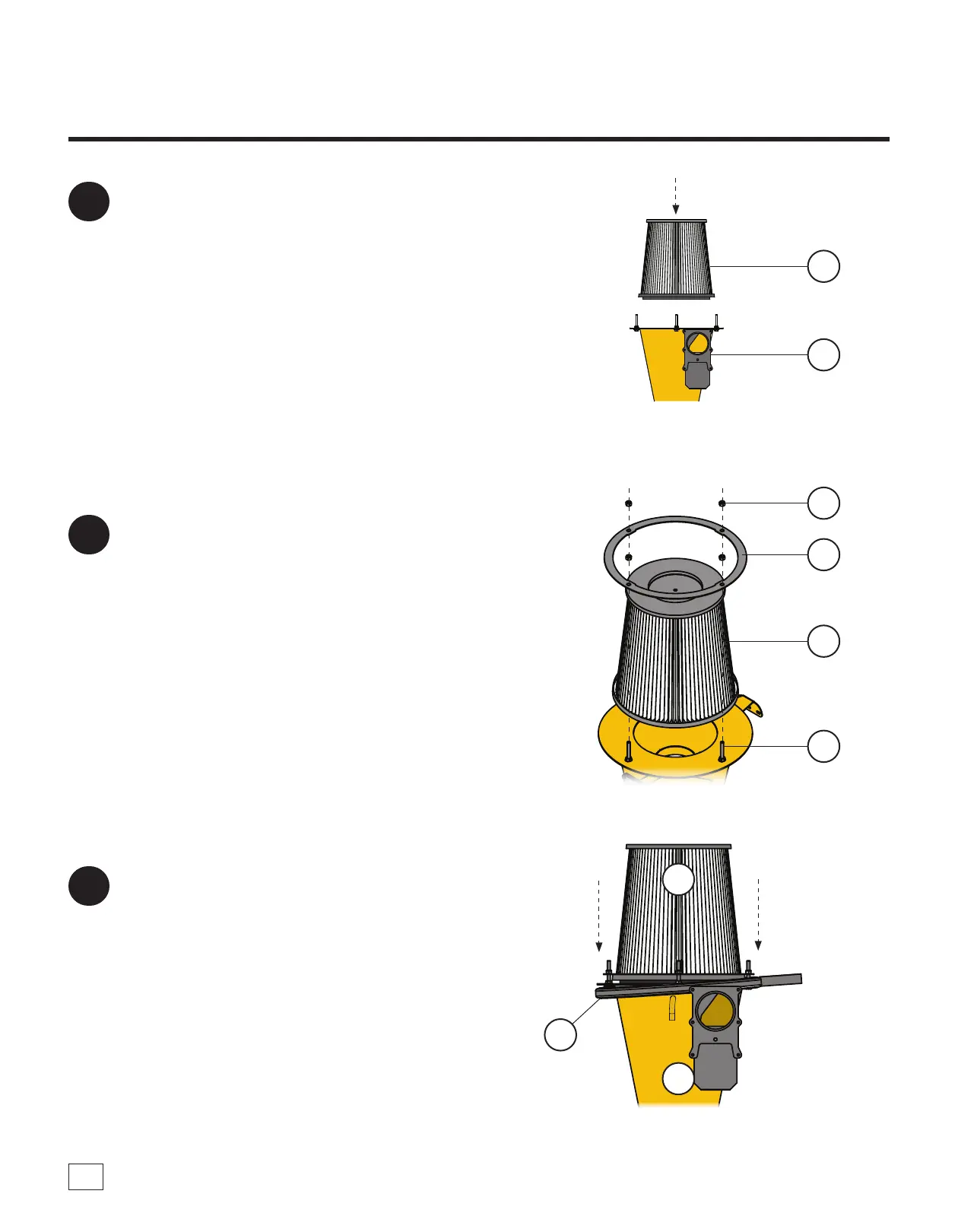

Place the Filter (C) on top of the Cyclone (E)
with the open side facing down [FIG. 15].
Note: Position the Filter (C) on the Cyclone (E)
so that is centered between all four Hex Head
Bolts (G7).
16
Slide the Filter Hold-Down Ring (B) over the
Filter (C) and the previously installed bolts
(G7) and secure in place using four Nylock
Nuts (G10) [FIG .16].
Note: Tighten hardware so that the Filter's pre-
installed foam gasket is rmly compressed (by
roughly 50%).
17
Open and slide the Ring Clamp (D) over the
assembly so that it rests outside the upper
ange of the Cyclone (E) [FIG. 17].
FIG. 16
FIG. 17
FIG. 15
G10
B
C
C
C
E
E
D
G7
