Onkyo 29400021 - Connecting a Camcorder or Other Device

36
Connecting the AV receiver—Continued

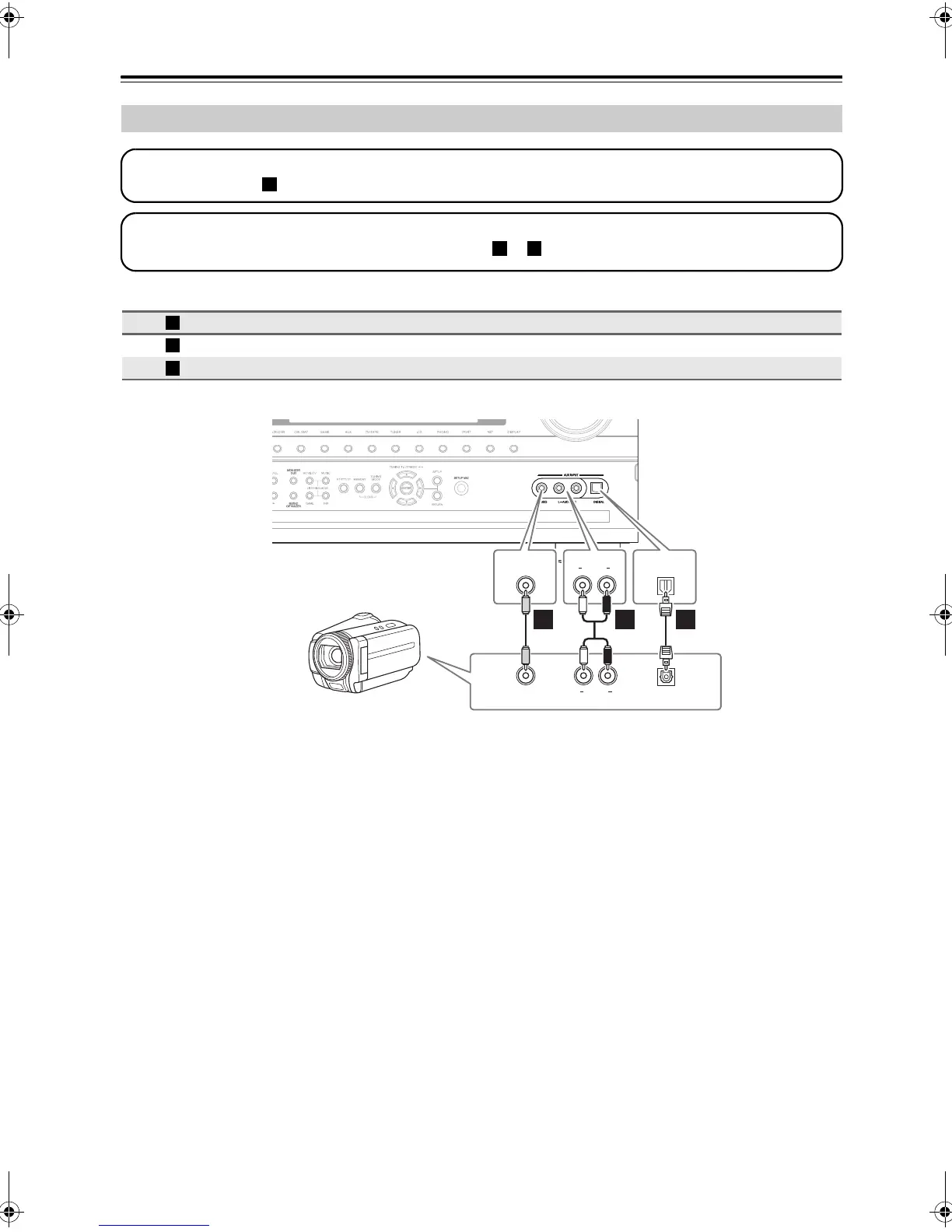

Connecting a Camcorder or Other Device
Connection AV receiver Signal flow Camcorder etc.
AUX INPUT VIDEO ⇐ Composite video output
AUX INPUT L-AUDIO-R ⇐ Analog audio L/R output
AUX INPUT DIGITAL ⇐ Digital optical output
Step 1: Video Connection
Make the connection .
A
Step 2: Audio Connection
Choose an audio connection that matches your camcorder ( or ), and then make the connection.
a b
A
a
b
AUDIO
OUT
VIDEO
OUT
LR
VIDEO
AUDIO
LR
AUX INPUTAUX INPUT
OPTICAL
OUT
DIGITAL
AUX INPUT
A b
a
Camcorder etc.
