35
Connecting the AV receiver—Continued
See “Connecting Components with HDMI” on page 30 for HDMI connection information.
With connection , you can listen to and record audio from your TV or listen in Zone 2 or Zone 3.
To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2 or Zone 3 as well, use
and , or and .)
If your TV has no audio outputs, connect an audio output from your VCR or cable or satellite receiver
to the AV receiver and use its tuner to listen to TV programs through the AV receiver (see pages 38 and
40).

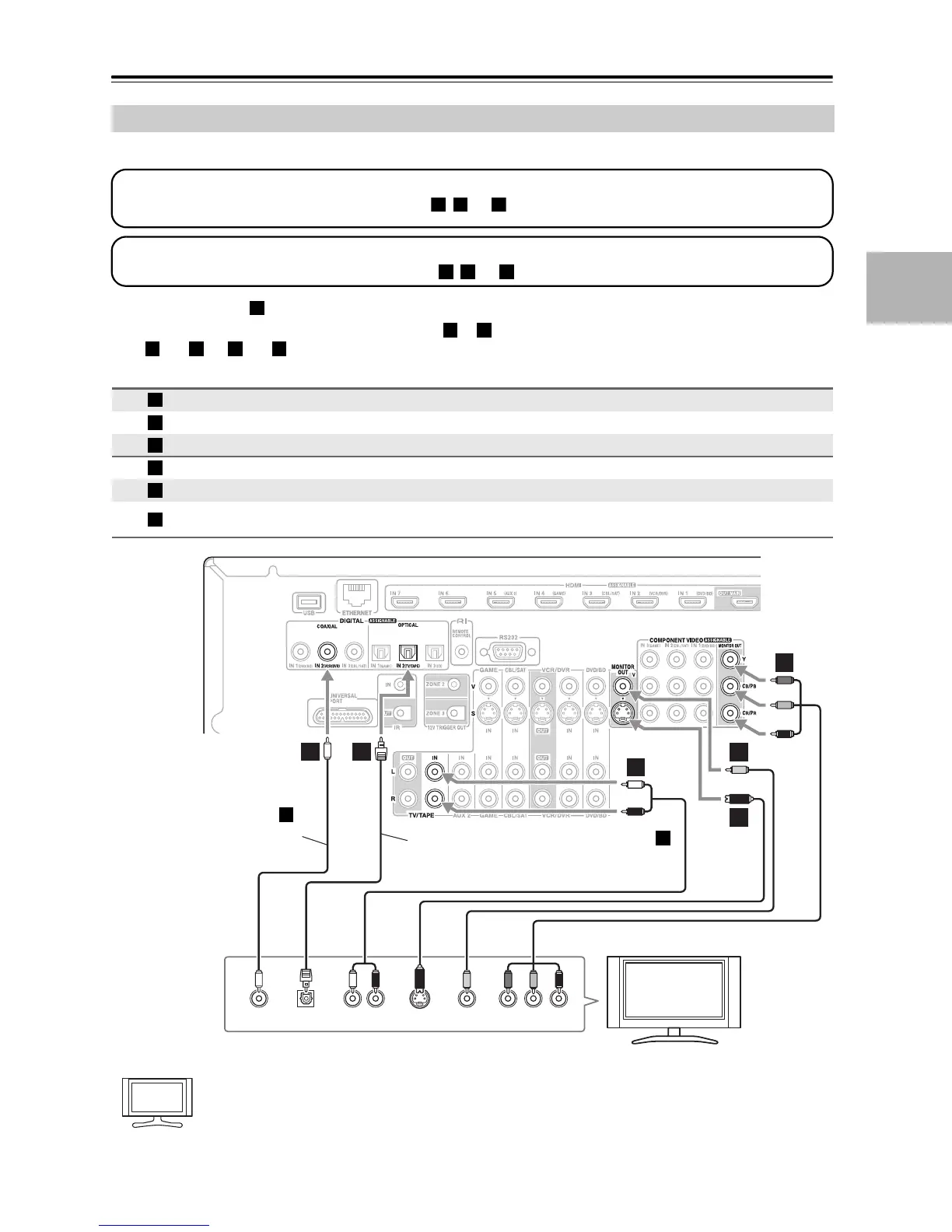

Connecting a TV or Projector
Connection AV receiver Signal flow TV, projector, etc.
COMPONENT VIDEO MONITOR OUT Component video input
MONITOR OUT S S-Video input
MONITOR OUT V Composite video input
TV/TAPE IN L/R Analog audio L/R output
DIGITAL COAXIAL IN 2 (VCR/DVR) Digital coaxial output
DIGITAL OPTICAL IN 1 (GAME) (TX-NR3007)
DIGITAL OPTICAL IN 2 (TV/TAPE) (TX-NR5007)
Digital optical output
Step 1: Video Connection
Choose a video connection that matches your TV ( , , or ), and then make the connection.
A B C
Step 2: Audio Connection
Choose an audio connection that matches your TV ( , , or ), and then make the connection.
a b c
a
b c
a b a c
A
B
C
a
b
c
COAXIAL
OUT
OPTICAL
OUT
AUDIO
OUT
LR
S VIDEO
IN
VIDEO
IN COMPONENT VIDEO IN
YPB PR
a
A
C
B
b
c
TV, projector,
etc.
When you use connection ,
you need to assign the digital
audio input (see page 56).
b
(TX-NR3007) When you use connection ,
you need to assign the digital audio input
(see page 56).
c
Hint!
