46

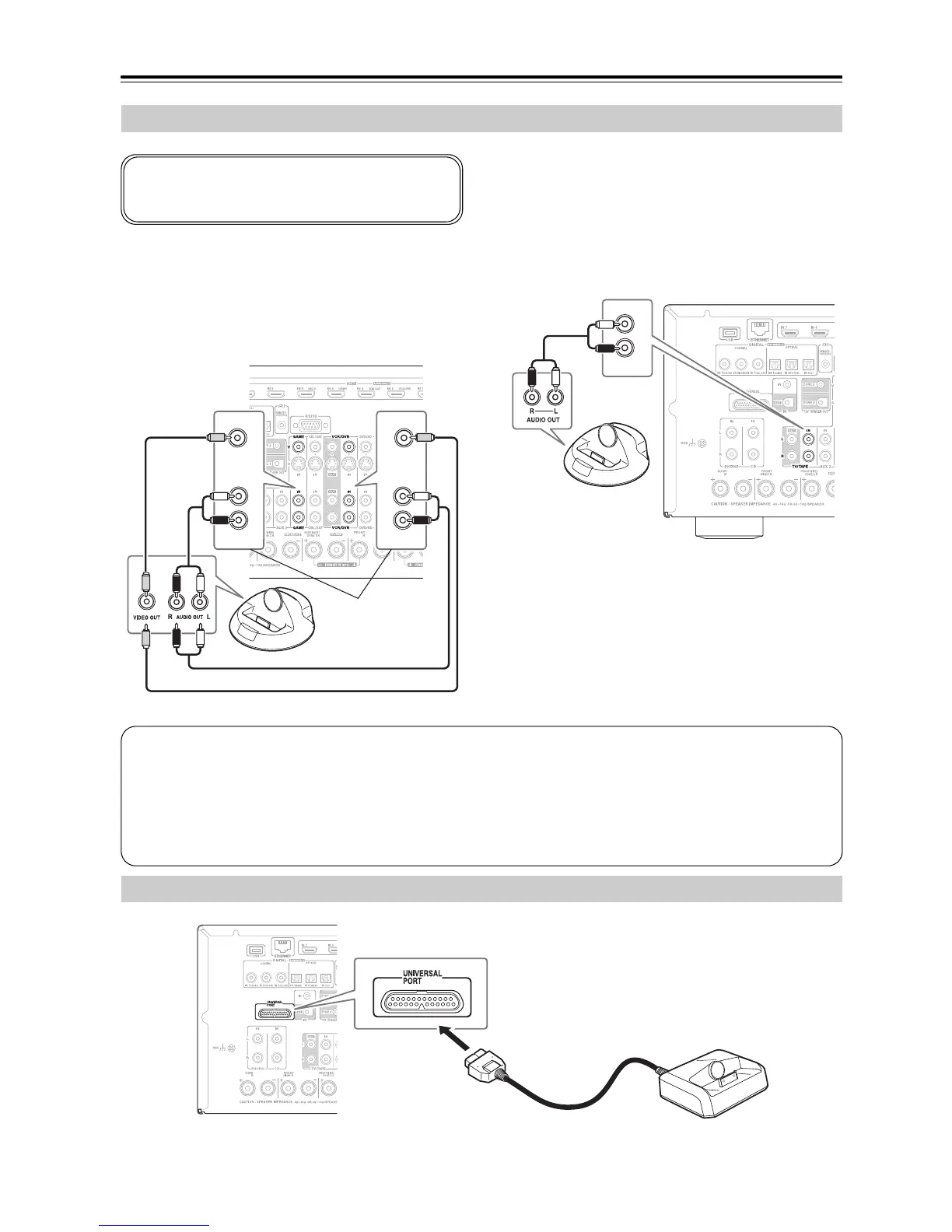

Connecting the AV receiver—Continued
■ If Your iPod Supports Video:
Connect your RI Dock’s audio output jacks to the
AV receiver’s GAME IN or VCR/DVR IN L/R jacks,
and connect its video output jack to the AV receiver’s
GAME IN V or VCR/DVR IN V jack. (Onkyo DS-
A2 hookup shown below.)
■ If you have an Onkyo DS-A1 RI Dock
Connect its video output jack to the AV receiver’s
GAME IN S or VCR/DVR IN S jack.
■ If Your iPod Doesn’t Support Video:
Connect your RI Dock’s audio output jacks to the
AV receiver’s TV/TAPE IN L/R jacks. (Onkyo DS-
A2 hookup shown below.)
Note:
When UP-A1 Dock that seated iPod is connected, the power consumption on standby mode slightly increases.
Connecting an RI Dock
Not all iPod models output video. For information
about which iPod models are supported by the RI
Dock, see the RI Dock’s instruction manual.
L
R
IN
GAME
V
GAME
L
R
IN
IN
VCR/DVR
VCR/DVR
V
V
IN
Make either
connection.
L
R
IN
TV/TAPE
Connecting a Universal Port Option Series
Notes:
• Enter the appropriate remote control code before using the AV receiver’s remote controller for the first time (see
page 141).
• Connect the RI Dock to the AV receiver with an u cable (see page 47).
• Set the RI Dock’s RI MODE switch to “HDD” or “HDD/DOCK”.
• Set the AV receiver’s Input Display to “DOCK” (see page 60).
• See the RI Dock’s instruction manual for more information.
ex. UP-A1
To Next Page
