41
Connecting the AV receiver—Continued
• With connection , you can listen to and record audio from your game console or listen in Zone 2 or Zone 3.
• To enjoy Dolby Digital and DTS, use connection . (To record or listen in Zone 2 or Zone 3 as well, use
and .)

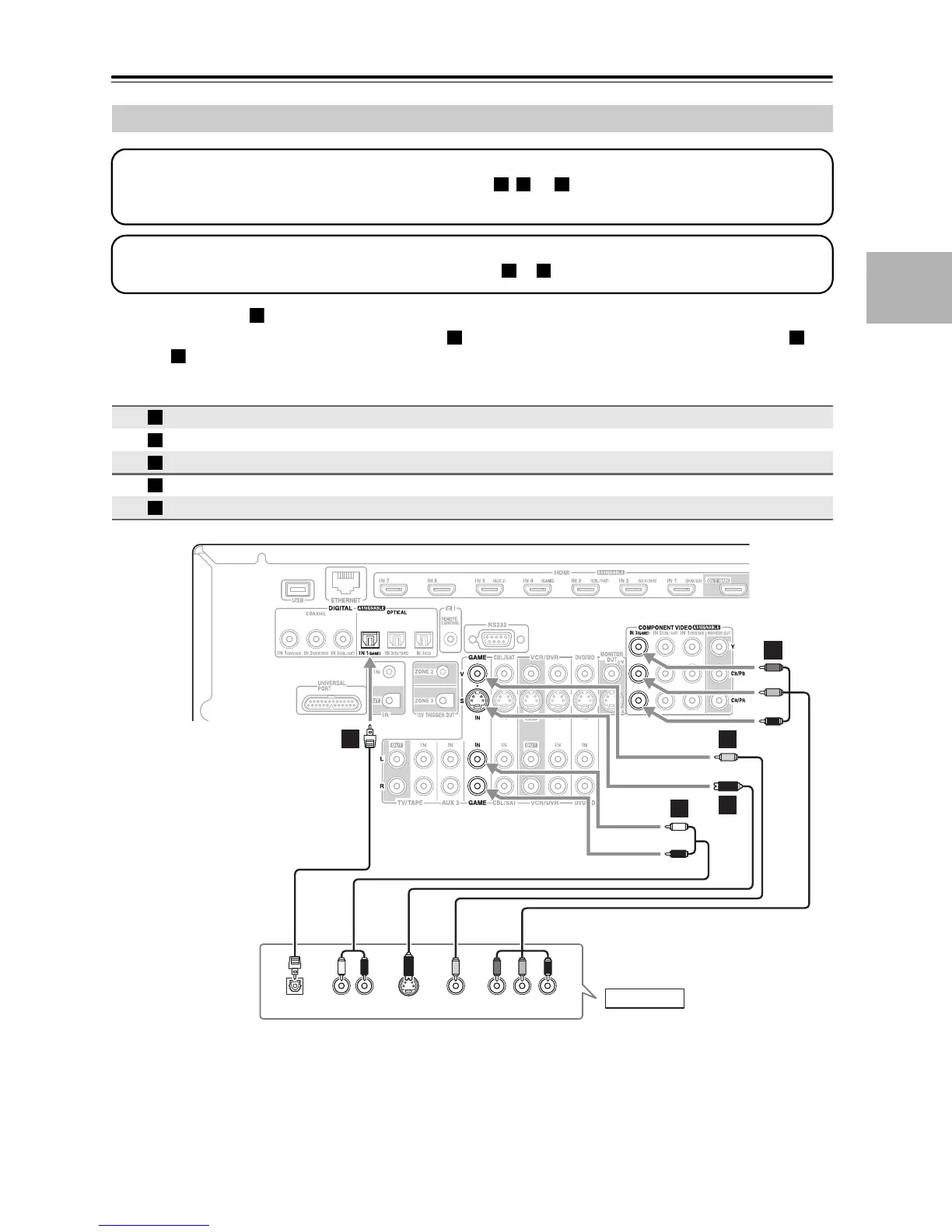

Connecting a Game Console
Connection AV receiver Signal flow Game console
COMPONENT VIDEO IN 3 (GAME) ⇐ Component video output
GAME IN S ⇐ S-Video output
GAME IN V ⇐ Composite video output
GAME IN L/R ⇐ Analog audio L/R output
DIGITAL OPTICAL IN 1 (GAME) ⇐ Digital optical output
Step 1: Video Connection
Choose a video connection that matches your game console ( , , or ), and then make the connection.
You must connect the AV receiver to your TV with the same type of connection.
A B C
Step 2: Audio Connection
Choose an audio connection that matches your game console ( or ), and then make the connection.
a b
a
b a
b
A
B
C
a
b
OPTICAL
OUT
AUDIO
OUT
LR
S VIDEO
OUT
VIDEO
OUT COMPONENT VIDEO OUT
YPB PR
B
a
A
C
b
Game Console
