Connecting the AV receiver—Continued
See “Connecting Components with HDMI” on page 30 for HDMI connection information.
• With connection , you can listen to and record audio from your DVD player or listen in Zone 2 or Zone 3.
• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2 or Zone 3 as well, use
and , or and .)
• If your DVD player has main left and right outputs and multichannel left and right outputs, be sure to use the
main left and right outputs for connection .

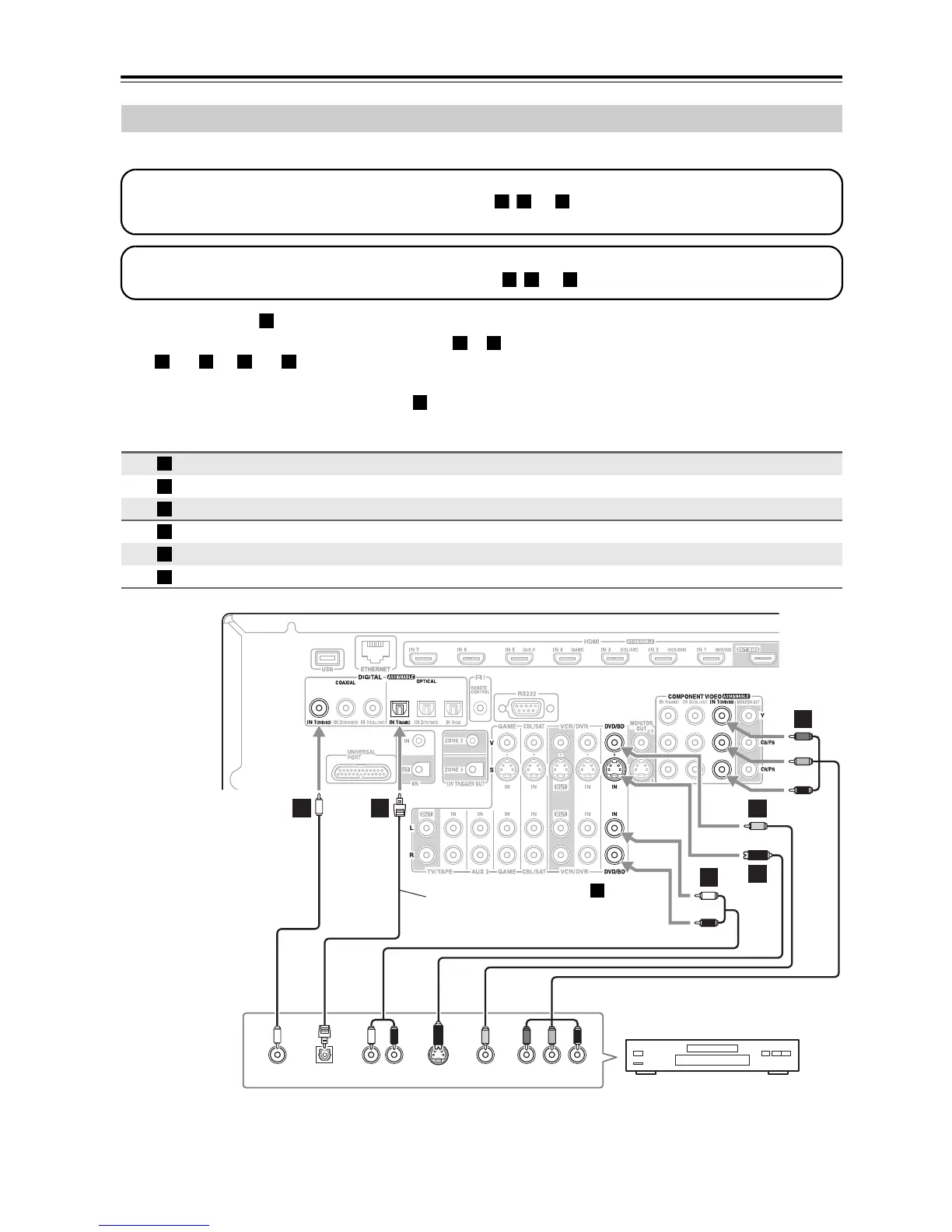

Connecting a DVD Player
Connection AV receiver Signal flow DVD player
COMPONENT VIDEO IN 1 (DVD/BD) ⇐ Component video output
DVD/BD IN S ⇐ S-Video output
DVD/BD IN V ⇐ Composite video output
DVD/BD IN L/R ⇐ Analog audio L/R output
DIGITAL COAXIAL IN 1 (DVD/BD) ⇐ Digital coaxial output
DIGITAL OPTICAL IN 1 (GAME) ⇐ Digital optical output
Step 1: Video Connection
Choose a video connection that matches your DVD player ( , , or ), and then make the connection.
You must connect the AV receiver to your TV via the same type of connection.
A B C
Step 2: Audio Connection
Choose an audio connection that matches your DVD player ( , , or ), and then make the connection.
a b c
a
b c
a b a c
a
A
B
C
a
b
c
COAXIAL
OUT
OPTICAL
OUT
AUDIO
OUT
LR
S VIDEO
OUT
VIDEO
OUT COMPONENT VIDEO OUT
YPB PR
a
A
C
B
b
c
DVD player
When you use connection , you
need to assign the digital audio input
(see page 56).
c
