31
Connecting the AV Controller—Continued
See “Connecting Components with HDMI” on page 37 for HDMI connection information.
• With connection , you can listen to and record audio from your TV or listen in Zone 2 or Zone 3.
• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2 or Zone 3 as well, use
and , or and .)
If your TV has no audio outputs, connect an audio output from your VCR or cable or satellite
receiver to the AV controller and use its tuner to listen to TV programs through the AV controller
(see pages 34 and 36).

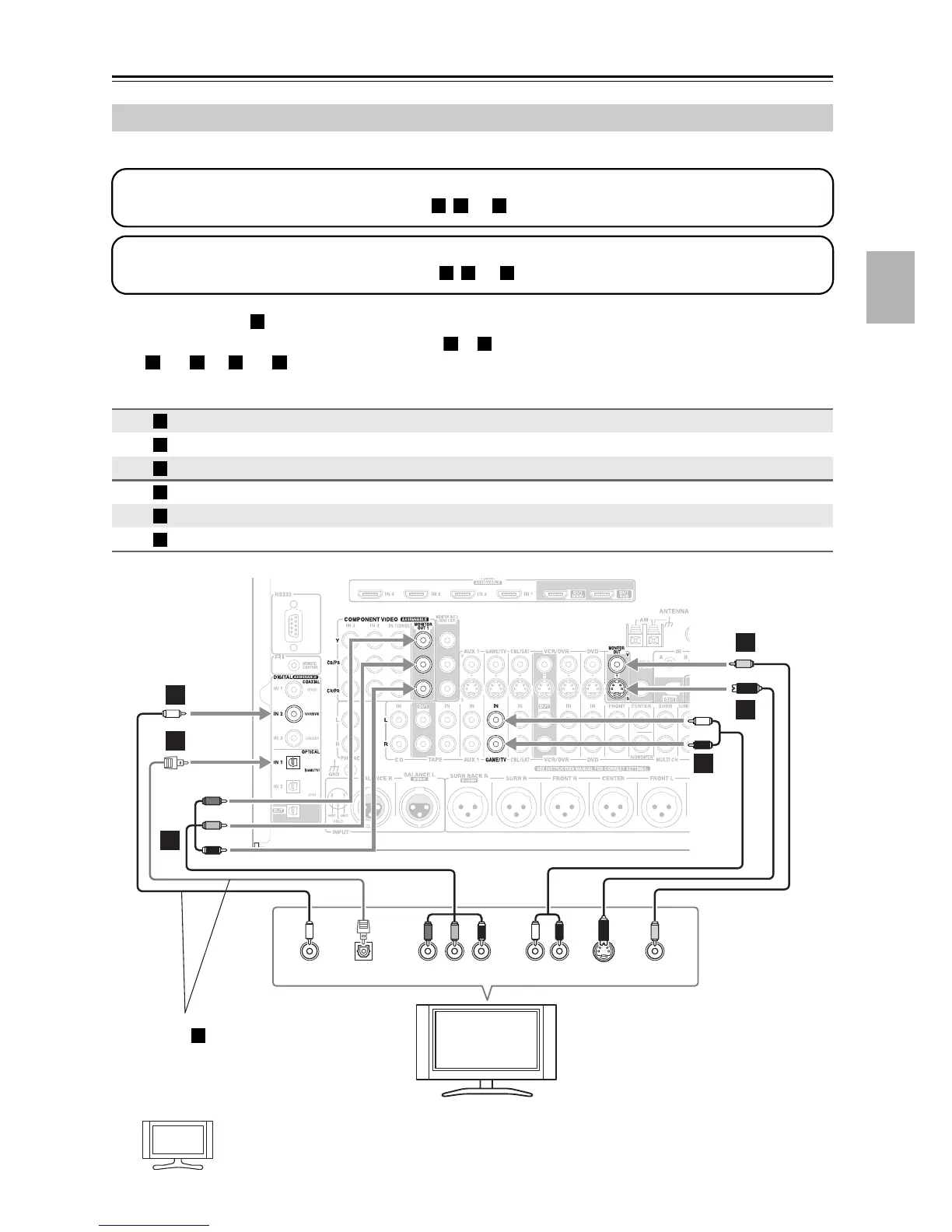

Connecting a TV or Projector
Connection AV controller Signal flow TV
COMPONENT VIDEO MONITOR OUT 1
⇒
Component video input
MONITOR OUT S
⇒
S-Video input
MONITOR OUT V
⇒
Composite video input
GAME/TV IN L/R
⇐
Analog audio L/R output
DIGITAL COAXIAL IN 2 (VCR/DVR)
⇐
Digital coaxial output
DIGITAL OPTICAL IN 1 (GAME/TV)
⇐
Digital optical output
Step 1: Video Connection
Choose a video connection that matches your TV ( , , or ), and then make the connection.
A B C
Step 2: Audio Connection
Choose an audio connection that matches your TV ( , , or ), and then make the connection.
a b c
a
b c
a b a c
A
B
C
a
b
c
YCOAXIAL
OUT
PB
COMPONENT VIDEO IN
P
R S VIDEO
IN
AUDIO
OUT
VIDEO
IN
LR
OPTICAL
OUT
b
c
A
B
C
B
a
C
TV, projector,
etc.
Connect one or the other
Connection must be assigned (see page 53)
b
Hint!
To Next Page
