9

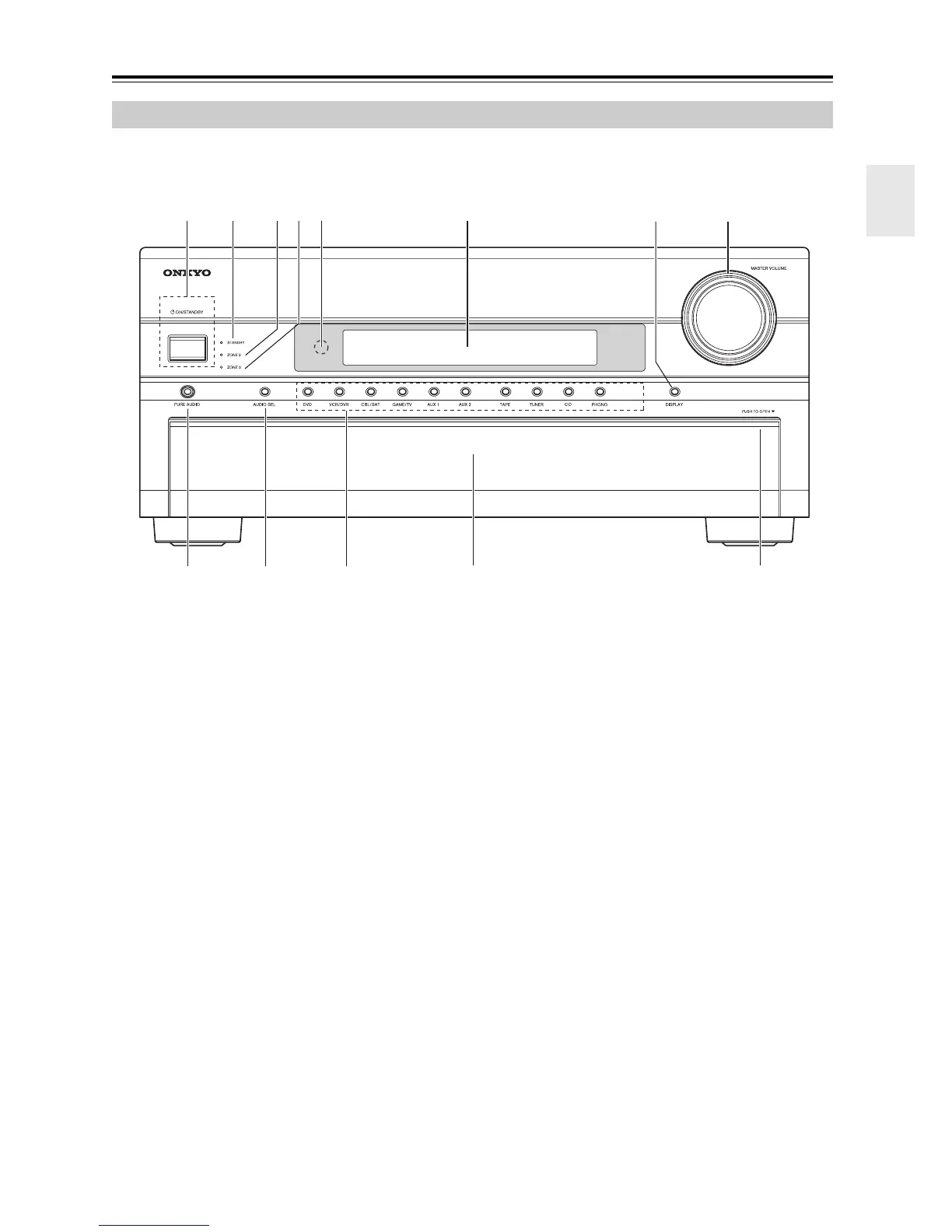

Front & Rear Panels
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
a ON/STANDBY button (45)
Sets the AV controller to On or Standby.
b STANDBY indicator (45)
Lights up when the AV controller is on Standby and
flashes while a signal is being received from the
remote controller.
c ZONE 2 indicator (118)
This indicator lights up when Zone 2 is selected.
d ZONE 3 indicator (118)
This indicator lights up when Zone 3 is selected.
e Remote-control sensor (15)
Receives control signals from the remote controller.
f Display
See “Display” on page 11.
g DISPLAY button (66)
Displays various information about the currently
selected input source.
h MASTER VOLUME control (64) and indicator
Sets the volume of the AV controller to
−∞ dB,
–81.5 dB through +18.0 dB (relative display).
The volume level can also be displayed as an abso-
lute value. See “Volume Setup” on page 108.
i PURE AUDIO button and indicator (75)
Selects the Pure Audio listening mode. The indica-
tor lights up when this mode is selected. Pressing
this button again selects the previous listening
mode.
j AUDIO SEL button (114)
Selects the audio input: analog, digital, HDMI, or
multichannel.
k Input selector buttons (64)
Select the following input sources: DVD,
VCR/DVR, CBL/SAT, GAME/TV, AUX 1,
AUX 2, TAPE, TUNER, CD, PHONO.
Front Panel
87
5 61 2
blbk9
43
Front flap
Push here to open
the flap
To Next Page
