Onkyo R-811RDS User Manual

|WEEKDAY AUTO
WEEKEND TT {7
- foe /M
sirec , N jf /
ry) =
PGM / CHK
WEEKDAY
“<Q TUNING/PRESET B>
MEMORY
(i
ces \ lap
~TIN
SAE ae
ITU
LIL
“@@ TUNING/PRESET >
6
MEMORY
(—
TAPE-2/
TAPE-1 MD PHONO TUNER wy, LINE
00000 0
INPUT SELECTOR
MEMORY
BS Se NNR aS
H or SSe0000 |
24
a ceases
iY
os

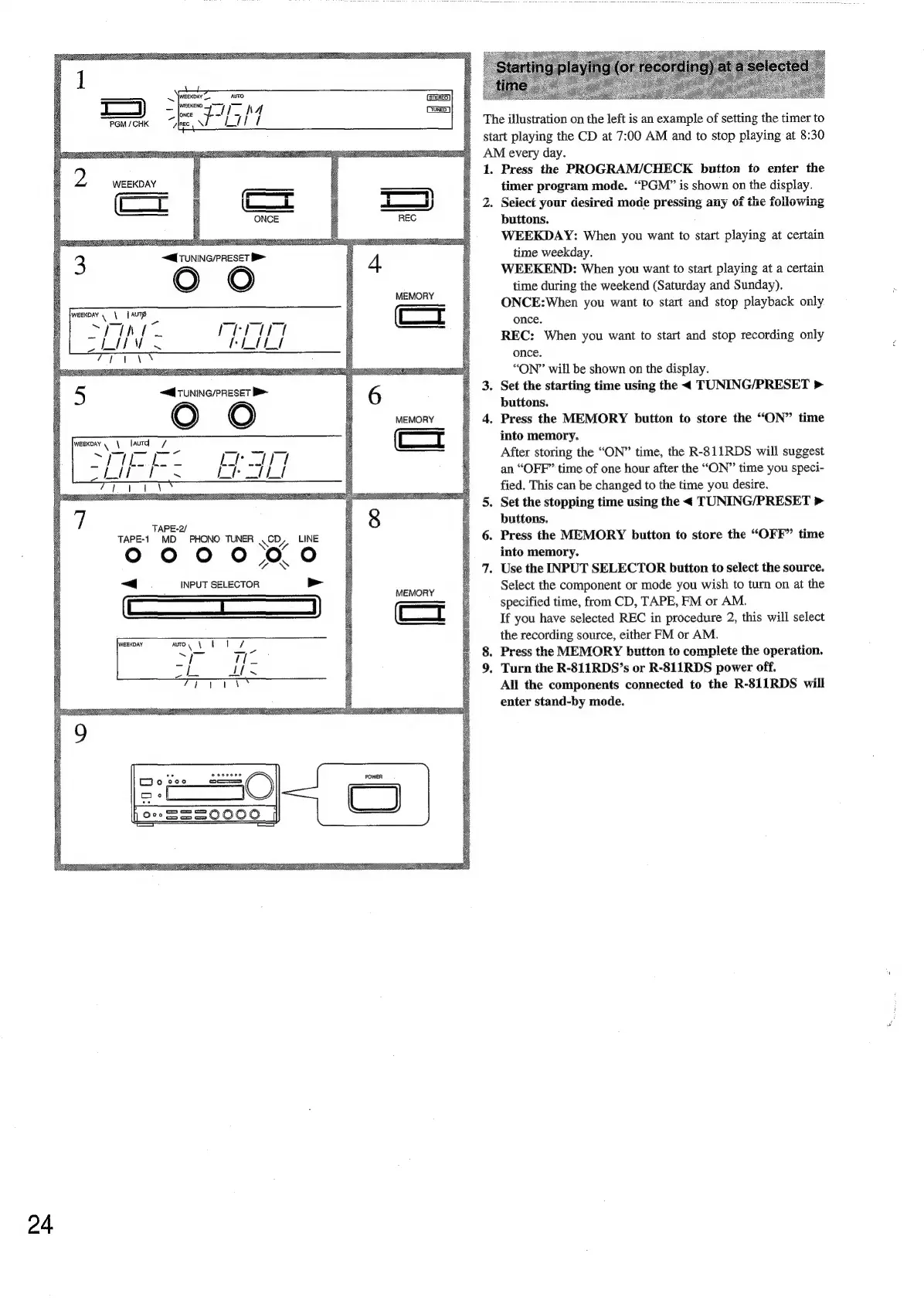

The illustration on the left is an example of setting the timer to
start playing the CD at 7:00 AM and to stop playing at 8:30
AM every day.
1.
2.
Press the PROGRAM/CHECK button to enter the
timer program mode. “PGM” is shown on the display.
Seiect your desired mode pressing any of the following
buttons.
WEEKDAY: When you want to start playing at certain
time weekday.
WEEKEND: When you want to start playing at a certain
time during the weekend (Saturday and Sunday).
ONCE:When you want to start and stop playback only
once.
REC: When you want to start and stop recording only
once.
“ON” will be shown on the display.
Set the starting time using the < TUNING/PRESET >
buttons.
Press the MEMORY button to store the “ON” time
into memory.
After storing the “ON” time, the R-811RDS will suggest
an “OFF” time of one hour after the “ON” time you speci-
fied. This can be changed to the time you desire.
. Set the stopping time using the < TUNING/PRESET >
buttons.
Press the MEMORY button to store the “OFF” time
into memory.
Use the INPUT SELECTOR button to select the source.
Select the component or mode you wish to turn on at the
specified time, from CD, TAPE, FM or AM.
If you have selected REC in procedure 2, this will select
the recording source, either FM or AM.
Press the MEMORY button te complete the operation.
Turn the R-811RDS’s or R-811RDS power off.
All the components connected to the R-811RDS will
enter stand-by mode.

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
