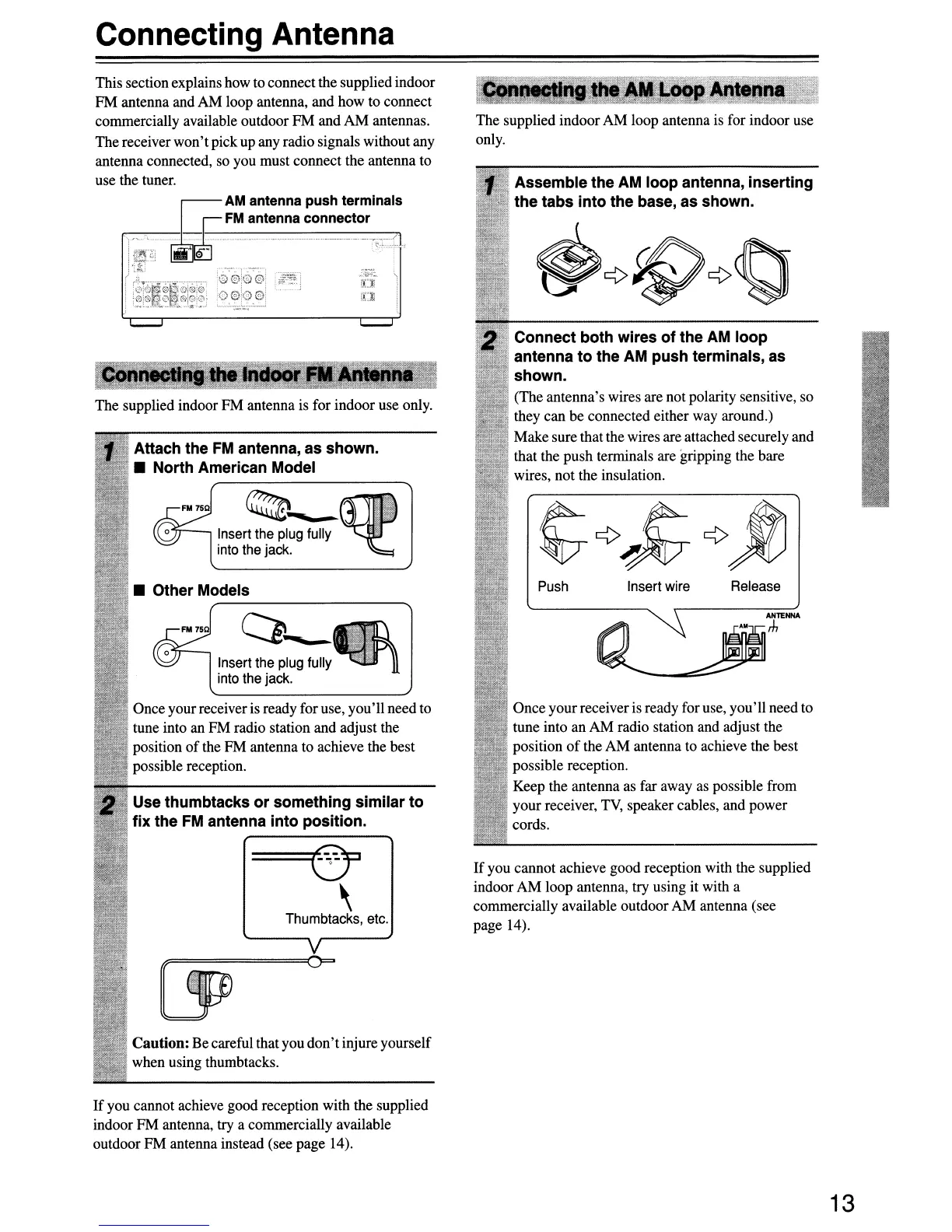

Connecting Antenna
ANTENNA
rh
ReleaseInsert wirePush
Assemble the AM loop antenna, inserting
the tabs
into the base, as shown.
Connect both wires of the AM loop
antenna to the AM push terminals, as
shown.
(The antenna's wires are not polarity sensitive, so
they can be connected either way around.)
Make sure that the wires are attached securely and
that the push terminals are gripping the bare
wires, not the insulation.
Once yourreceiver is ready foruse, you'll need to
tune into an AM radio station and adjust the
position
of the AM antenna to achieve the best
possible reception.
Keep the antenna as far away as possible from
your receiver,
TV, speaker cables, and power
cords.
The supplied indoorAM loop antenna is for indoor use
only.
If you cannot achieve good reception with the supplied
indoor
AM loop antenna, try using it with a
commercially available outdoor AM antenna (see
page 14).
.• ,O?>-:... ,
[i;:]
);::11
-.-----~-r___...-/
~=---'--:
=0
,
Thumbtacks, etc.
Q~~
Insert the plug fully ~~
into the jack.
:0~0~!501
:o.c;,~.01
FU7SQ ~~~""",
o Insert the plug fully ..
into the jack.
,:;=======0=-
l!P
Attach the FM antenna, as shown.
• North American Model
• Other Models
Once your receiver is ready for use, you'll need to
tune into an FM radio station and adjust the
position
of the FM antenna to achieve the best
possible reception.
Use thumbtacks or something similar to
fix the FM antenna into position.
Caution: Becareful that you don't injure yourself
when using thumbtacks.
AM antenna push terminals
FM antenna connector
This section explains how to connect the supplied indoor
FM antenna and AM loop antenna, and how to connect
commercially available outdoor
FM and AM antennas.
The receiver
won't pick up any radio signals without any
antenna connected, so you must connect the antenna to
use the tuner.
The supplied indoor FM antenna is for indoor use only.
If you cannot achieve good reception with the supplied
indoor
FM antenna, try a commercially available
outdoor FM antenna instead (see page 14).
13
