Onkyo TX-8255 - Connecting a Recording Component; Connecting a DVD Player; Connecting a Remote Interactive Dock (RI Dock)

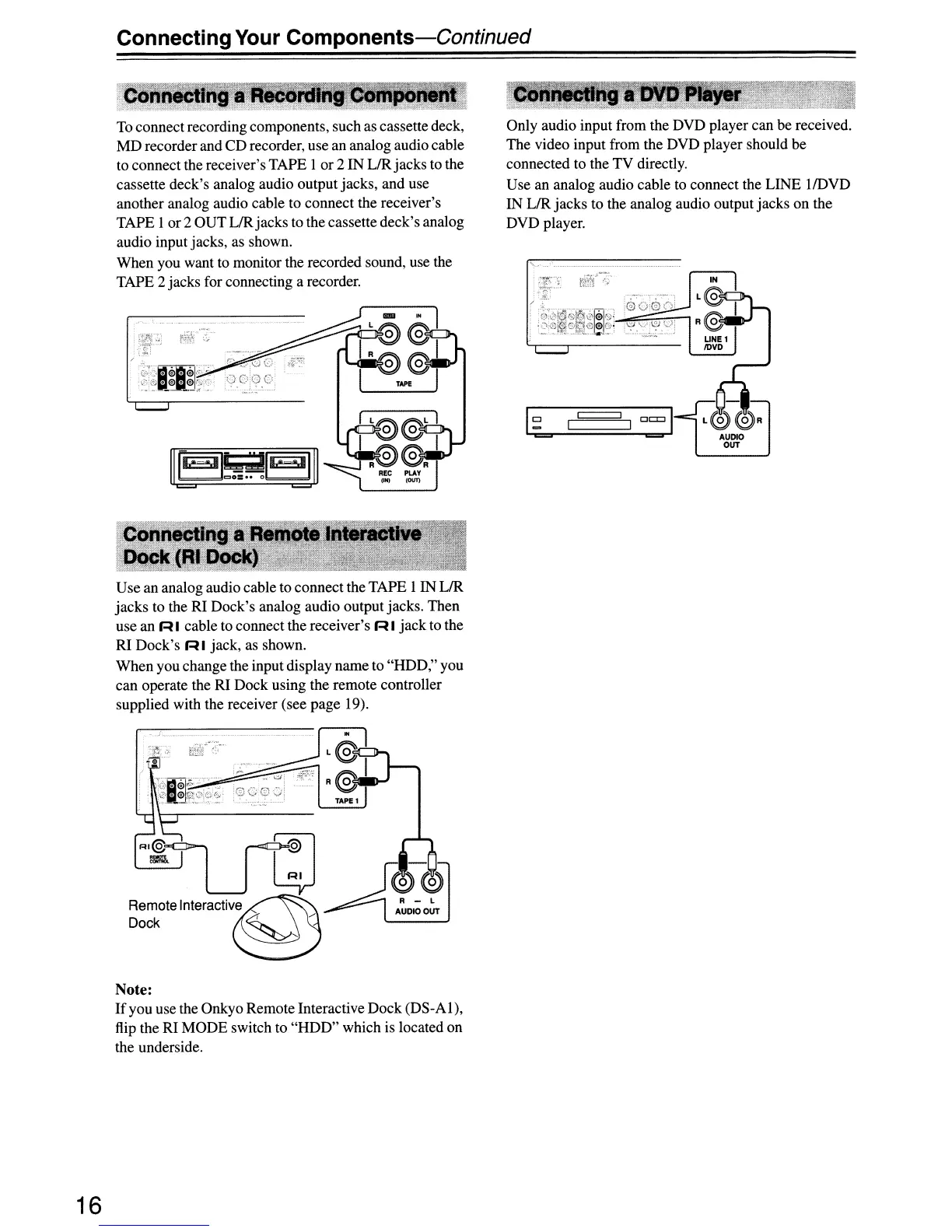

ConnectingYour Components-Continued
, ... _._" _ .. _. __ . __ ._----_. __ ._._------_._-
Only audio input from the DVD player can be received.
The video input from the DVD player should be
connected to the TV directly.
Use an analog audio cable to connect the LINE IIDVD
IN LIR jacks to the analog audio output jacks on the
DVD player.
=
--
1==
To connectrecording components, such as cassette deck,
MD recorder and CD recorder, use an analog audio cable
to connect the receiver's TAPE I or 2 IN LIR jacks to the
cassette deck's analog audio output jacks, and use
another analog audio cable to connect the receiver's
TAPE I or 2 OUTLlRjacks to the cassette deck's analog
audio input jacks, as shown.
When you want to monitor the recorded sound, use the
TAPE 2 jacks for connecting a recorder.
Use an analog audio cable to connectthe TAPE I IN LIR
jacks to the RI Dock's analog audio output jacks. Then
use an R I cable to connect the receiver's R I jack to the
RI Dock's RI jack, as shown.
When you change the input display nameto "HDD," you
can operate the RI Dock using the remote controller
supplied with the receiver (see page 19).
Note:
If you use the Onkyo Remote Interactive Dock (DS-Al),
flip the RI MODE switch to "HDD" which is located on
the underside.
16
