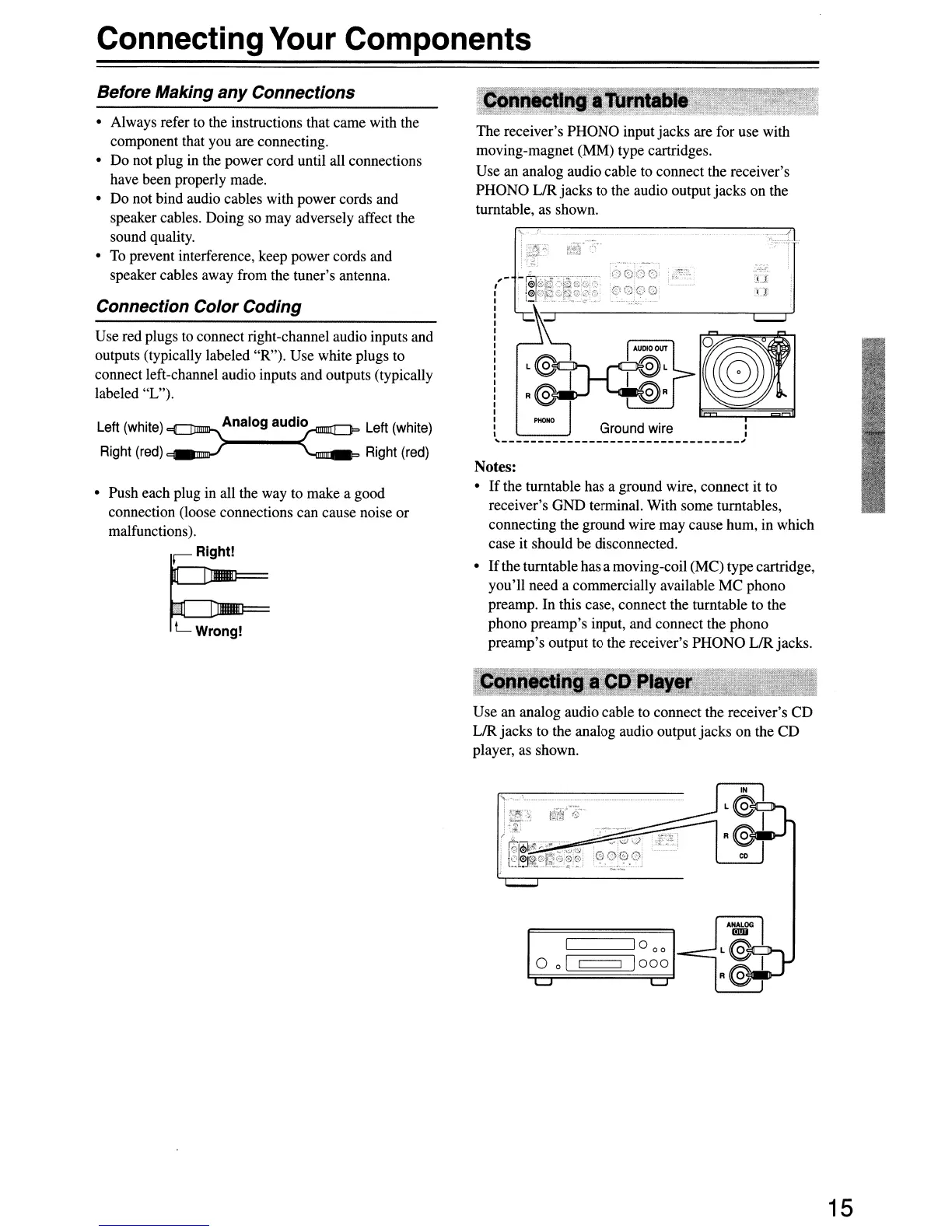

Connecting Your Components
The receiver's PHONO input jacks are for use with
moving-magnet (MM) type cartridges.
Use an analog audio cable to connect the receiver's
PHONO LIR jacks to the audio output jacks on the
turntable, as shown.
Ground wire
PftONO
Notes:
•
If
the turntable has a ground wire, connect it to
receiver's GND terminal. With some turntables,
connecting the ground wire may cause hum, in which
case it should be disconnected.
•
If
the turntable has a moving-coil
(Me)
type cartridge,
you'll need a commercially available
Me
phono
preamp.
In
this case, connect the turntable to the
phono preamp's input, and connect the phono
preamp's output to the receiver's PHONO LIR jacks.
Left (white)
....,-",""",......Analog
audi°r'lWll"-l....-r
Left (white)
Right
(red)
Right (red)
Before
Making
any Connections
Connection Color
Coding
• Always refer
to
the instructions that came with the
component that you are connecting.
• Do not plug in the power cord until all connections
have been properly made.
• Do not bind audio cables with power cords and
speaker cables. Doing so may adversely affect the
sound quality.
To
prevent interference, keep power cords and
speaker cables away from the tuner's antenna.
Use red plugs
to
connect right-channel audio inputs and
outputs (typically labeled "R"). Use white plugs to
connect left-channel audio inputs and outputs (typically
labeled "L").
• Push each plug in all the way
to
make a good
connection (loose connections can cause noise or
malfunctions
).
~R~:i
LWrong!
I 10
00
o 0 I
c::::=::J
1000
15
