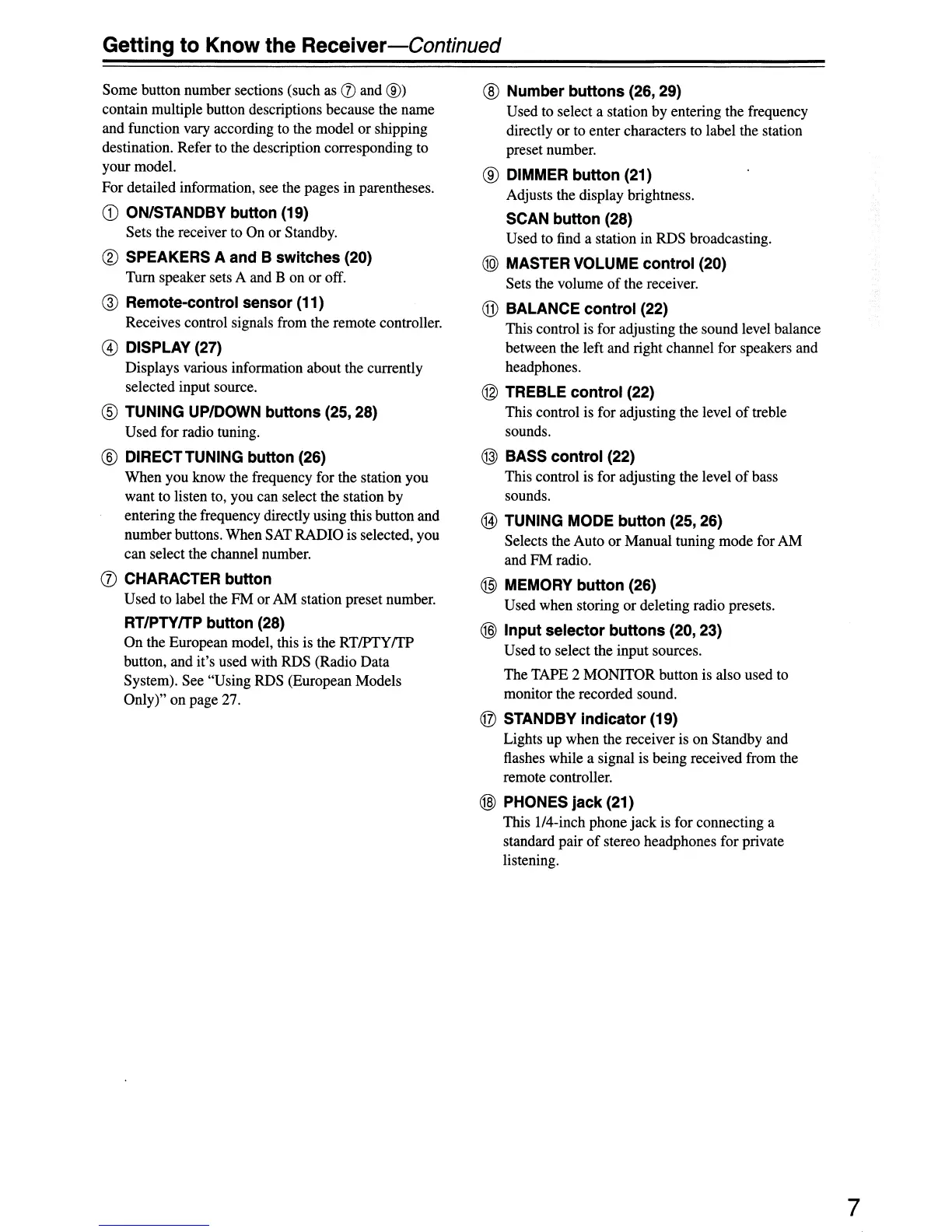

Getting to Know the Receiver-Continued
Some button number sections (such as
(J)
and @)
contain multiple button descriptions because the name
and function vary according to the model
or
shipping
destination. Refer to the description corresponding to
your model.
For detailed information, see the pages in parentheses.
CD
ON/STANDBY
button
(19)
Sets the receiver to On
or
Standby.
®
SPEAKERS
A
and
B
switches
(20)
Turn speaker sets A and B on or off.
@ Remote-control
sensor
(11)
Receives control signals from the remote controller.
@
DISPLAY
(27)
Displays various information about the currently
selected input source.
@)
TUNING
UP/DOWN
buttons
(25,
28)
Used for radio tuning.
® DIRECT
TUNING
button
(26)
When you know the frequency for the station you
want to listen to, you can select the station
by
entering the frequency directly using this button and
number buttons. When SAT RADIO is selected, you
can select the channel number.
(j)
CHARACTER
button
Used to label the
FM
or
AM station preset number.
RT/PTYITP
button
(28)
On
the European model, this is the RTiPTY
ffP
button, and it's used with RDS (Radio Data
System). See "Using RDS (European Models
Only)" on page 27.
®
Number
buttons
(26,
29)
Used to select a station by entering the frequency
directly
or
to enter characters to label the station
preset number.
®
DIMMER
button
(21)
Adjusts the display brightness.
SCAN
button
(28)
Used to find a station in RDS broadcasting.
@)
MASTER
VOLUME
control
(20)
Sets the volume
of
the receiver.
@
BALANCE
control (22)
This control is for adjusting the sound level balance
between the left and right channel for speakers and
headphones.
@
TREBLE
control (22)
This control is for adjusting the level
of
treble
sounds.
@
BASS
control (22)
This control is for adjusting the level
of
bass
sounds.
@
TUNING
MODE
button
(25,
26)
Selects the Auto
or
Manual tuning mode for AM
and FM radio.
@
MEMORY
button
(26)
Used when storing
or
deleting radio presets.
@ Input selector buttons
(20,
23)
Used to select the input sources.
The TAPE 2 MONITOR button is also used to
monitor the recorded sound.
@
STANDBY
indicator (19)
Lights up when the receiver is on Standby and
flashes while a signal is being received from the
remote controller.
@
PHONES
jack (21)
This 1I4-inch phone
jack
is for connecting a
standard pair
of
stereo headphones for private
listening.
