Connecting Your Components —Continued
Notes:
• The AV receiver must be turned on for recording. Recording is not possible while it’s on Standby.
• If you want to record directly from your TV or another video source without going through the AV receiver, connect
the audio and video outputs from your TV or other video component directly to the recording VCR/DVR’s audio and
video inputs. See the manuals supplied with your TV or VCR/DVR for details.
•Video signals connected to composite video inputs can only be recorded via the VCR/DVR OUT V jack. So if your
source TV or VCR is connected to a composite video input, the recording VCR/DVR must be connected to the
VCR/DVR OUT V jack. Likewise, video signals connected to S-Video inputs can only be recorded via the VCR/DVR
OUT S jack. So if your source TV or VCR is connected to an S-Video input, the recording VCR/DVR must be
connected to the VCR/DVR OUT S jack.
Connecting a VCR or DVR for Recording
Connection AV receiver Signal flow VCR or DVD recorder Picture quality
VCR/DVR OUT S
⇒
S-Video input
Better
VCR/DVR OUT V
⇒
Composite video input Standard
VCR/DVR OUT L/R
⇒
Audio L/R input

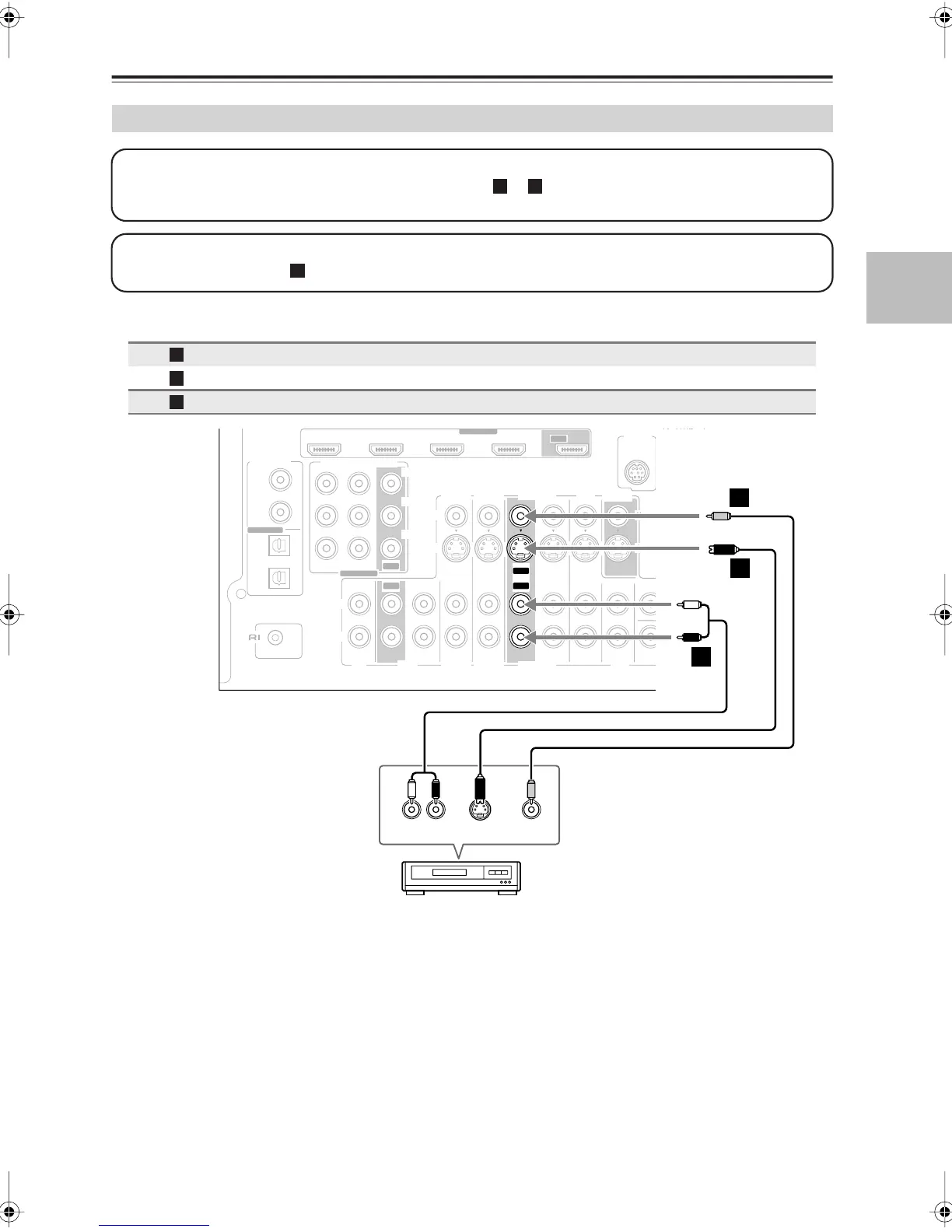

Step 1: Video Connection
Choose a video connection that matches your VCR or DVR ( or ), and then make the connection. The video
source to be recorded must be connected to the AV receiver via the same type of connection.
A
B
Step 2: Audio Connection
Make the audio connection .
a
A
B
a
R
L
PRE OUT
ZONE 2
LINE OUT
ANTENNA
FM
AM
75
REMOTE
CONTROL
COAXIAL
OPTICAL
1
(DVD)
2
(CBL/SAT)
1
(GAME/TV)
2
(CD)
DIGITAL IN
ASSIGNABLE
IN 1(DVD)IN 2
COMPONENT VIDEO
Y
C
B/PB
CR/PR
ASSIGNABLE
IN 1
IN 2
IN 3
IN 4
ASSIGNABLE
L
R
SURR BACK SPEAKERS
SURR
Bi-AMP for FRONT SPEAKERS
R
L
R
L
IN IN IN
IN
IN
IN
IN
IN IN
SUB
WOOFER
FRONT SURR
SURR BACK
CENTER
CBL/SAT GAME/TV
GAME/TV
CBL/SAT
VCR/DVR
VCR/DVR
DVDTAPECD
DVD
MONITOR
OUT
S
V
S
V
SIRIUS
(DVD) (GAME/TV) (CBL/SAT) (VCR/DVR)
SUB
WOOFER
OUT
OUT
OUT
OUT
OUT
S VIDEO
IN
AUDIO
IN
VIDEO
IN
LR
A
a
B
VCR or DVR
