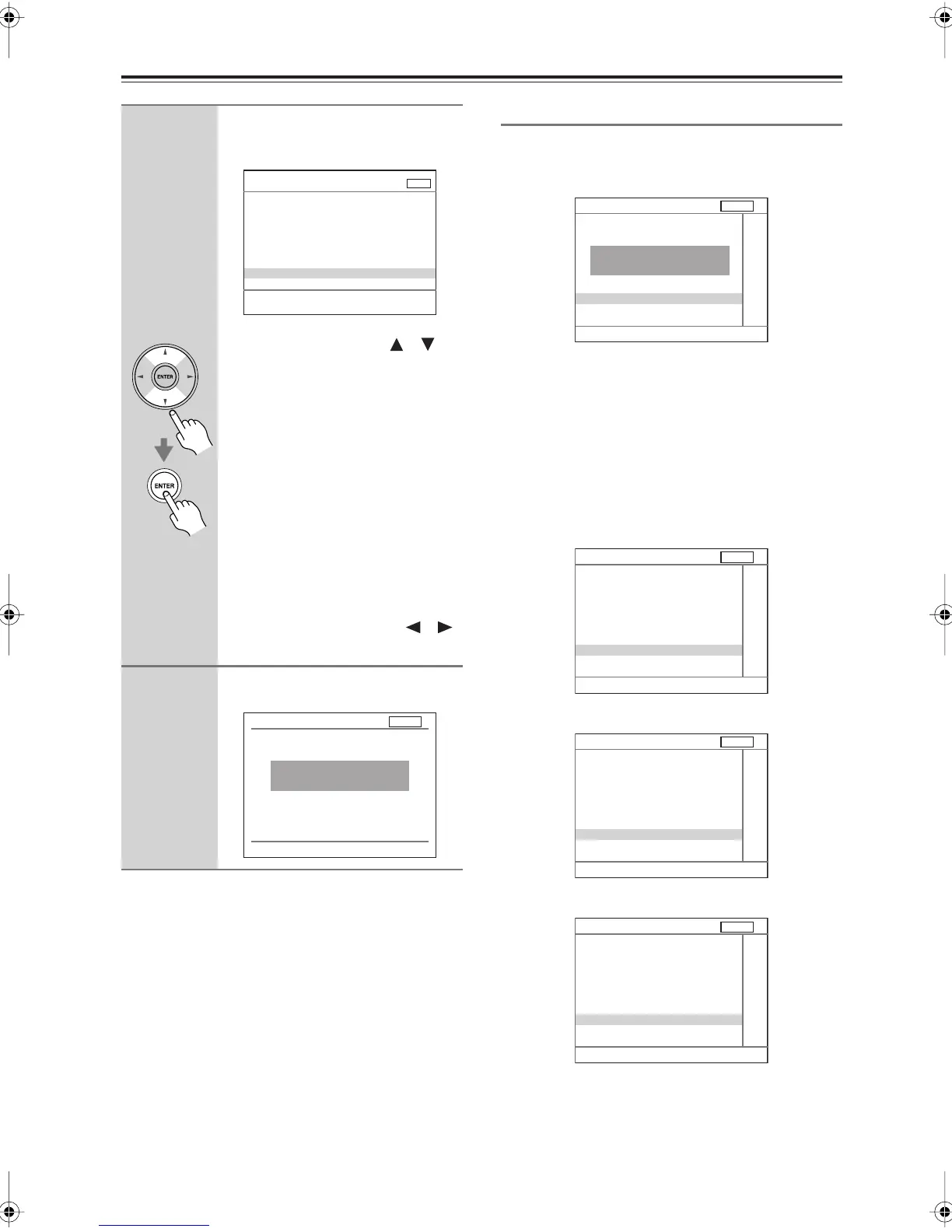

First Time Setup —Continued
Note:
• When the automatic speaker setup is complete, the
Equalizer Settings (page 76) will be set to “Audyssey.”
Error Messages
While the automatic speaker setup is in progress, one of
the following error messages may appear:
❏ Ambient noise is too high
This message appears if the background noise is too
loud and the measurements cannot be performed
properly.
Remove the source of the noise and try again.
Retry : Return to the measured point immediately
before and start set up again.
Cancel : Cancel the automatic speaker setup.
❏ Speaker Detect Errors
One of the front speakers has not been detected.
One of the surround speakers has not been detected.
The surround back speakers have been detected but
the surround speakers haven’t.
7
When the calculations are com-
plete, the following screen
appears.
Use the Up and Down [ ]/[ ]
buttons to select an option, and
then press [ENTER].
The options are:
Save:
Save the calculated settings and exit
the automatic speaker setup.
Cancel:
Cancel the automatic speaker setup.
Note:
•You can view the calculated settings
for the speaker configuration,
speaker distances, and speaker levels
by using the Left and Right [ ]/[ ]
buttons.
8
Disconnect the speaker setup
microphone.
Auto Speaker Setup
Review Speaker configuration
Subwoofer : No
Front : 40Hz
Center : 40Hz
Surround : 40Hz
Surr Back : 40Hz
Surr Back Ch : 1ch
Save
Cancel
AUDYSSEY
Auto Speaker Setup
AUDYSSEY
Please unplug microphone.
Auto Speaker Setup
AUDY SSEY
Ambient noise is too high.
Retry
Cancel
Auto Speaker Setup
AUDYSSEY
Cancel
Retry
- - - - - Speaker Detect Error - - - - -
: Yes
: ---
: ---
: Yes
: No
: ---
: ---
: ---
FL
SL
SBL
C
FR
SR
SBR
SW
Auto Speaker Setup
AUDYSSEY
Cancel
Retry
- - - - - Speaker Detect Error - - - - -
: Yes
: ---
: ---
: Yes
: No
: ---
: ---
: Yes
FL
SL
SBL
C
FR
SR
SBR
SW
Auto Speaker Setup
AUDYSSEY
Cancel
Retry
- - - - - Speaker Detect Error - - - - -
: Yes
: ---
: ---
: Yes
No
: Yes
:
: Yes
: ---
FL
SL
SBL
C
FR
SR
SBR
SW
