Connecting the AV receiver—Continued
Note:
When it is connected at the same time as AUX INPUT AUDIO L/R terminal, the input of PORTABLE is given priority
to and outputted.

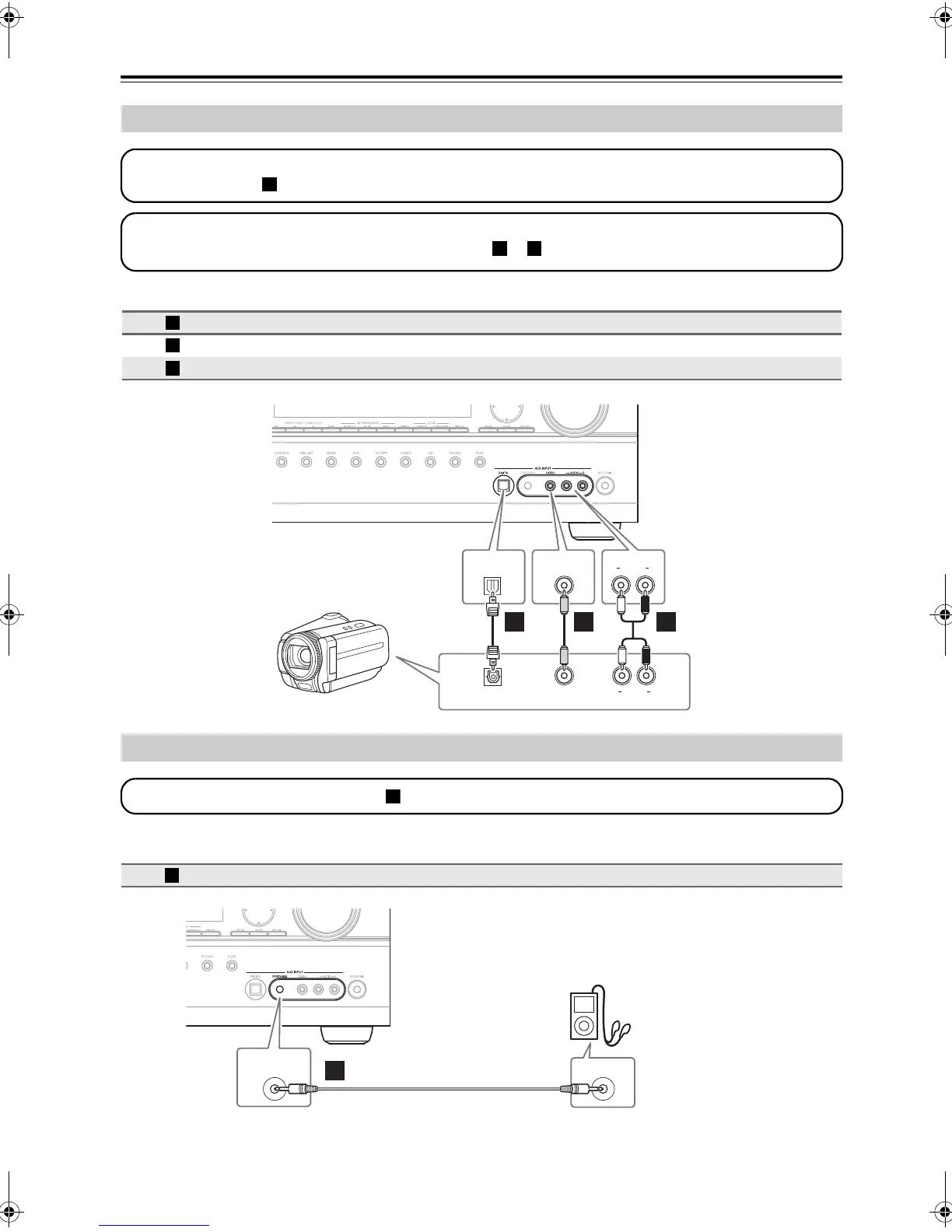

Connecting a Camcorder or Other Device
Connection AV receiver Signal flow Camcorder etc.
AUX INPUT VIDEO ⇐ Composite video output
AUX INPUT L-AUDIO-R ⇐ Analog audio L/R output
AUX INPUT DIGITAL ⇐ Digital optical output
Step 1: Video Connection
Make the connection .
A
Step 2: Audio Connection
Choose an audio connection that matches your camcorder ( or ), and then make the connection.
a b
A
a
b
AUDIO
OUT
VIDEO
OUT
LR
VIDEO
AUDIO
LR
AUX INPUTAUX INPUT
OPTICAL
OUT
DIGITAL
AUX INPUT
Ab
a
Camcorder etc.
Connecting a Portable Audio player
Connection AV receiver Signal flow Portable Audio Player
AUX INPUT PORTABLE ⇐ Analog audio Line output
Step 1: Make the audio connection .
a
a
AUX INPUT
PORTABLE
AUDIO LINE OUT
a
Portable
Audio Player
